Ignition Cable: Testing and Inspection

HIGH-TENSION CORDS INSPECTION

Inspect high-tension cord resistance.

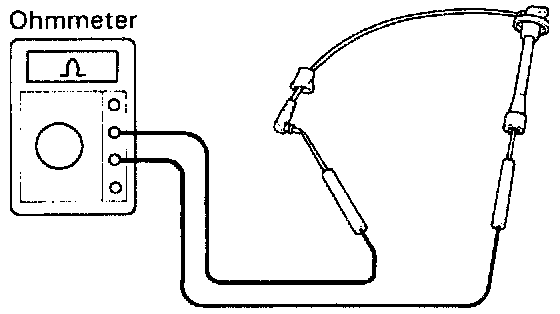

Using an ohmmeter. measure the resistance.

Maximum resistance: 25 K ohm per cord

If the resistance is greater than maximum, check the terminals. If necessary, replace the high - tension cord.
