Spark Plug: Service and Repair
SPARK PLUG REMOVAL1. Remove No.2 PCV hose.
2. Remove air cleaner hose.
3. Disconnect throttle cable.
4. Remove No.2 and No.3 cylinder head covers.

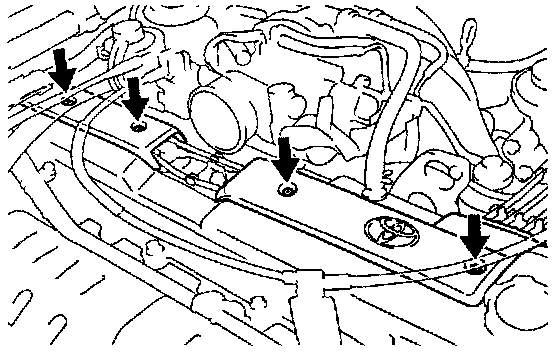

Remove the 4 bolts and head covers,
5. Disconnect high-tension cords from spark plugs.

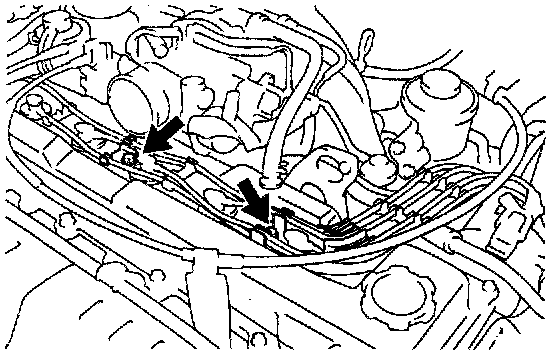

(a) Remove the 2 mounting bolts of the No.1 and No.2 cord clamps.
(b) Disconnect the high - tension cords at the rubber boot.
Do not pull on the cords.
NOTICE: Pulling on or bending the cords may damage the conductor inside.
6. Remove spark plugs.

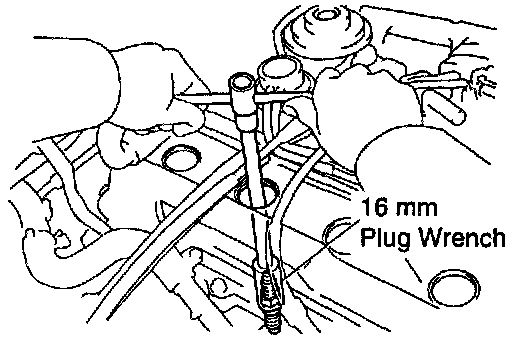

Using a 16 mm plug wrench, remove the spark plug.
SPARK PLUG INSTALLATION
1. Install spark plugs.
Using a 16 mm plug wrench, install the spark plug.
Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)
2. Reconnect high-tension cords to spark plugs.

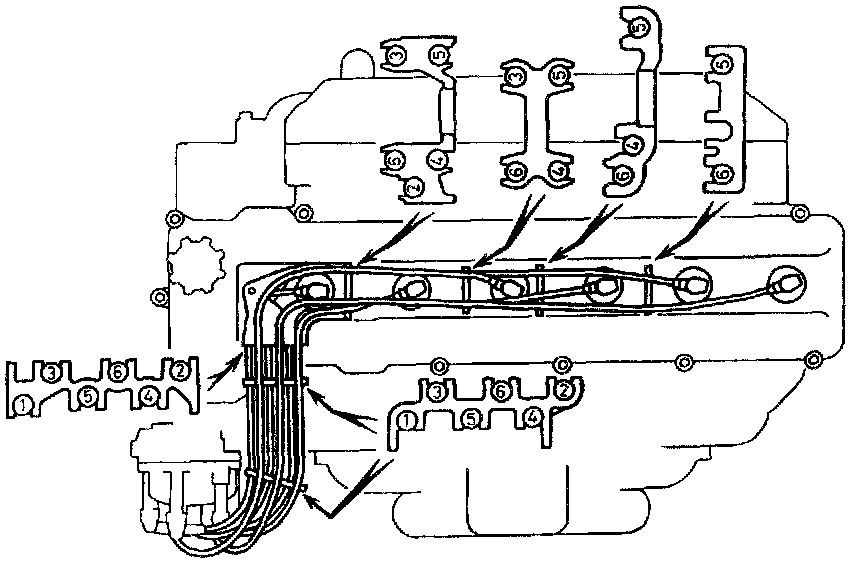

(a) Secure the high-tension cords with the cord clamps as shown in the illustration.
(b) Install the No.1 and No.2 cord clamps with the 2 bolts.
3. Install No.2 and No.3 cylinder head covers.
Install the head covers with the 4 bolts.
4. Connect throttle cable
5. Install air cleaner hose
Install the air cleaner hose with the 2 clamp bolts.
6. Install No.2 PCV hose.
