Pinout Values and Diagnostic Parameters

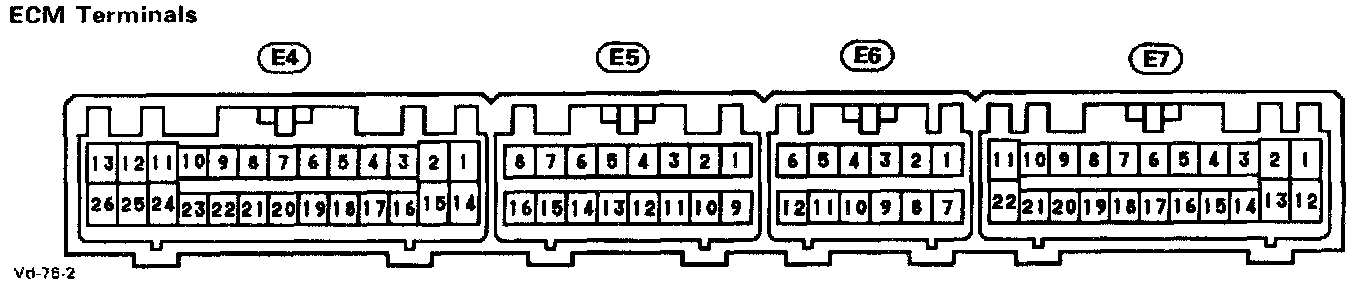

ECM TERMINAL IDENTIFICATION

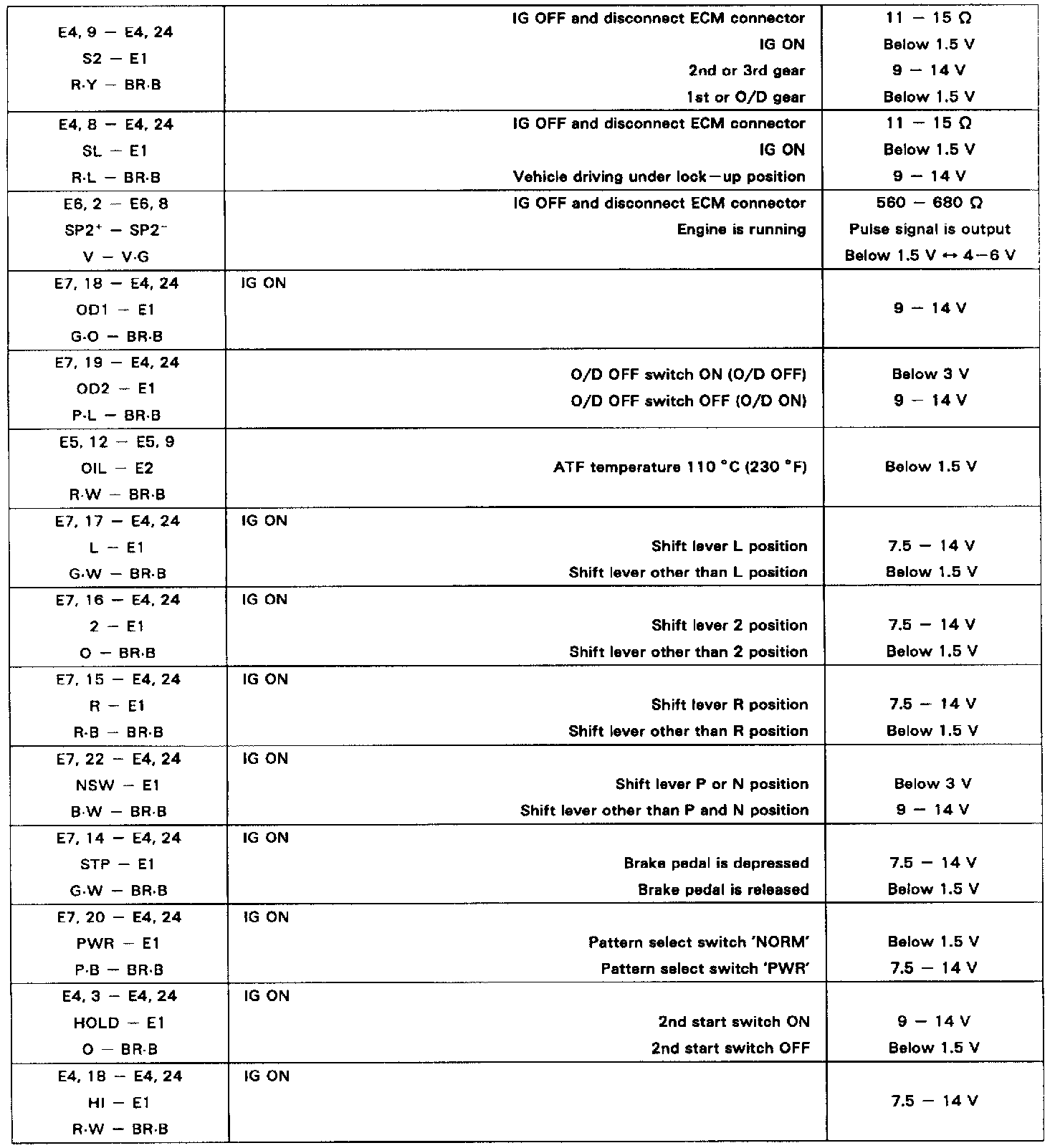

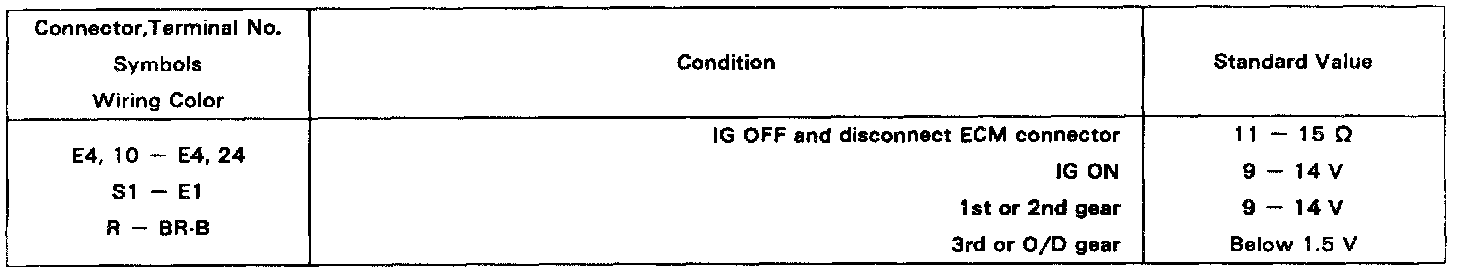

Standard Values Chart Part 1 Of 2:
STANDARD TERMINAL VALUES
