General Torque Specifications

TIGHTENING SPECIFICATIONS

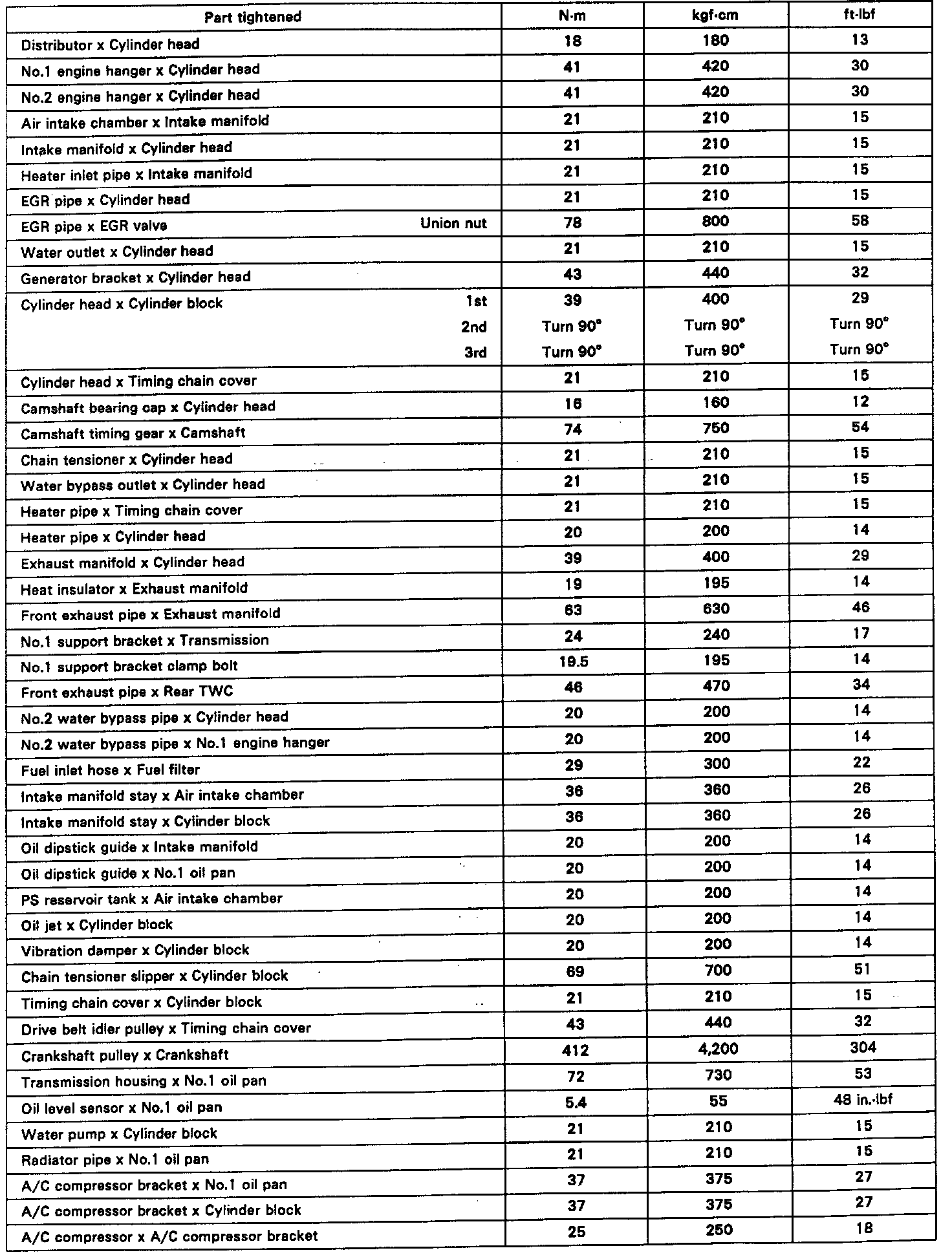

Torque Chart








Intake Manifold Tightening Specifications
Intake Manifold To Cylinder Head 21 Nm (15 ft. lbs.)
Intake Chamber Stay To Air Intake Chamber 36 Nm (26 ft. lbs.)
Intake Chamber Stay To Cylinder Block 36 Nm (26 ft. lbs.)


Oil Pump Tightening Specifications
Oil Pump (Timing Cover) To Cylinder Block 21 Nm (15 ft. lbs.)


TORQUE SEQUENCES

Camshaft Bearing Cap Removal and Installation Sequences
Proper removal and installation procedures are essential to camshaft durability and to avoid damage. Refer to Cylinder Head Assembly; Service and Repair for detailed camshaft removal and installation procedures.

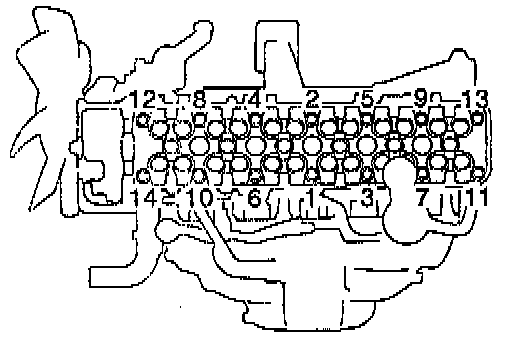

Cylinder Head Bolt Removal Sequence

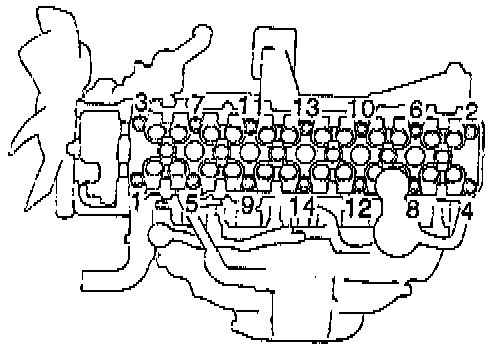

Cylinder Head Bolt Tightening Sequence




Cylinder Head Bolt Diameter
Standard Outside Diameter 10.85-11.00 mm (0.4272-0.4331 in.)
Minimum Outside Diameter 10.6 mm (0.417 in)

Note: If any of the cylinder head bolts does not meet the torque specification, replace the cylinder head bolt.


Main Bearing Cap Bolts Removal Sequence





Main Bearing Cap Bolts Tightening Sequence




Main Bearing Bolt Diameter
Standard Outside Diameter 10.85-11.00 mm (0.4272-0.4331 in.)
Minimum Outside Diameter 10.6 mm (0.417 in)


Drive Plate Bolt Removal Sequence

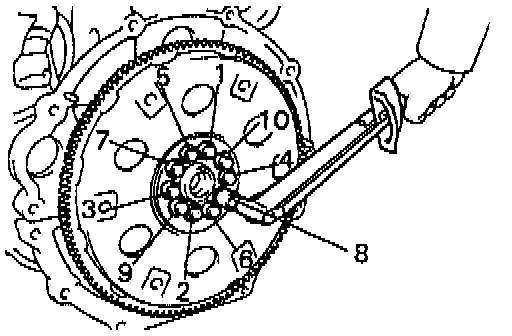

Drive Plate Bolt Tightening Sequence





See also: Refer to Diagrams/Exploded Views at component level.
