Home >> Toyota >> 1997 >> Previa Van DX 4WD L4-2438cc 2.4L DOHC SC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Speed Sensor, A/T

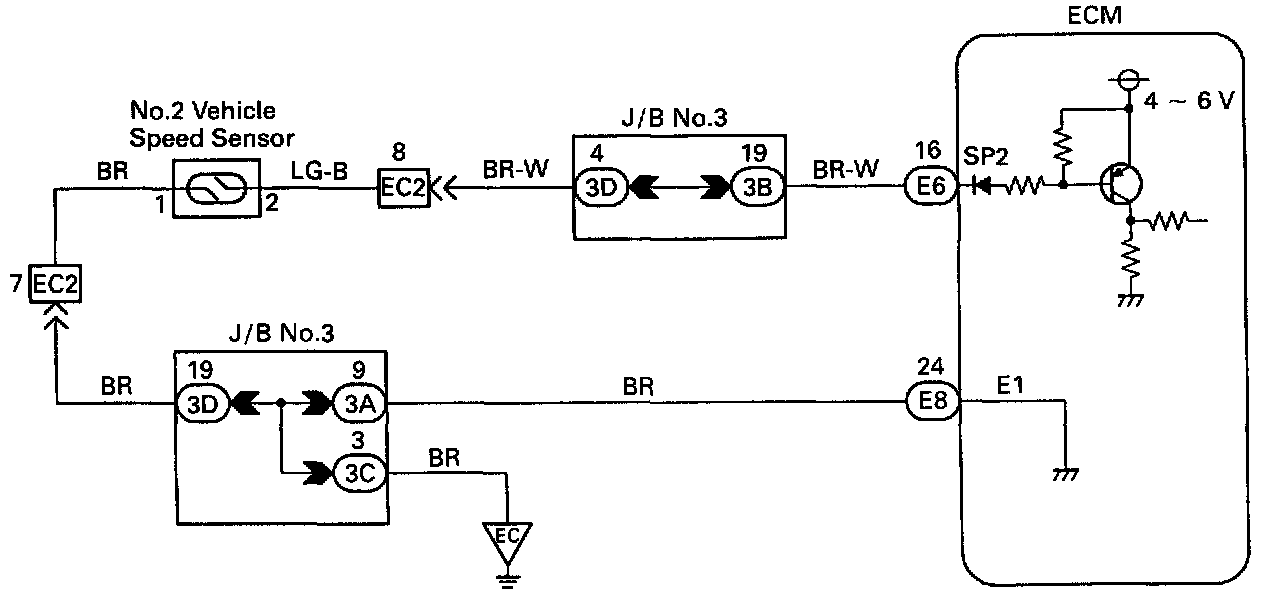

Transmission Speed Sensor, A/T
