Ground Points

Ground Points:

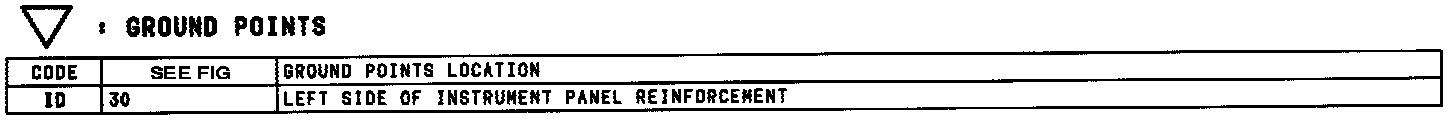

GROUND POINTS

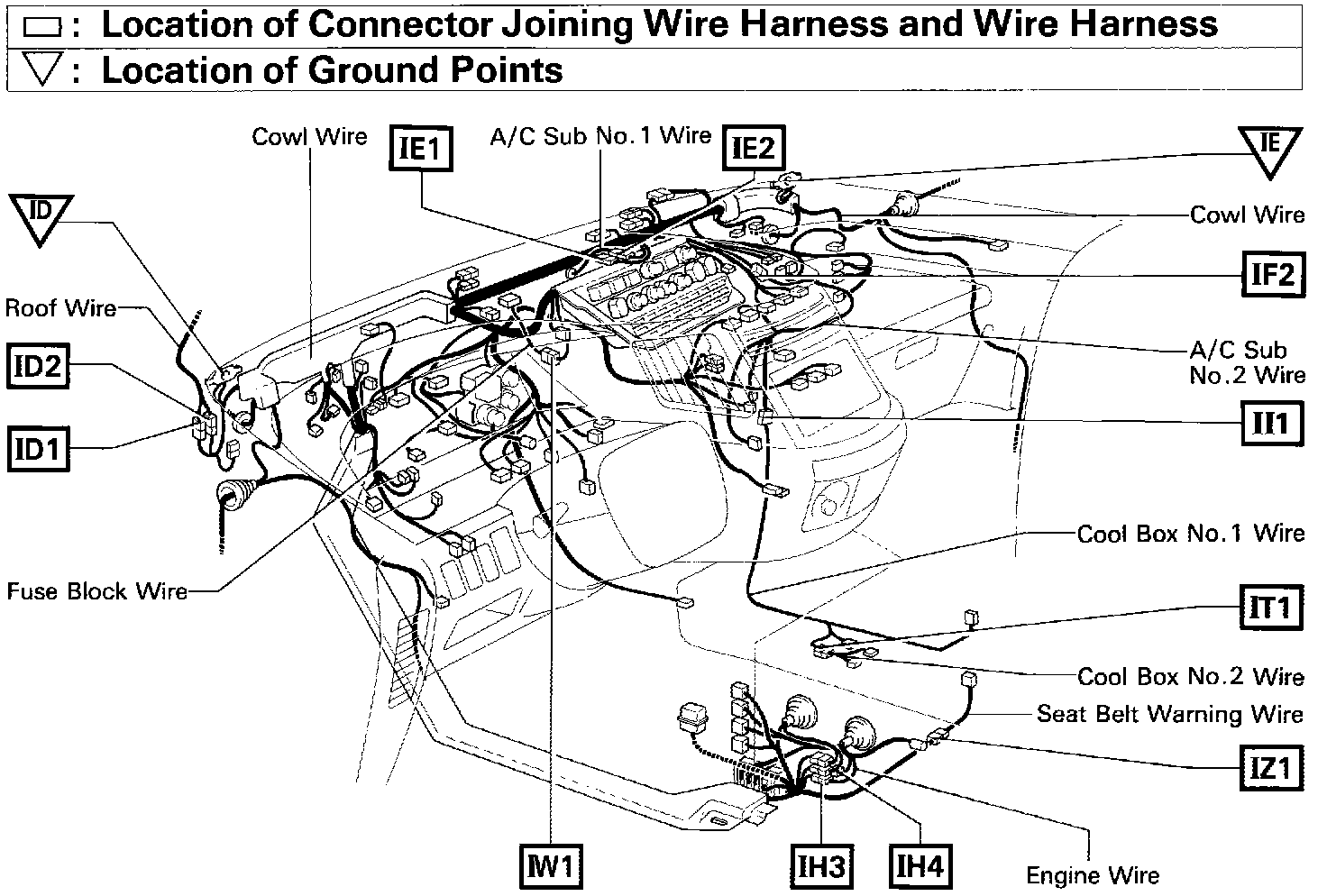

Location Of Connector Joining Wire Harness And Wire Harness Ground Points (Fig 30):




FIG 30
