Main Switch Circuit (Cruise Control Switch)

MAIN SWITCH CIRCUIT (CRUISE CONTROL SWITCH)


CIRCUIT DESCRIPTION
When the cruise control main switch is turned off, the cruise control does not operate.

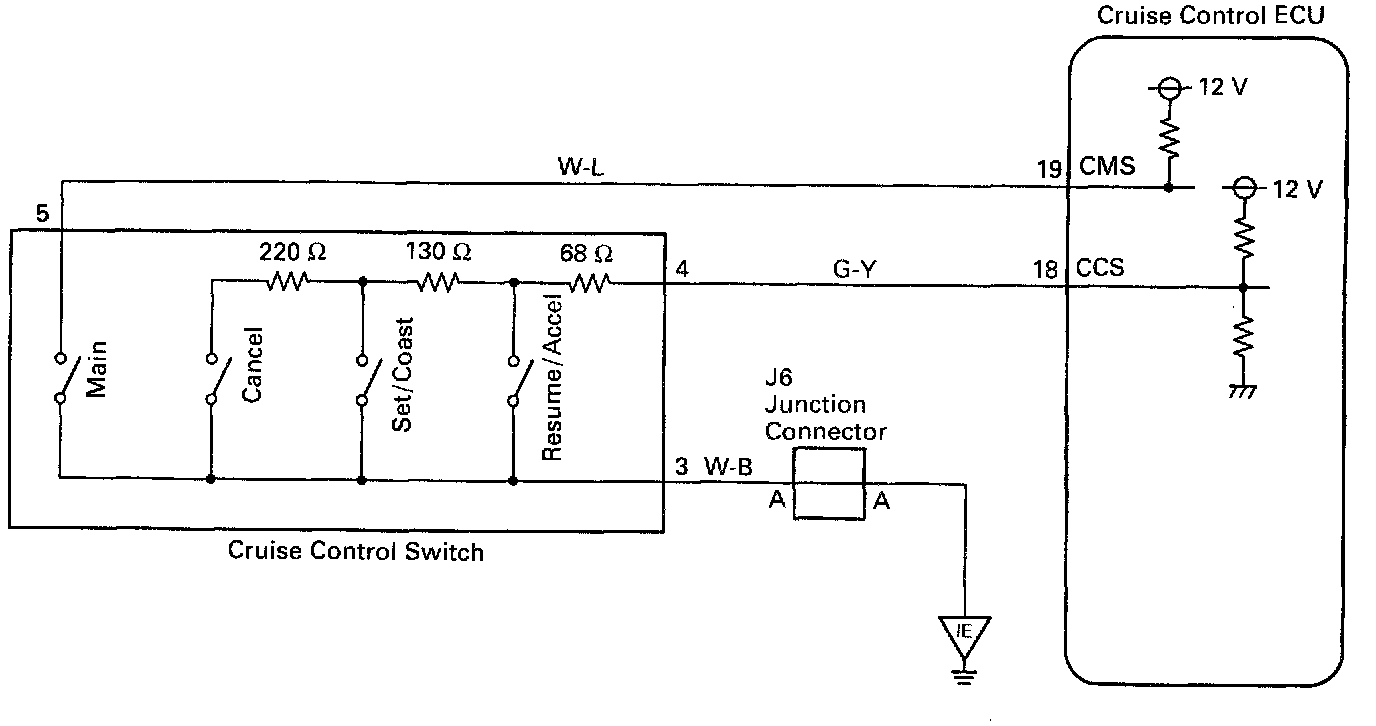

Main Switch Circuit:

WIRING DIAGRAM

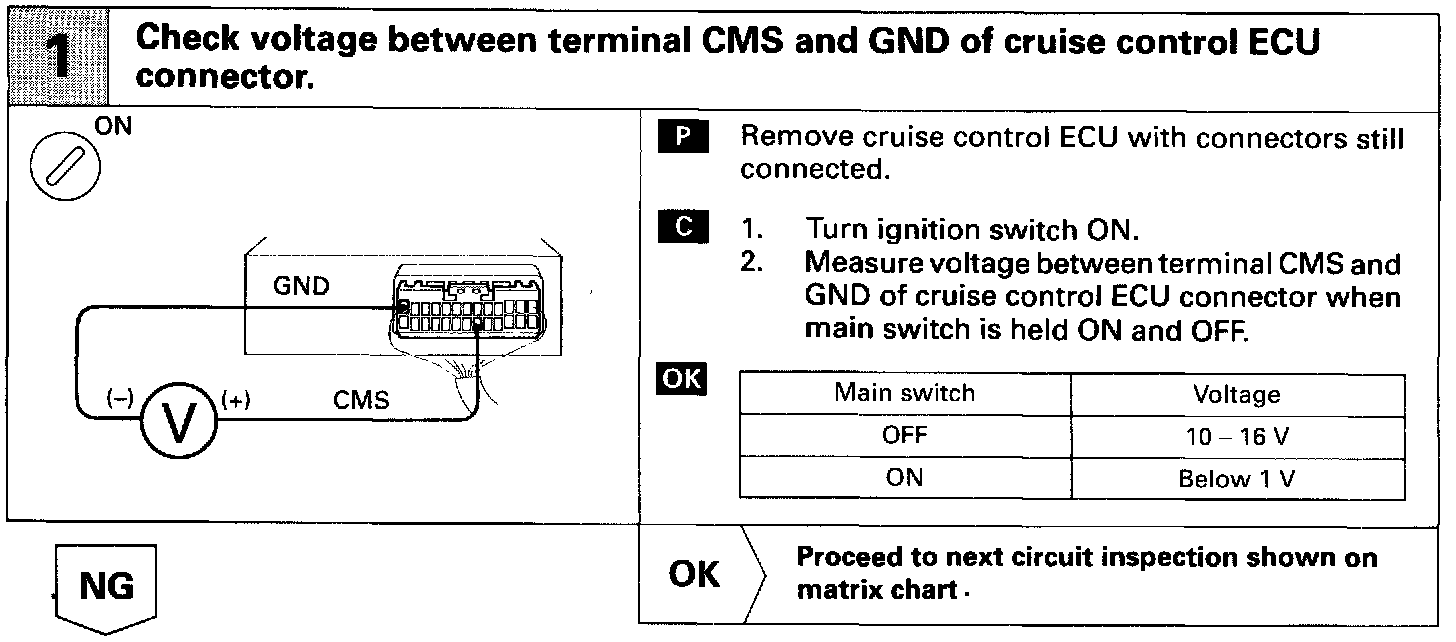

Inspection Procedure / Main Switch Circuit (1 Of 3):

Inspection Procedure / Main Switch Circuit (2 Of 3):

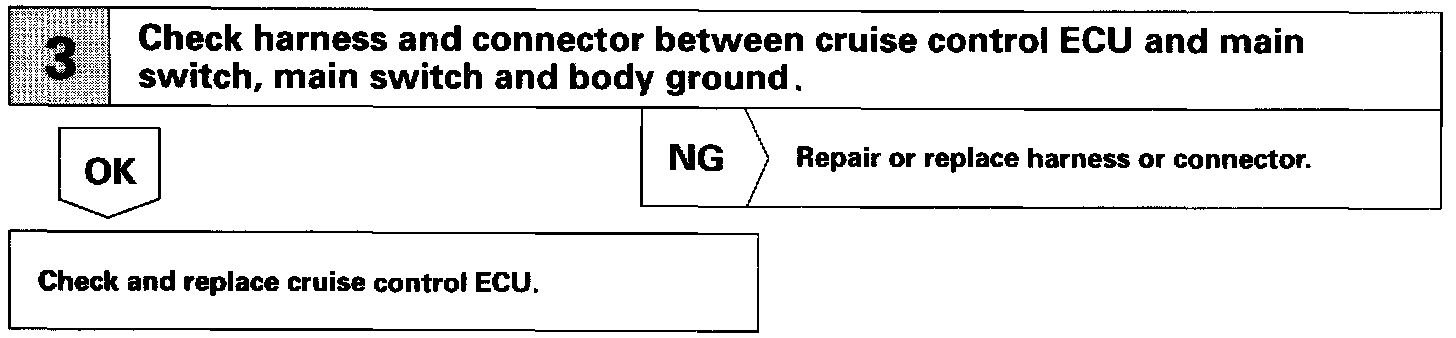

Inspection Procedure / Main Switch Circuit (3 Of 3):

INSPECTION PROCEDURE
