Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1997
>>
RAV4 2-Door 2WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>

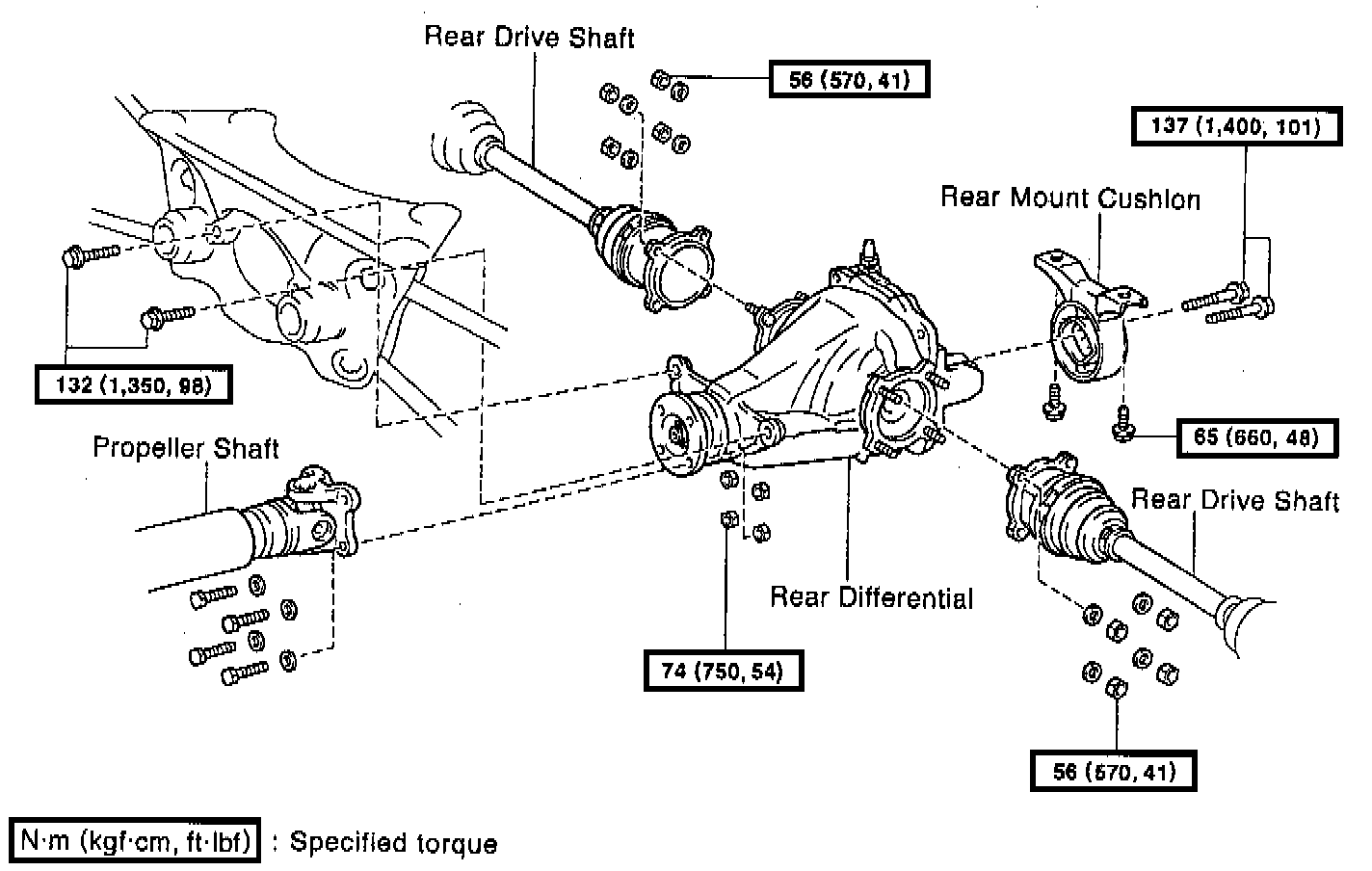

Rear Differential Replacement
Rear Differential Replacement
Rear Differential Removal:
