Compressor Speed Sensor: Service and Repair

REVOLUTION DETECTING SENSOR REMOVAL







1. REMOVE COMPRESSOR

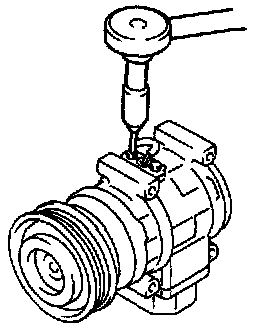

2. REMOVE REVOLUTION DETECTING SENSOR
a. Remove 2 bolts.

Torque: 6.0 N.m (60 kg.cm, 52 in.lb)

b. Remove the revolution detecting sensor.

REVOLUTION DETECTING SENSOR INSTALLATION
Installation is in the reverse order of removal.
