Control Assembly: Adjustments

CONTROL CABLE ADJUSTMENT






1. SET A/C CONTROL LEVER IN THESE CONDITIONS
a. Air inlet control lever at RECIRC position
b. Mode control lever at DEF position
c. Temperature control lever at COOL position

2. ADJUST AIR INLET CONTROL CABLE

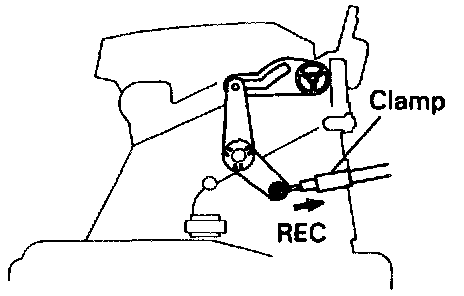

Set the air inlet damper on RECIRC position, install the control cable and lock clamp.







3. ADJUST MODE CONTROL CABLE

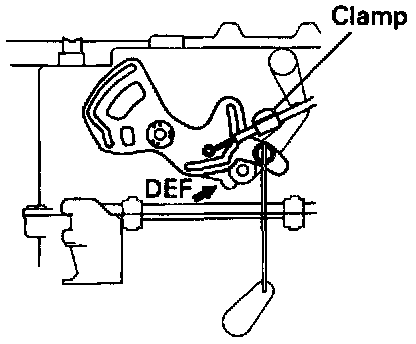

Set the mode damper on DEF position, install the control cable and lock the clamp.







4. ADJUST AIR MIX CONTROL CABLE

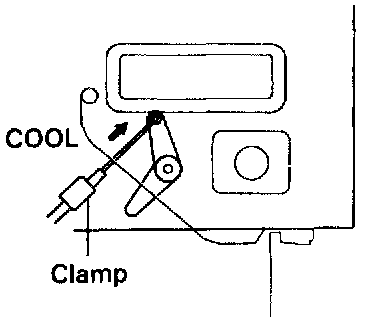

Set the air mix damper on COOL' position, install the control cable and lock the clamp.
