Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR COMPONENTS FOR REMOVAL AND INSTALLATION

CRANKSHAFT POSITION SENSOR REMOVAL

1. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR FROM GENERATOR DRIVE BELT ADJUSTING BAR
2. REMOVE NO.1 TIMING BELT COVER

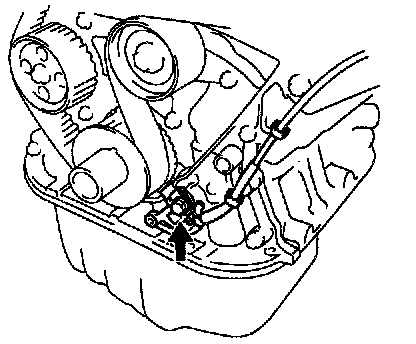

3. REMOVE CRANKSHAFT POSITION SENSOR
Remove the bolt and disconnect the crankshaft position sensor

CRANKSHAFT POSITION SENSOR INSTALLATION
1. INSTALL CRANKSHAFT POSITION SENSOR
Install the crankshaft position sensor with the bolt.

Torque: 9.5 N.m (95 kgf.cm, 82 in.lbf)

2. INSTALL NO.1 TIMING BELT COVER
3. CONNECT CRANKSHAFT POSITION SENSOR CONNECTOR TO GENERATOR DRIVE BELT ADJUSTING BAR
