Disassembly and Assembly

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY

DISTRIBUTOR DISASSEMBLY

1. REMOVE DISTRIBUTOR CAP
Remove the 2 bolts, distributor cap and packing.
2. REMOVE ROTOR
Remove the 2 screws and rotor.

DISTRIBUTOR ASSEMBLY

1. INSTALL ROTOR

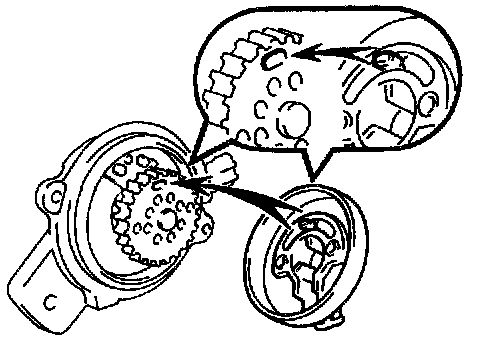

(a) Align the hollow of the signal rotor with the protrusion of the rotor.
(b) Install the rotor with the 2 screws.
2. INSTALL DISTRIBUTOR CAP

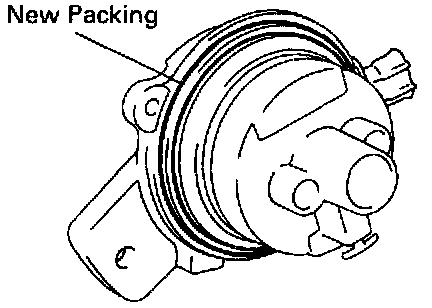

(a) Install a new packing to the distributor housing.
(b) Install the distributor cap with the 2 bolts.
