DISTRIBUTOR
INSPECTION

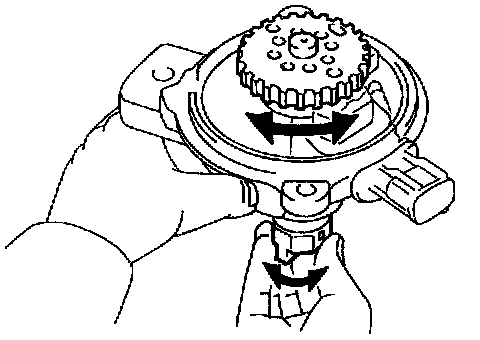

INSPECT SHAFT
Turn the shaft and check that it is not rough or worn, if it feels rough or worn, replace the distributor housing assembly.
