Camshaft

TIGHTENING SPECIFICATIONS
Camshaft Bearing Cap To Cylinder Head 19 Nm (14 ft. lbs.)


Install and uniformly tighten the bearing cap bolts, in several passes, in the applicable sequence shown.

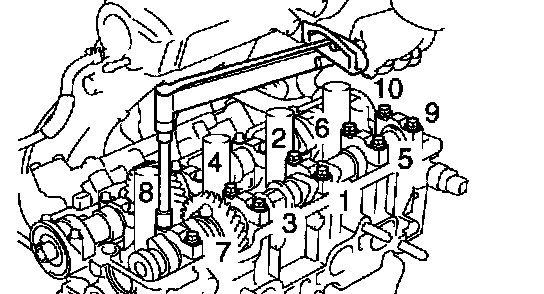

TIGHTENING SEQUENCE





Intake Sequence






Exhaust Sequence
