Relay Blocks

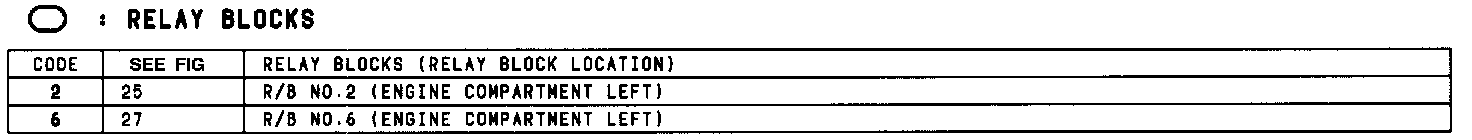

Relay Blocks:




RELAY BLOCKS

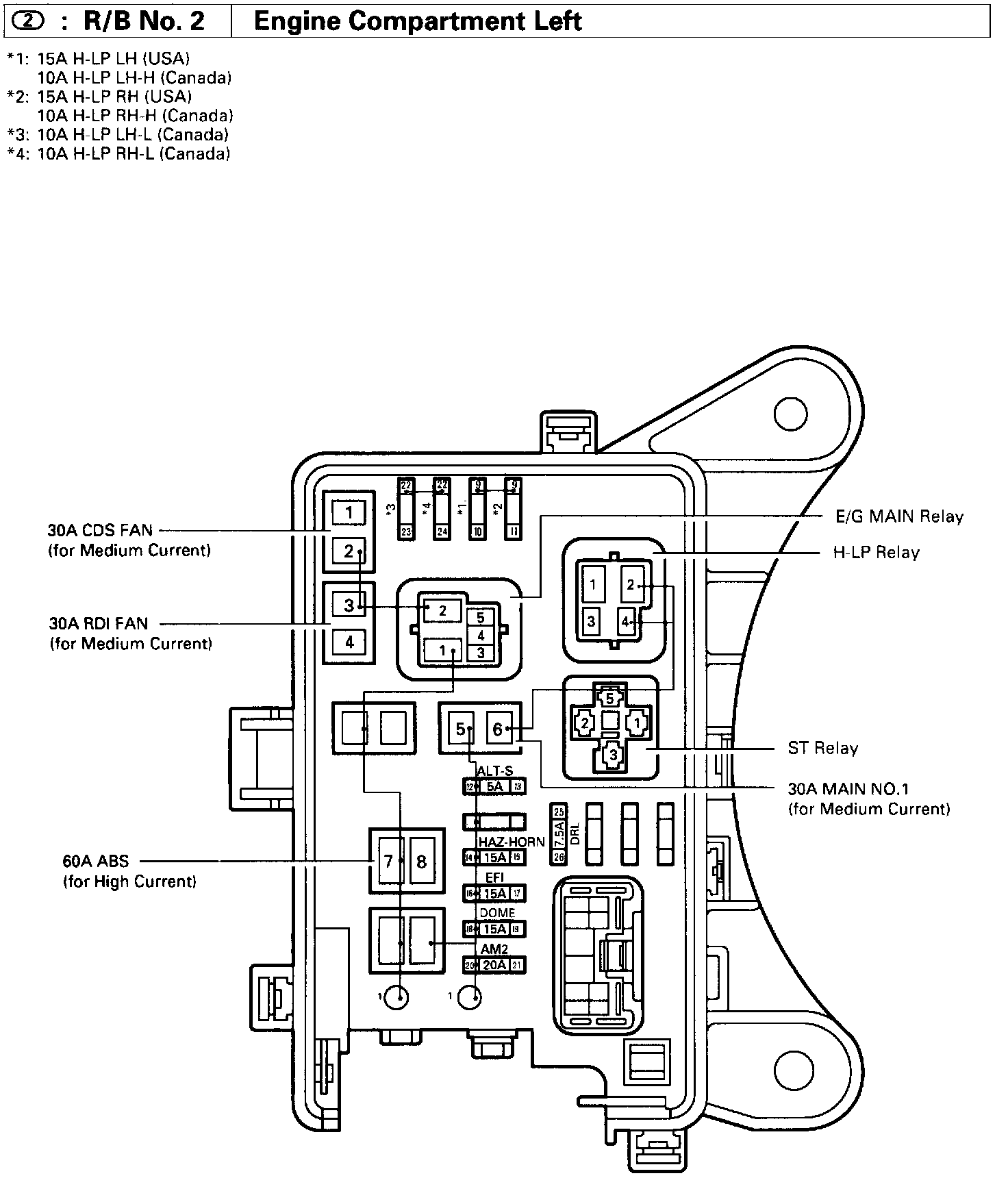

Locations-R/B No.2 Engine Compartment Left (Fig 25):




FIG 25

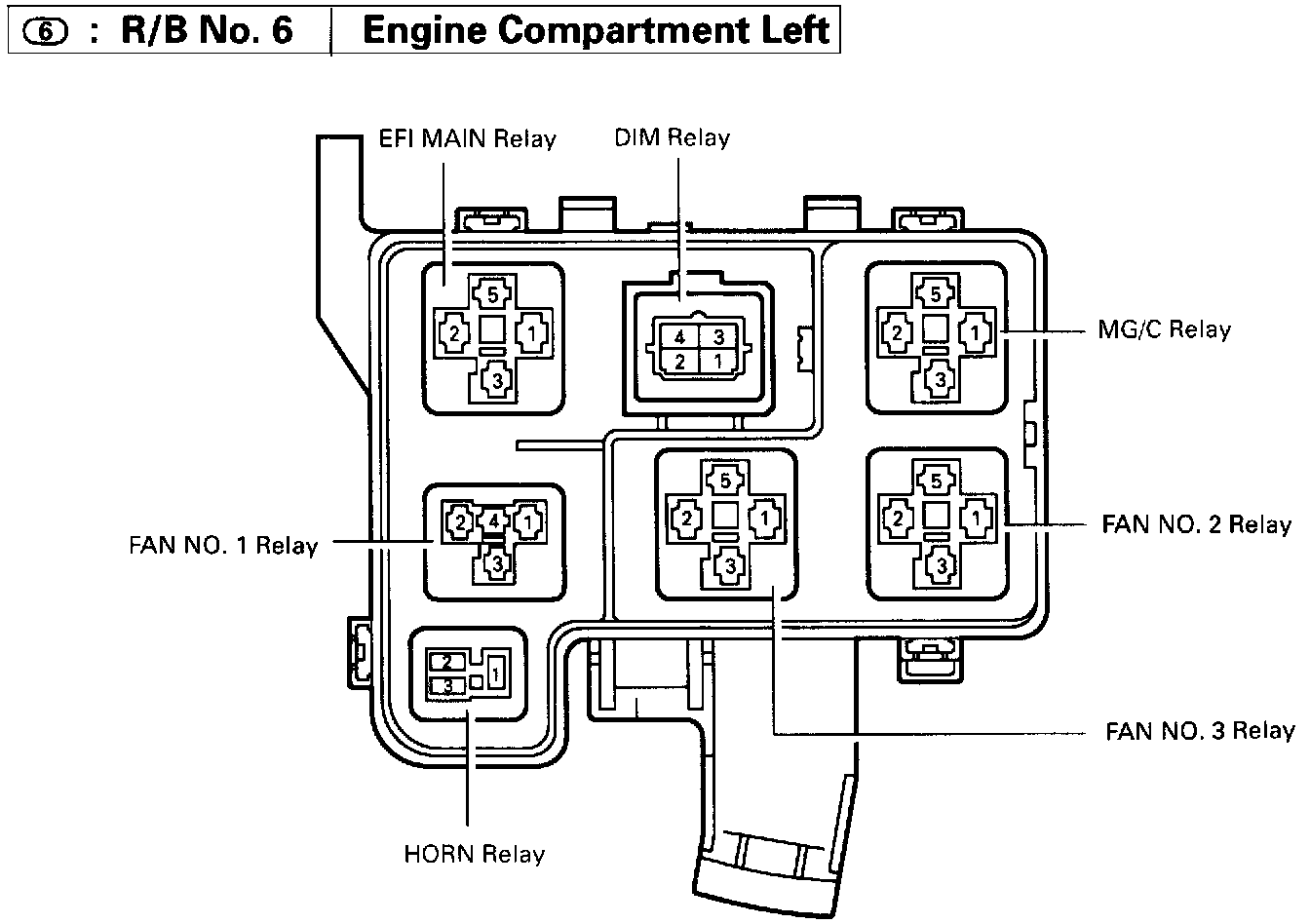

Locations-R/B No.6 Engine Compartment Left (Fig 27):




FIG 27
