Toyota
>>
1997
>>
Supra Liftback L6-2997cc 3.0L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Control Arm
>>
Front
Front

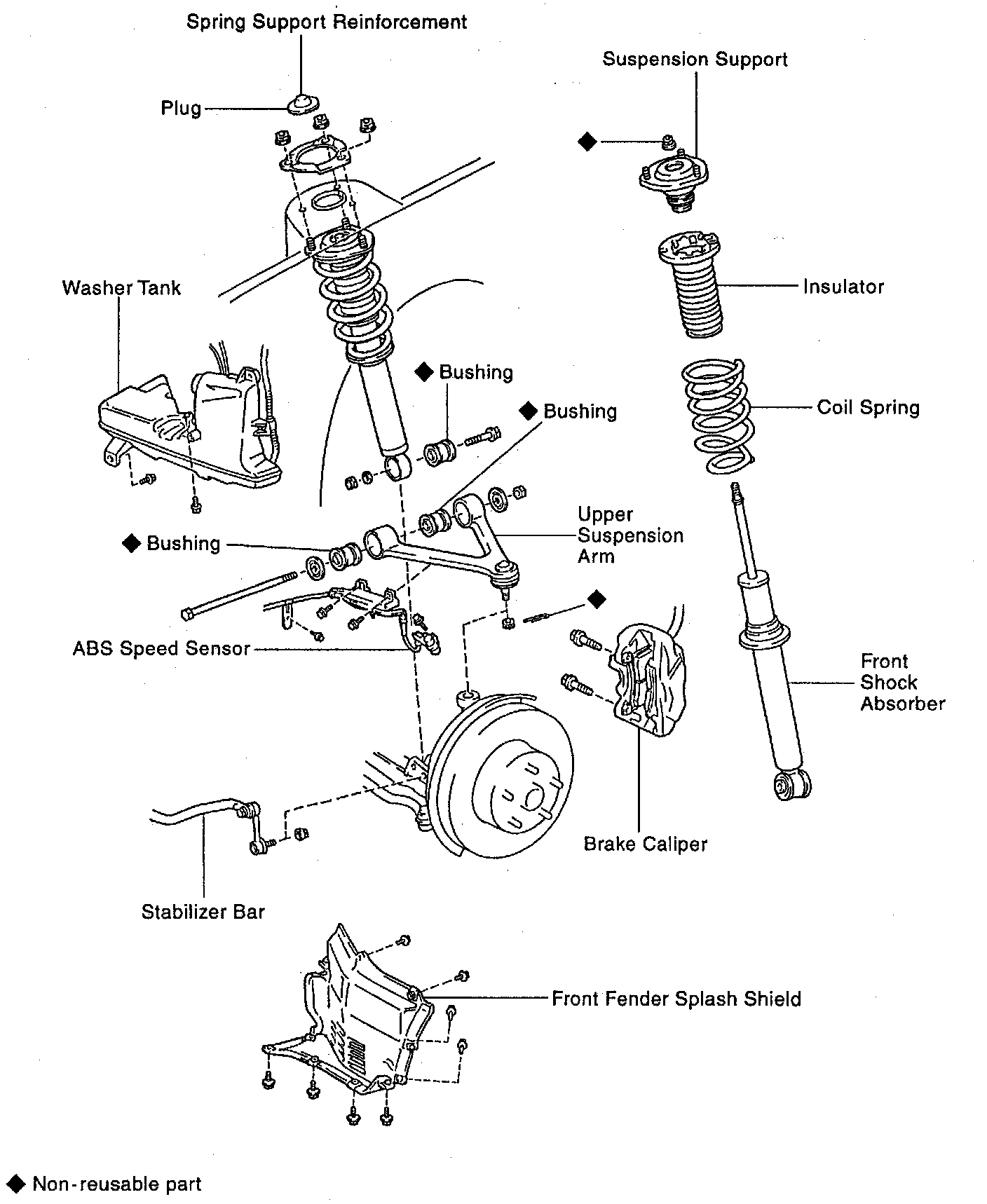

Front Upper Suspension / Shock Absorber, Coil Spring, Suspension Arm:
