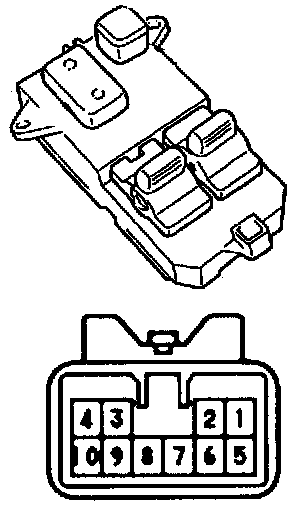

Power Window Switch / Master Switch

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY

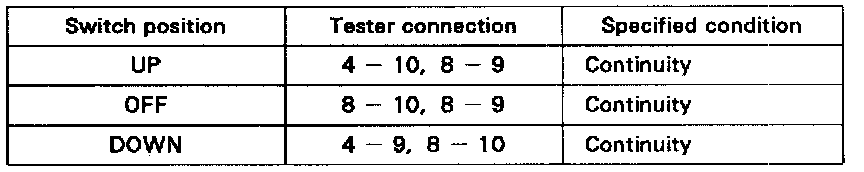

Driver's Switch

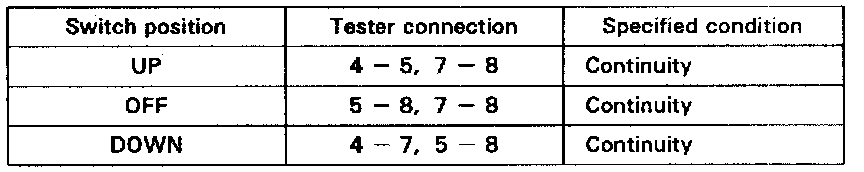

Passenger's Switch (Window unlock)

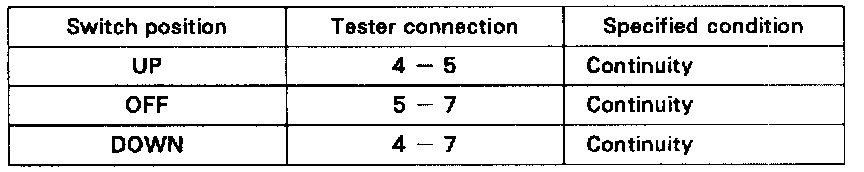

Passenger's Switch (Window lock)


If continuity is not as specified, replace the switch.
