Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1997
>>
Tacoma Regular Cab 2WD L4-2438cc 2.4L DOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

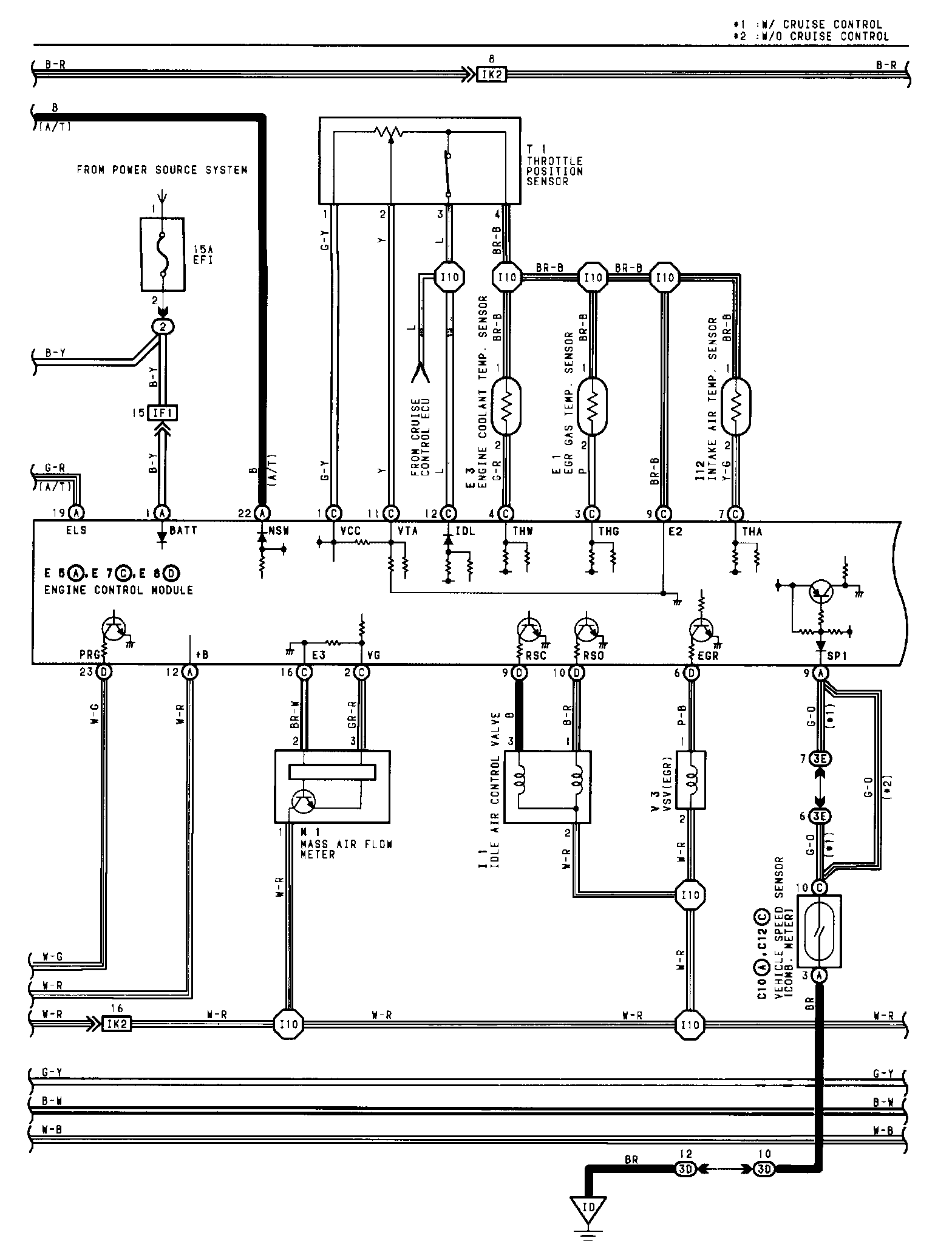

Engine Control (Part 1 Of 4):

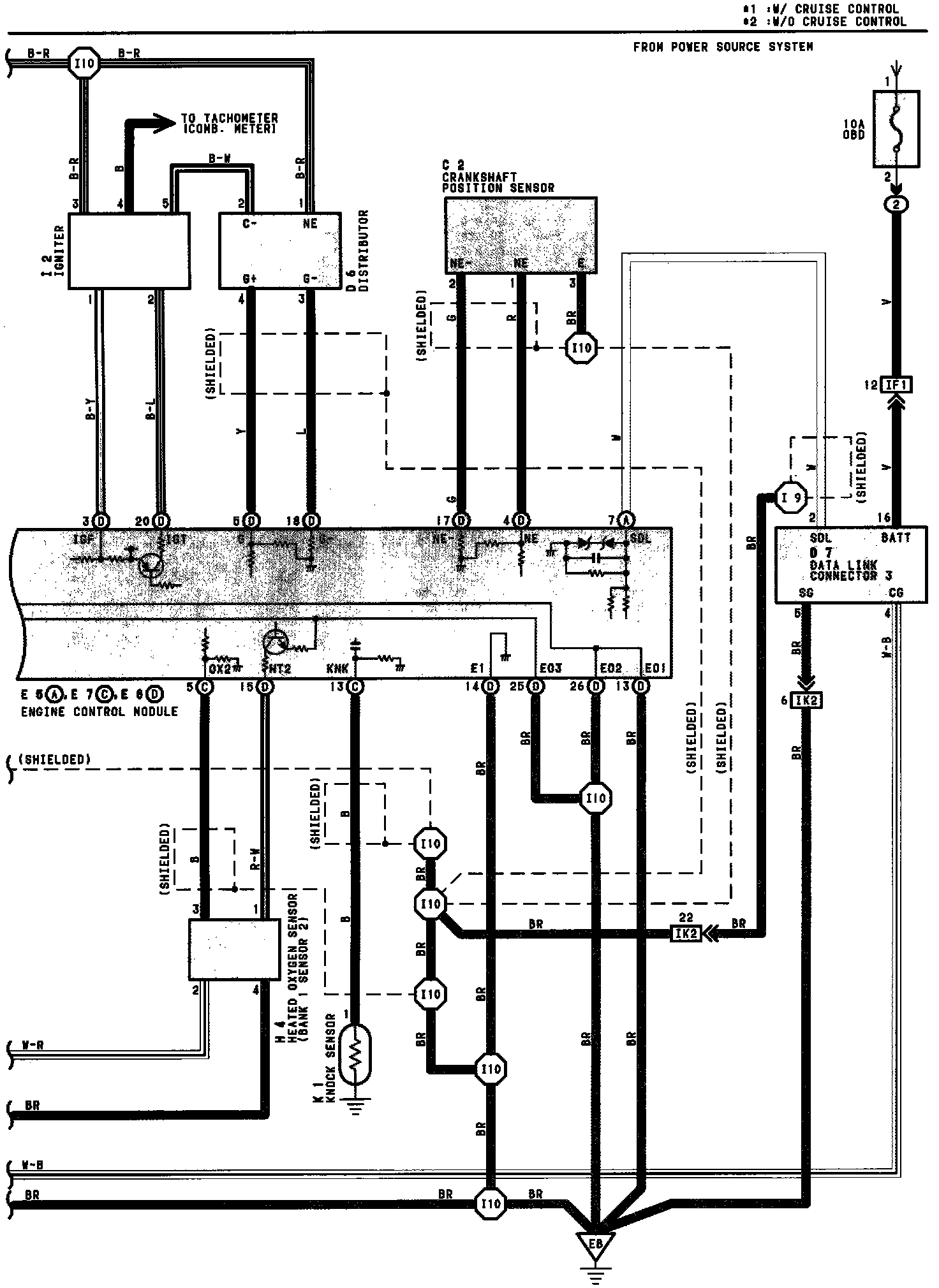

Engine Control (Part 2 Of 4):

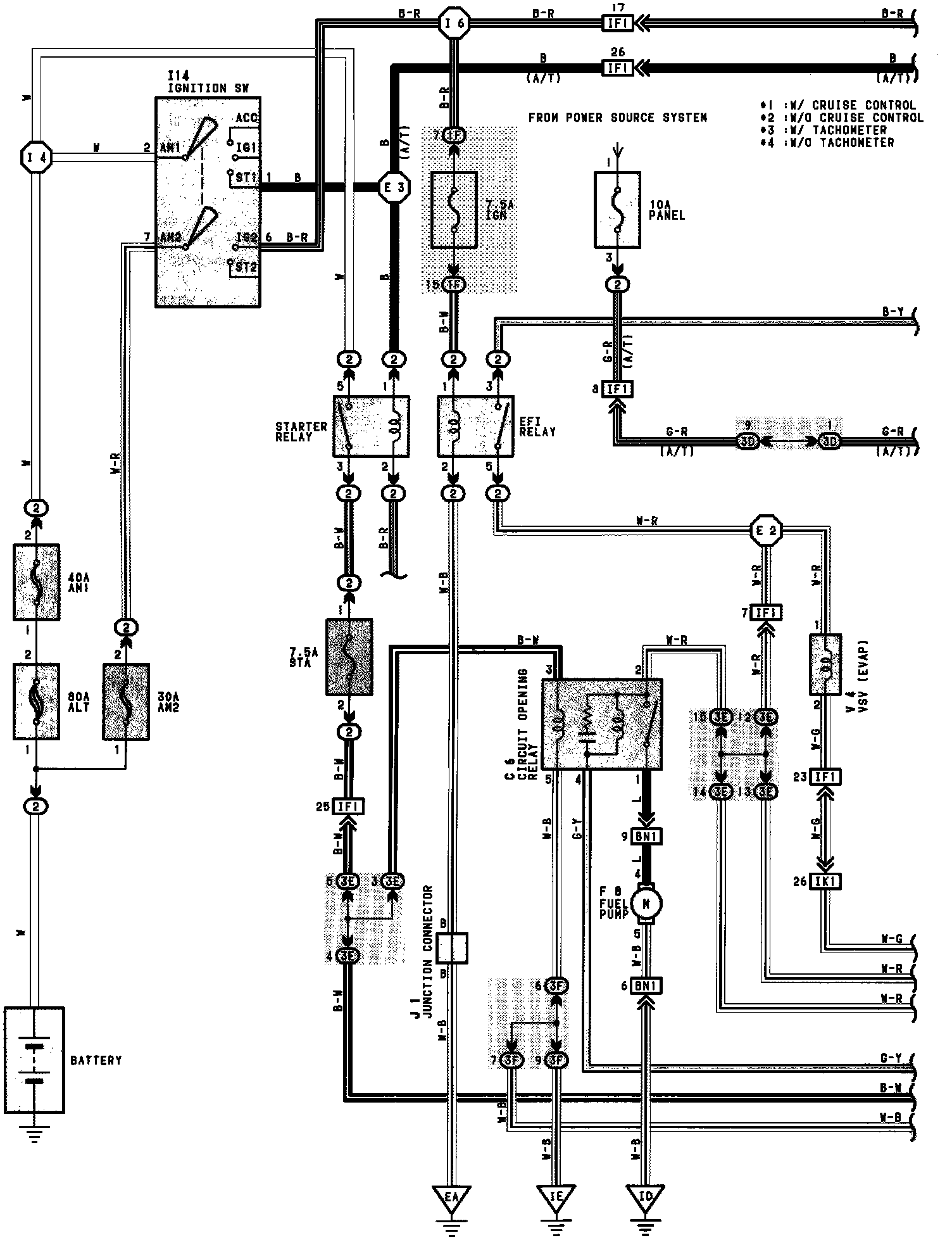

Engine Control (Part 3 Of 4):

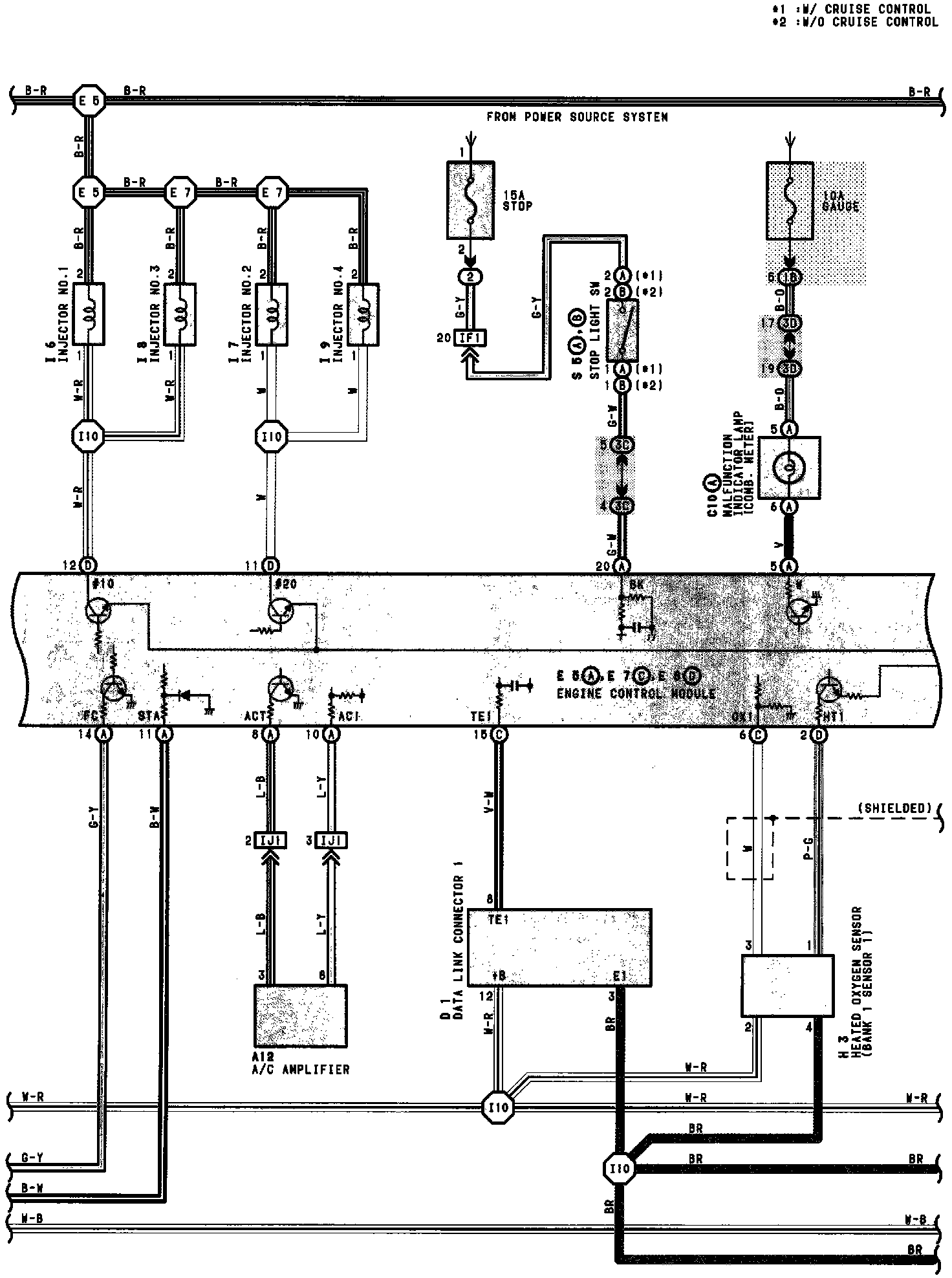

Engine Control (Part 4 Of 4):
