Air Bag: Service Precautions

Precautions For Airbag Deployment:




^ The airbag produces a sizeable exploding sound when it deploys, so do the operation out-of-doors and where it will not create a nuisance nearby residents.

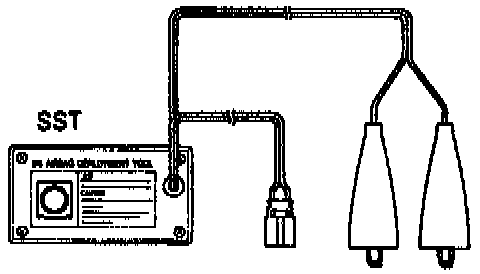

^ When deploying the airbag, always use the specified SST; SRS AIRBAG DEPLOYMENT TOOL (SST 09082-00700). Carry out operation in a place away from electrical noise.
^ When deploying an airbag, do it at least 10 m (33 ft) away from the airbag assembly.
^ The airbag assembly is very hot when the airbag is deployed, so leave it alone for at least 30 minutes after deployment.
^ Use gloves and safety glasses when handling a steering wheel pad/front passenger airbag assembly with a deployed airbag.
^ Do not apply water, etc. to a steering wheel pad/ front passenger airbag assembly with a deployed airbag.
^ Always wash your hands with water after completing the operation.
