Front

REPLACEMENT
1. Remove front wheel.
Remove the wheel and temporarily fasten the disc with hub nuts.




2. Inspect pad lining thickness.

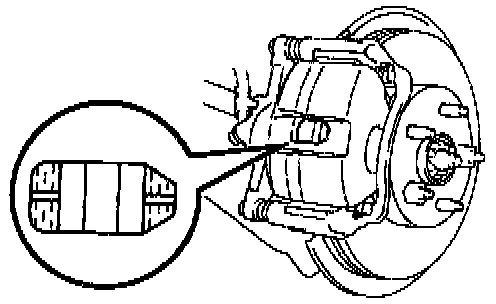

Check the pad thickness through the caliper inspection hole and replace the pads if they are not within the specification.
Minimum thickness: 1.0 mm (0.039 inch)
3. Lift up caliper.
a. Remove the bolt and flexible hose from the bracket.





b. 5S-FE engine:
Hold the sliding pin on the bottom and loosen the installation bolt, and remove the installation bolt.
c. 1MZ-FE engine:
Remove the bottom side installation bolt.
d. Lift up the caliper and suspend it securely.

HINT: Do not disconnect the flexible hose from the caliper.

4. Remove these parts:
a. 2 anti-squeal springs (5S-FE engine)
b. 2 brake pads
c. 4 anti-squeal shims
d. Pad wear indicator plate (1MZ-FE engine)
e. 2 (1MZ-FE engine) or 4 (5S-FE engine) pad support plates

NOTICE: The anti-squeal springs and support plates can be used again provided that they have sufficient rebound, no deformation, cracks or wear, and have had all rust, dirt and foreign particles cleaned off.

5. Check disc thickness and runout.
6. Install 2 or 4 pad support plates.
7. Install new pads.

NOTICE: When replacing worn pads, the anti-squeal shims and wear indicator plates must be replaced together with the pads.

a. 1MZ-FE engine:

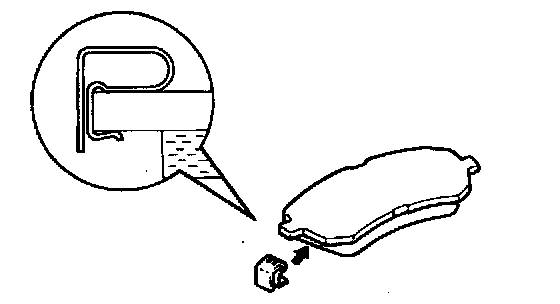

Install a pad wear indicator plate on the inner pad.





b. Apply disc brake grease to both sides of the inner anti squeal shims.
c. Install the 2 anti-squeal shims on each pad.
d. 1MZ-FE engine:
Install inner pad with the pad wear indicator plate facing upward.
e. 5S-FE engine:
Install inner pad.
f. Install outer pad.

NOTICE: There should be no oil or grease adhering the friction surfaces of the pads or the disc.

g. 5S-FE engine:
Install the 2 anti-squeal springs.
8. Install caliper.
a. Draw out a small amount of brake fluid from the reservoir.





b. Press in the piston with a hammer handle or similar implement.

HINT: If the piston is difficult to push in, loosen the bleeder plug and push in the piston while letting some brake fluid escape.

c. Install the caliper.
d. 5S-FE engine:
Hold the sliding pin and torque the installation bolt.
e. 1MZ-FE engine:
Install the installation bolt.
Torque: 34 Nm (25 ft. lbs.)
f. Install the flexible hose and bolt to the bracket.
Torque: 29 Nm (21 ft. lbs.)
9. Install front wheel.
10. Check that fluid level is at max line.
