Camshaft Position Sensor: Testing and Inspection

CAMSHAFT POSITION SENSOR INSPECTION

(a) Disconnect the camshaft position sensor connector.

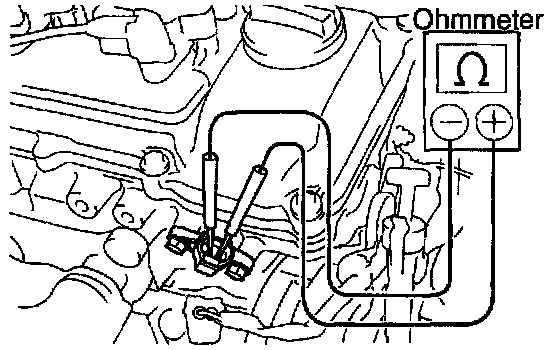

(b) Inspect the camshaft position sensor resistance. Using an ohmmeter, measure the resistance between terminals.

Resistance:

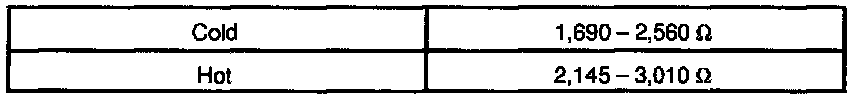

DENSO made:

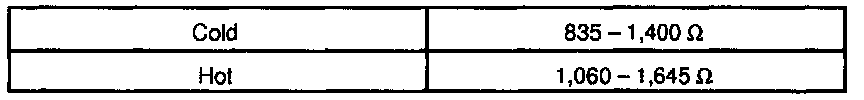

Wabash made:

If the resistance is not as specified, replace the camshaft position sensor.
(c) Reconnect the camshaft position sensor connector.
