Brakes - New Pad Kit Available: Overview

BULLETIN:
BR002-00

GROUP:
Brakes

DATE:
March 10, 2000

TITLE:
Front Brake Vibration

MODELS:
'98 - '00 Corolla

Introduction
A new Front Disc Brake Pad kit is available and a procedure has been developed for applying Disc Brake Grease to the brake cylinder mountings, brake pads, and pad support plates to reduce the possibility of front brake vibration under certain operating conditions.

Applicable Vehicles
1998 - 2000 model year Corolla

Parts Information

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME

04465-12520 04465-02050 Pad Kit, Front Disc Brake
04945-02020 Same Shim Kit (if needed*)
08887-80409 Same Grease, Disc Brake Shim
04947-02020 Same Fitting kit, Front Disc Brake (if needed**)

* Visually inspect shims for heat discoloration. If discolored, replace the shims.
* Visually inspect pad support plates for damage. If damaged, replace the pad support plates.

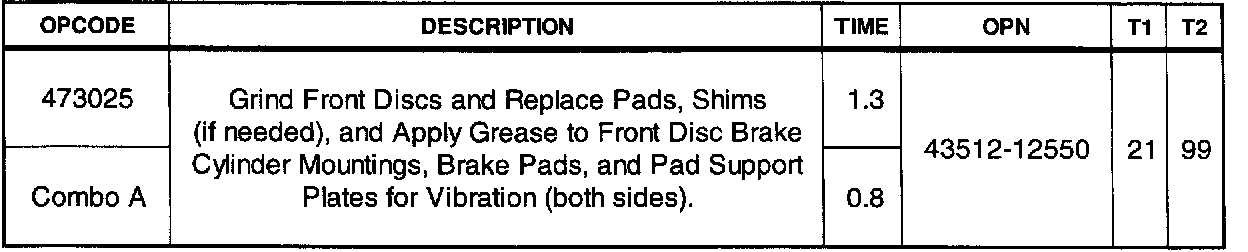

Warranty Information

Applicable Warranty*:

This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
