Relay Block

Relay Blocks:

RELAY BLOCKS

Locations-Engine Room R/B No.5 Engine Compartment Left (Fig 20):

FIG 20

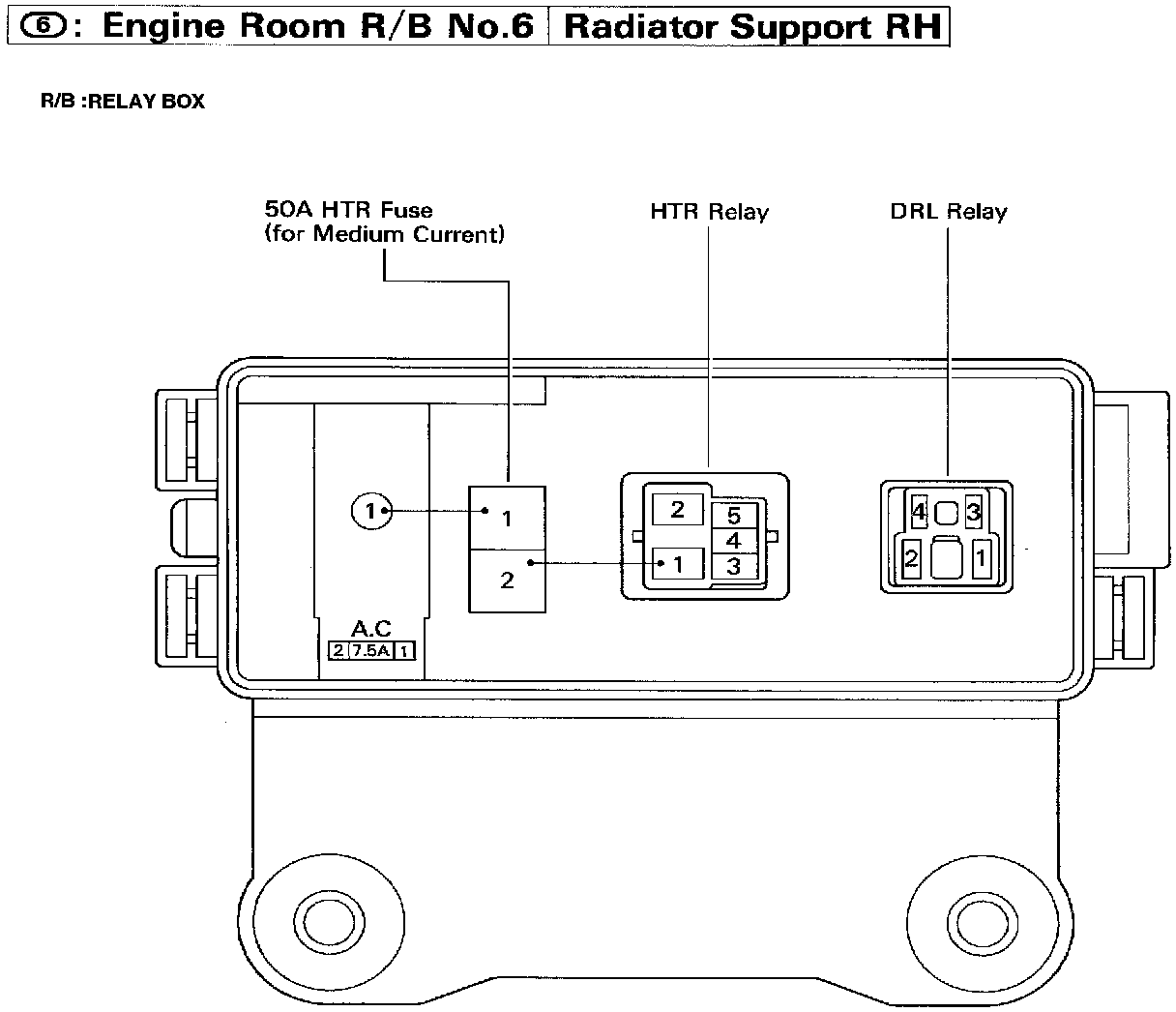

Locations-Engine Room R/B No.6 Radiator Support RH (Fig 21):

FIG 21
