A/T - Delayed Upshift To O/D With Cruise Engaged

ELECTRICAL
EL006-98

Title:
DELAYED UPSHIFT TO OVERDRIVE
WITH CRUISE CONTROL ENGAGED

Models:
'98 Corolla

October 16, 1998



Introduction

Under certain conditions, some 1998 model year Corollas may exhibit a delayed upshift to overdrive after cresting a hill with cruise control engaged To improve shift timing, the Cruise Control ECU logic has been changed.

Affected Vehicles

^ 1998 model year Corollas equipped with A245E (4 speed) Automatic Transmission, and OEM Cruise Control, manufactured before VINs shown in the Production Change Information table below.





Production Change Information

Part Number Information

OLD PART NUMBER NEW PART NUMBER PART NAME

88240-02020 88240-02030 Computer Assembly, Cruise Control

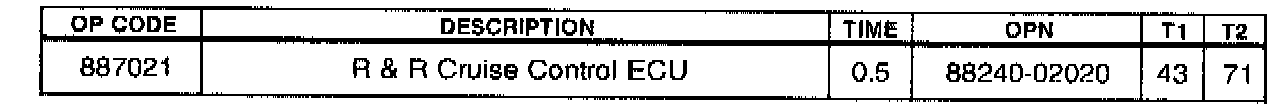

Warranty Information

Applicable Warranty*:

This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
