General Torque Specifications

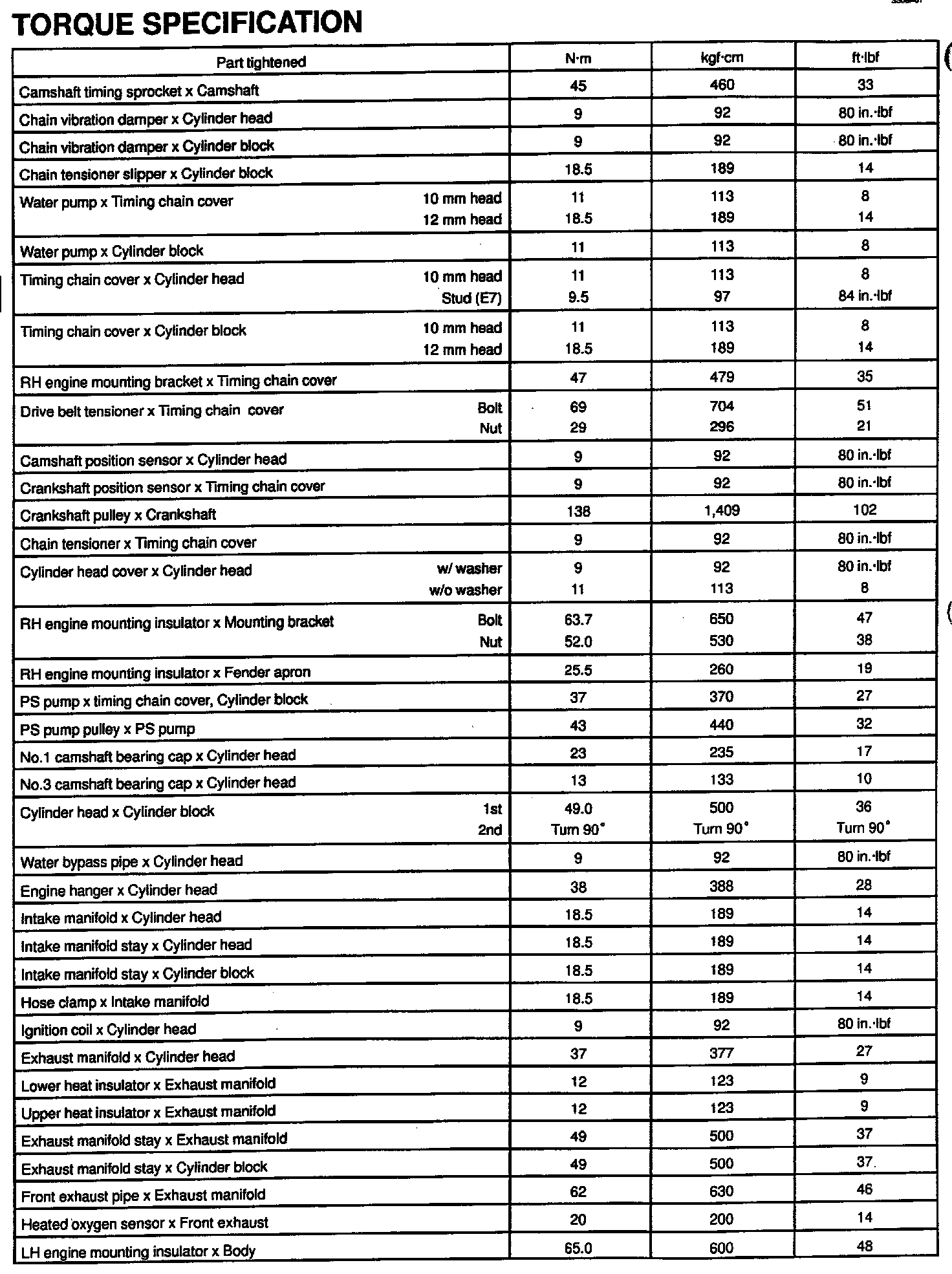

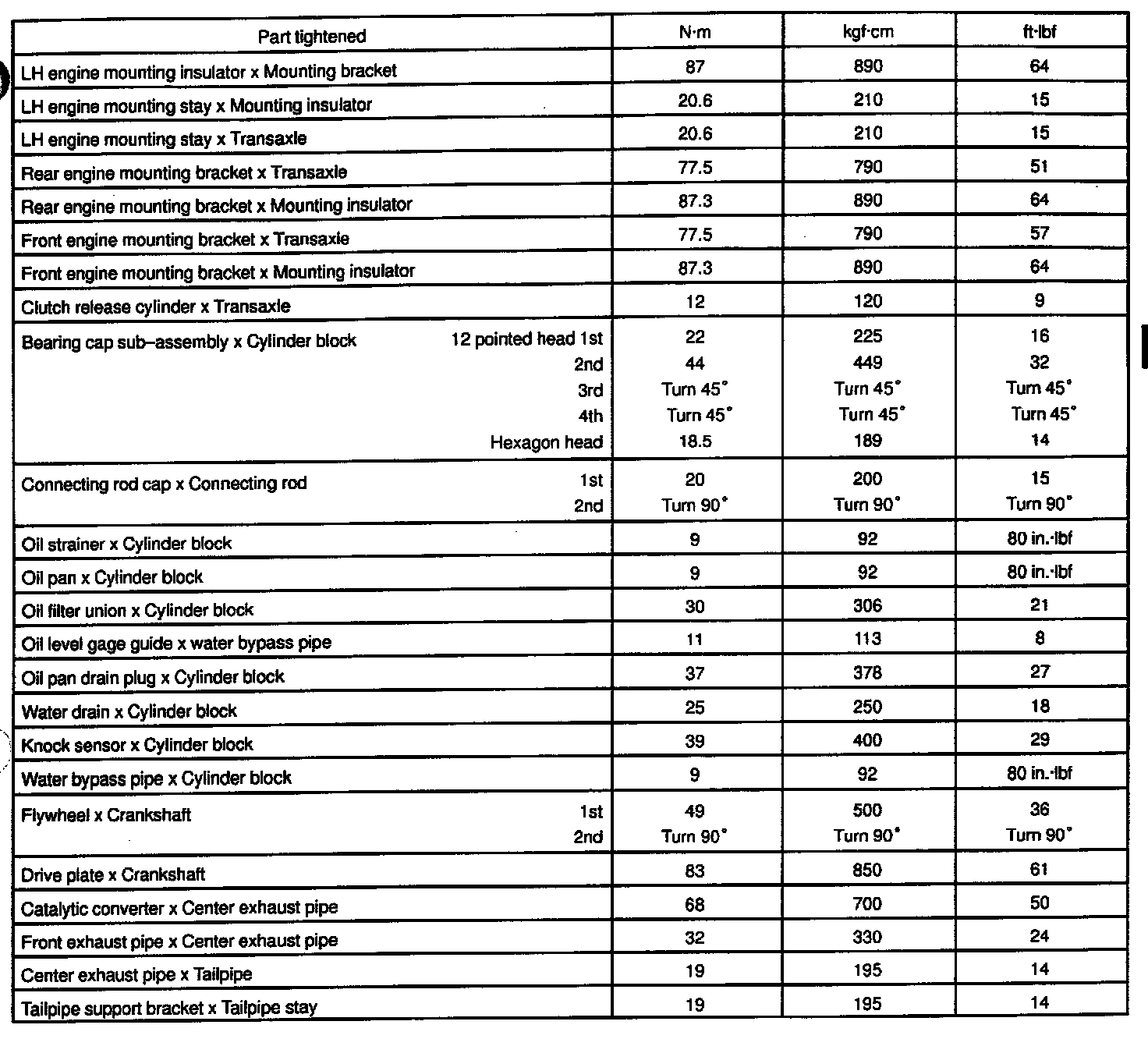

TORQUE CHART








TORQUE SEQUENCES

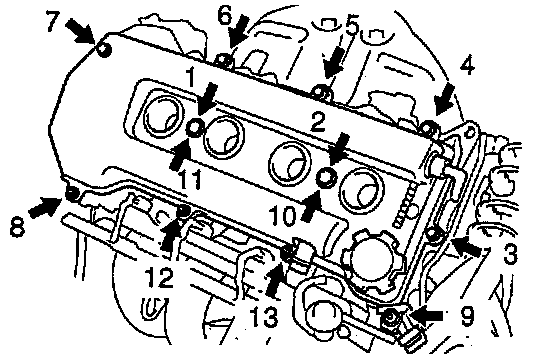

Cylinder Head Cover Tightening Sequence:

Camshaft Bearing Cap Removal Sequence:

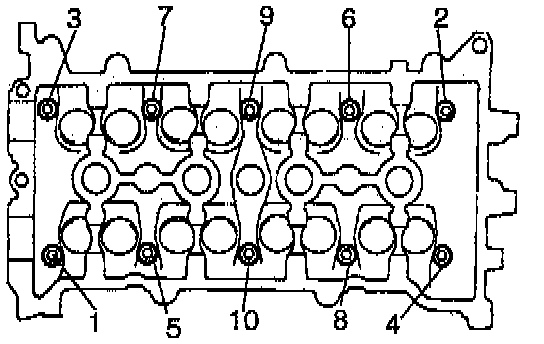

Cylinder Head Bolt Removal Sequence:

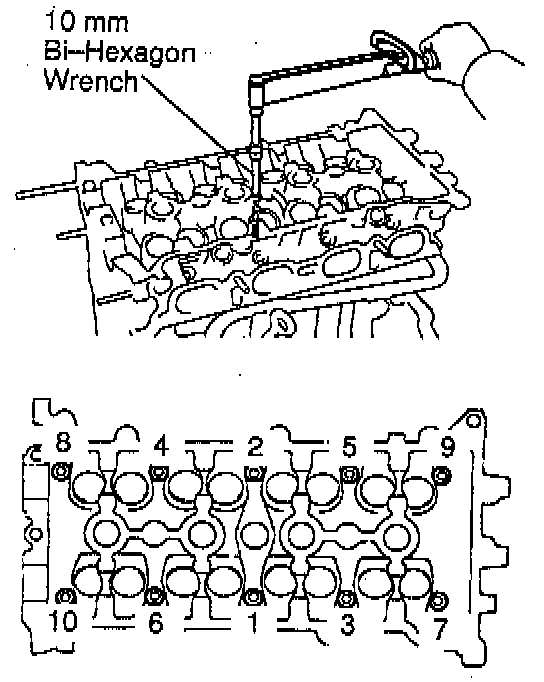

Cylinder Head Bolt Tightening Sequence:

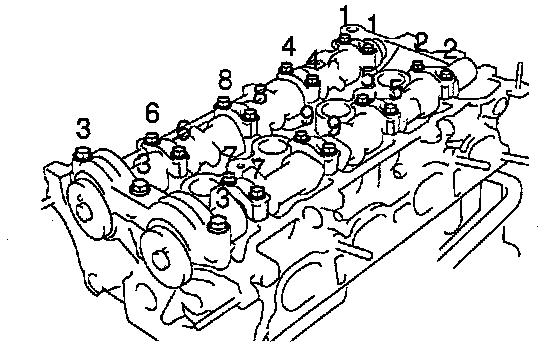

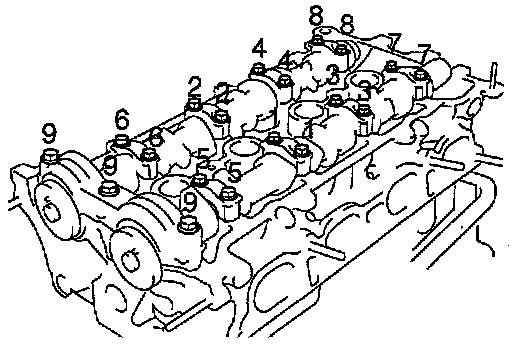

Camshaft Bearing Cap Tightening Sequence:

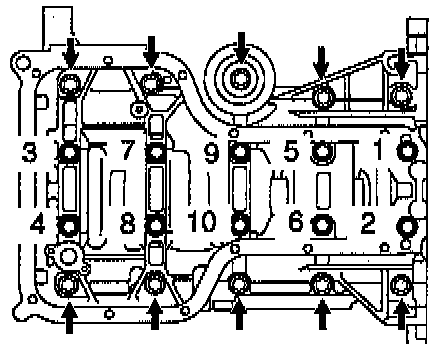

Bearing Cap Sub-Assembly Bolt Removal Sequence:

Bearing Cap Sub-Assembly Bolt Tightening Sequence:

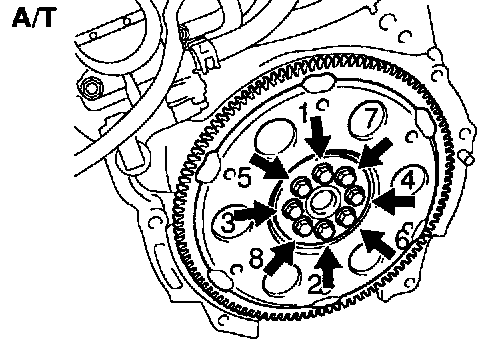

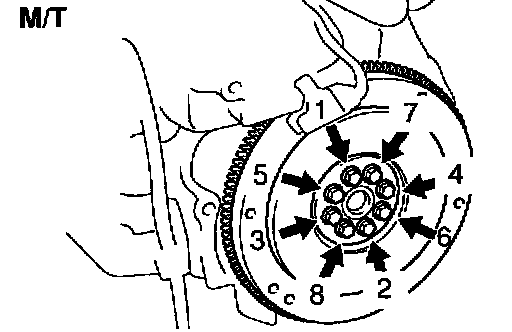

Sequence:

Sequence:

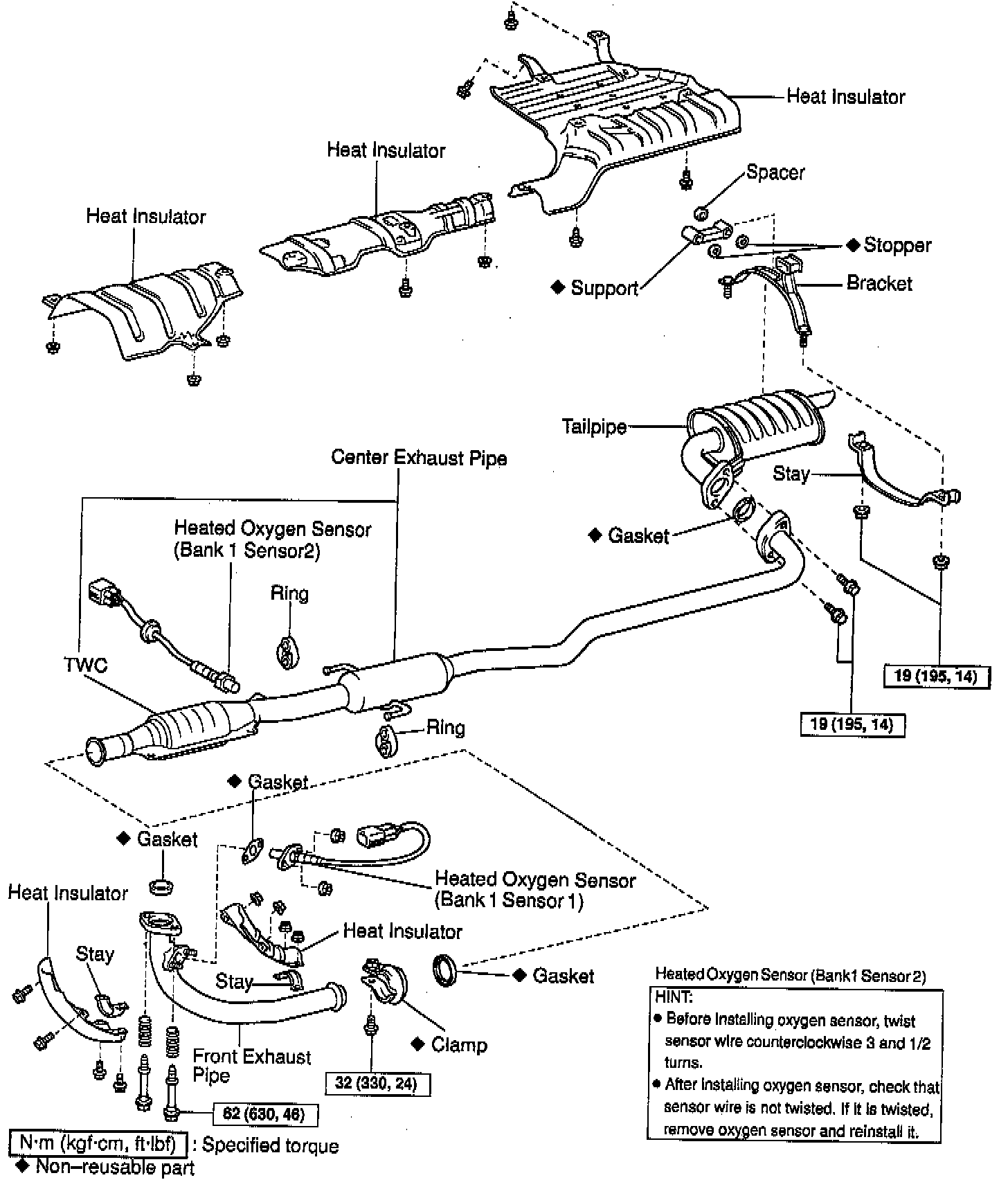

See also: Refer to Diagrams/Exploded Views at component level.
