Main Switch Circuit (Cruise Control Switch)

Main Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

When the cruise control main switch is turned off, the cruise control does not operate.

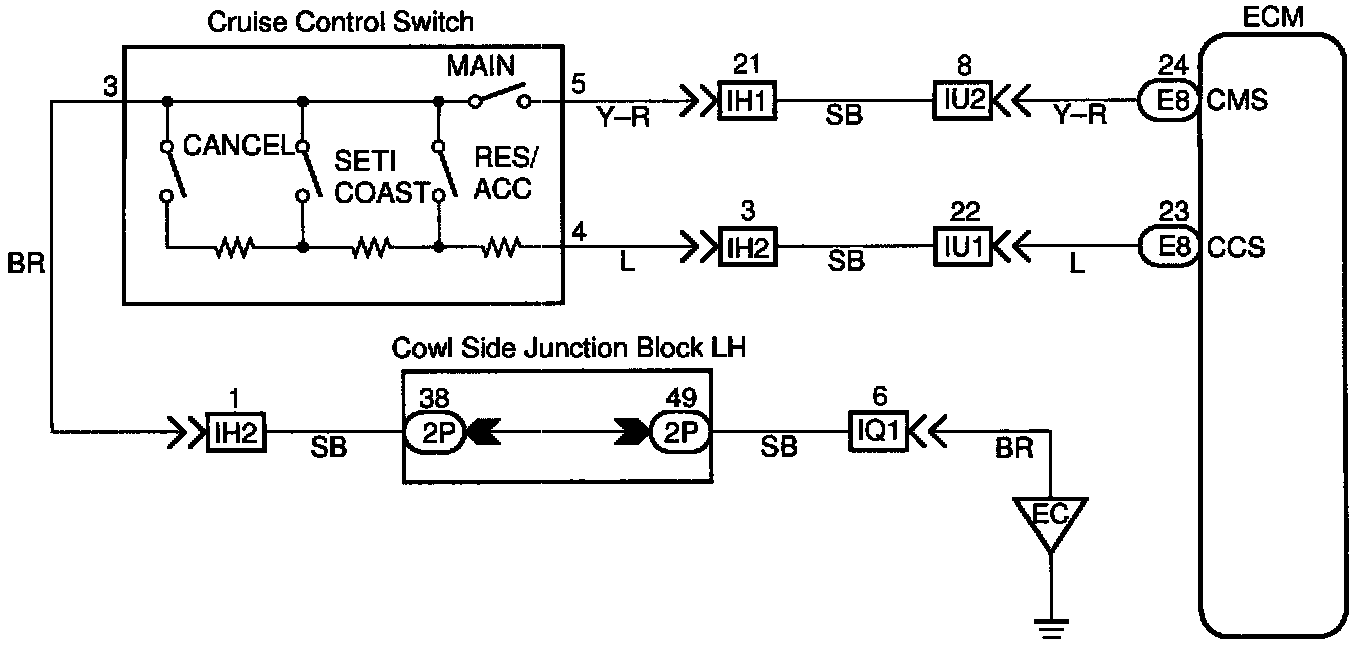

WIRING DIAGRAM

Step 1:

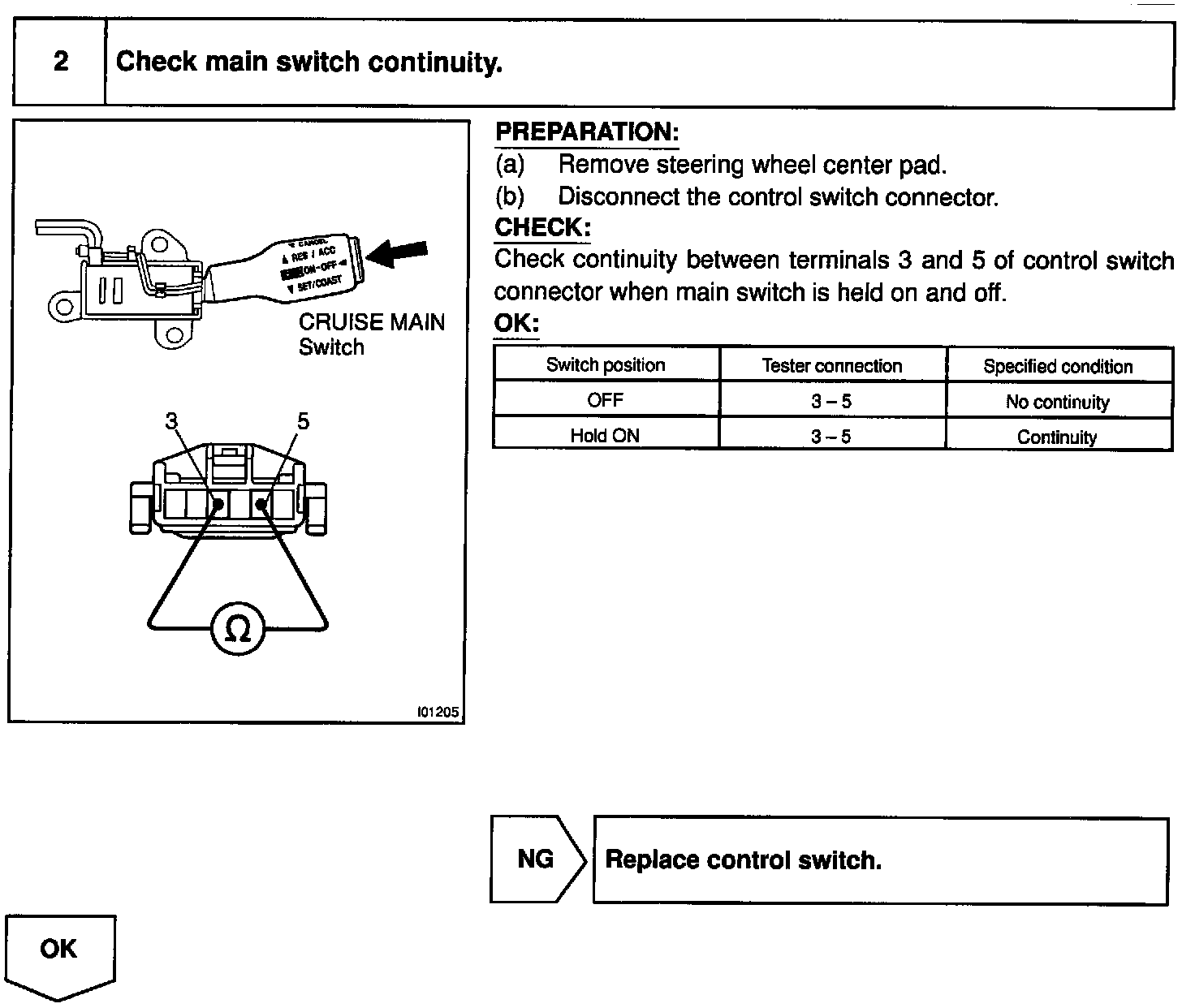

Step 2:

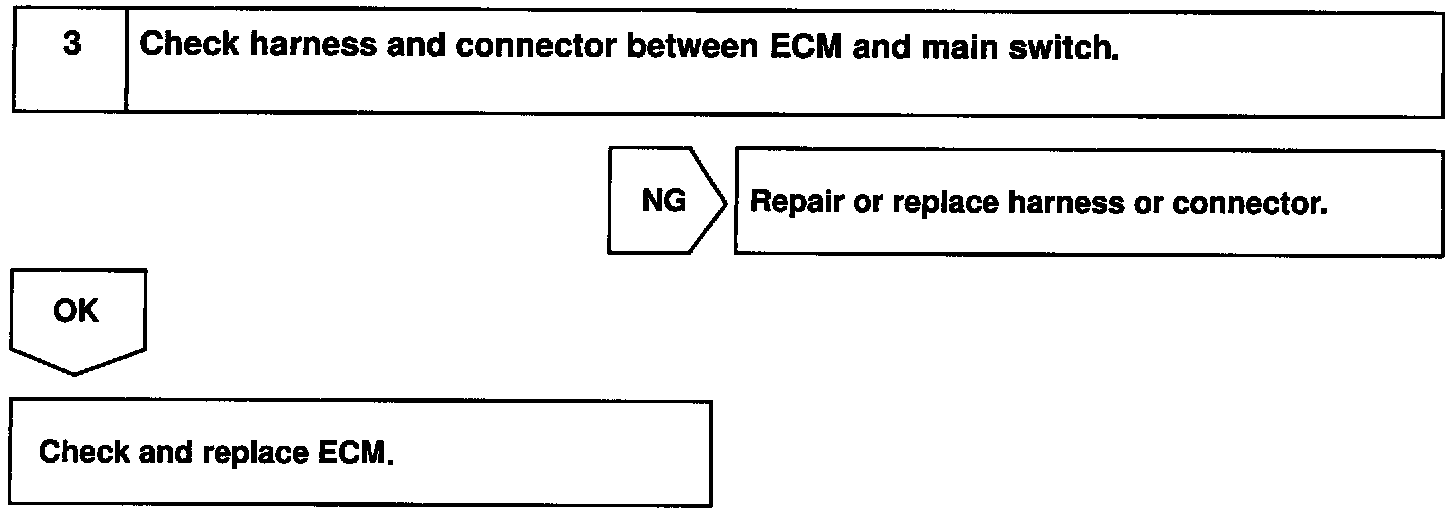

Step 3:

INSPECTION PROCEDURE
