Engine Compartment

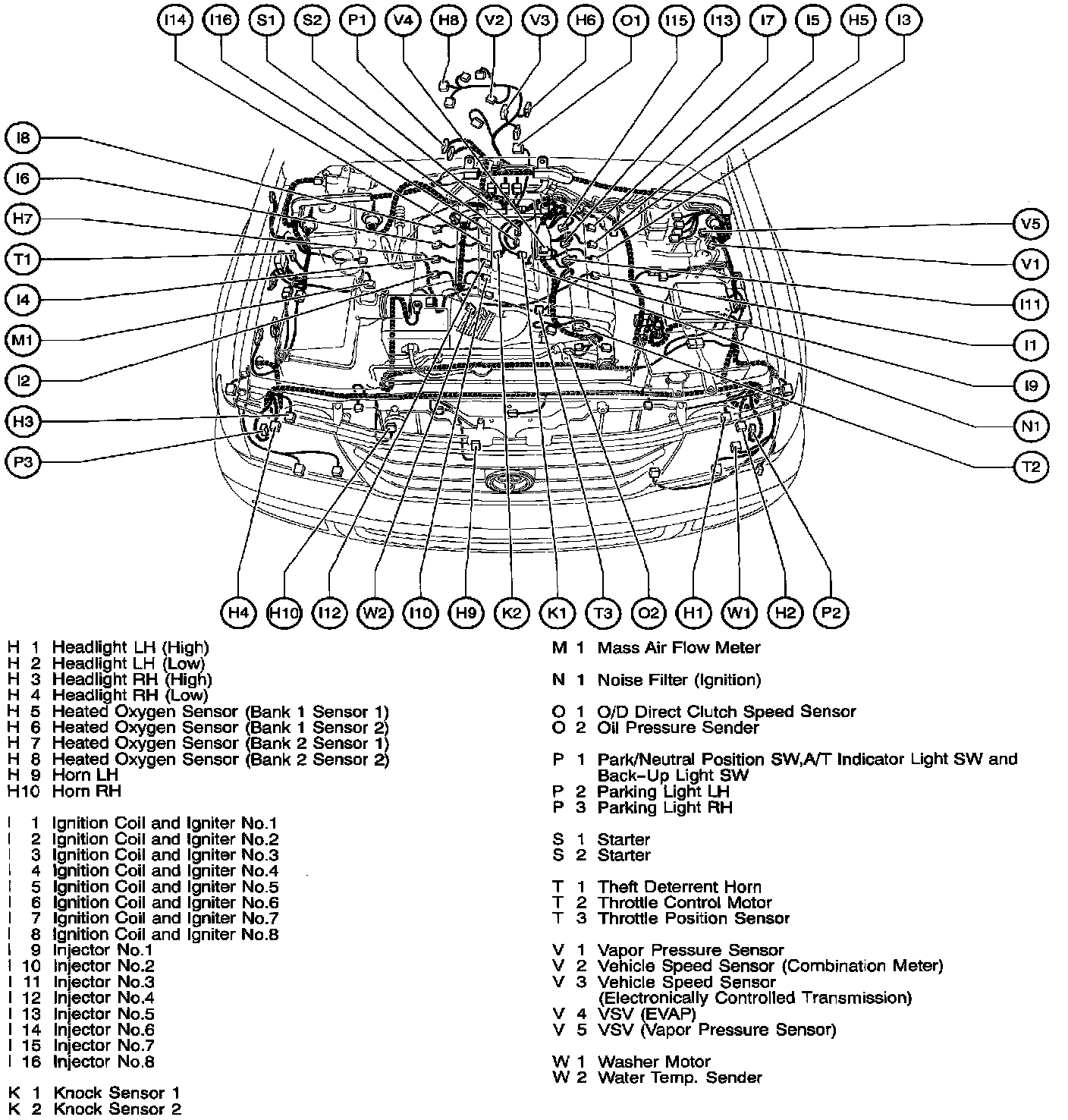

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 36):

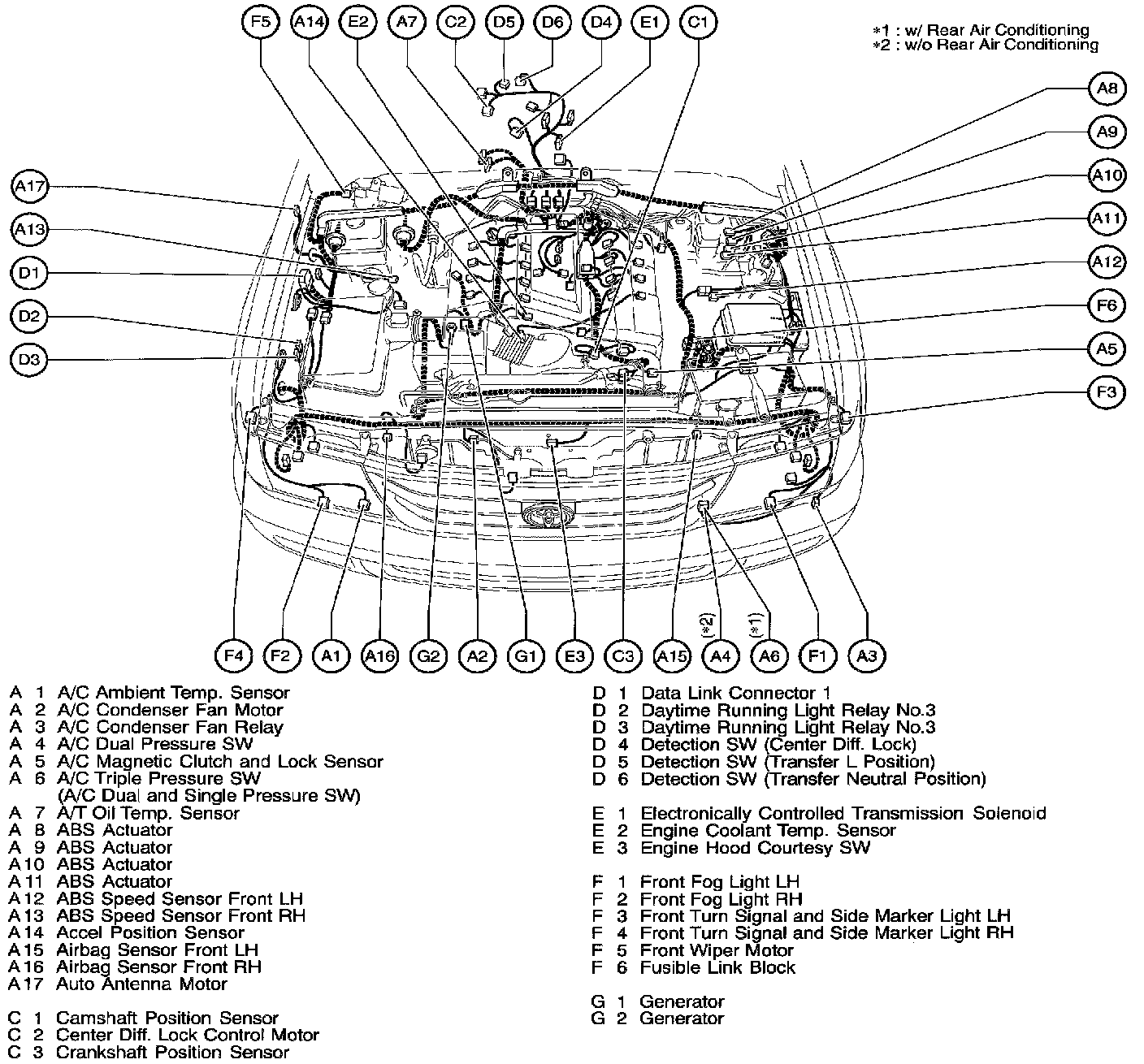

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 37):

A 1 NC Ambient Temp. Sensor
A 2 A/C Condenser Fan Motor
A 3 A/C Condenser Fan Relay
A 4 A/C Dual Pressure SW
A 5 A/C Magnetic Clutch and Lock Sensor
A 6 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A 7 A/T Oil Temp. Sensor
A 8 ABS Actuator
A 9 ABS Actuator
A10 ABS Actuator
A11 ABS Actuator
A12 ABS Speed Sensor Front LH
A13 ABS Speed Sensor Front RH
A14 Accel Position Sensor
A15 Airbag Sensor Front LH
A16 Airbag Sensor Front RH
A17 Auto Antenna Motor

C 1 Camshaft Position Sensor
C 2 Center Diff. Lock Control Motor
C 3 Crankshaft Position Sensor

D 1 Data Link Connector 1
D 2 Daytime Running Light Relay No.3
D 3 Daytime Running Light Relay No.3
D 4 Detection SW (Center Diff. Lock)
D 5 Detection SW (Transfer L Position)
D 6 Detection SW (Transfer Neutral Position)

E 1 Electronically Controlled Transmission Solenoid
E 2 Engine Coolant Temp. Sensor
E 3 Engine Hood Courtesy SW

F 1 Front Fog Light LH
F 2 Front Fog Light RH
F 3 Front Turn Signal and Side Marker Light LH
F 4 Front Turn Signal and Side Marker Light RH
F 5 Front Wiper Motor
F 6 Fusible Link Block

G 1 Generator
G 2 Generator

H 1 Headlight LH (High)
H 2 Headlight LH (Low)
H 3 Headlight RH (High)
H 4 Headlight RH (Low)
H 5 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 6 Heated Oxygen Sensor (Bank 1 Sensor 2)
H 7 Heated Oxygen Sensor (Bank 2 Sensor 1)
H 8 Heated Oxygen Sensor (Bank 2 Sensor 2)
H 9 Horn LH
H10 Horn RH

I 1 Ignition Coil and Igniter No.1
I 2 Ignition Coil and Igniter No.2
I 3 Ignition Coil and Igniter No.3
I 4 Ignition Coil and Igniter No.4 5 Ignition Coil and Igniter No.5
I 6 Ignition Coil and Igniter No.6
I 7 Ignition Coil and Igniter No.7
I 8 Ignition Coil and Igniter No.8
I 9 Injector No.1
I10 Injector No.2
I11 Injector No.3
I12 Injector No.4
I13 Injector No.5
I14 Injector No.6
I15 Injector No.7
I 16 Injector No.8

K 1 Knock Sensor 1
K 2 Knock Sensor 2

M 1 Mass Air Flow Meter

N 1 Noise Filter (Ignition)

O 1 O/D Direct Clutch Speed Sensor
O 2 Oil Pressure Sender

P 1 Park/Neutral Position SW A/T Indicator Light SW and Back-Up Light SW
P 2 Parking Light LH
P 3 Parking Light RH

S 1 Starter
S 2 Starter

T 1 Theft Deterrent Horn
T 2 Throttle Control Motor
T 3 Throttle Position Sensor

V 1 Vapor Pressure Sensor
V 2 Vehicle Speed Sensor (Combination Meter)
V 3 Vehicle Speed Sensor (Electronically Controlled Transmission)
V 4 VSV (EVAP)
V 5 VSV (Vapor Pressure Sensor)

W 1 Washer Motor
W 2 Water Temp. Sender
