Fuel Gauge Sender: Testing and Inspection

INSPECT FUEL SENDER GAUGE RESISTANCE
a. Apply voltage between terminals 2 and 3.

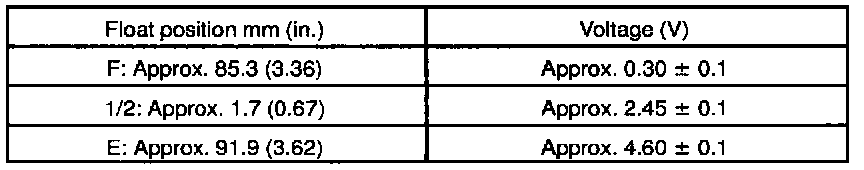

b. Measure voltage between terminals 1 and 2 for each float position.
If voltage value is not as specified, replace main sender gauge.
