Door Lock Control Switch Circuit


Door Lock Control Switch Circuit

CIRCUIT DESCRIPTION

Door lock control switch circuit can be checked using DTC check. Refer to Body and Frame/Locks/Keyless Entry/Testing and Inspection Procedures
Keyless Entry

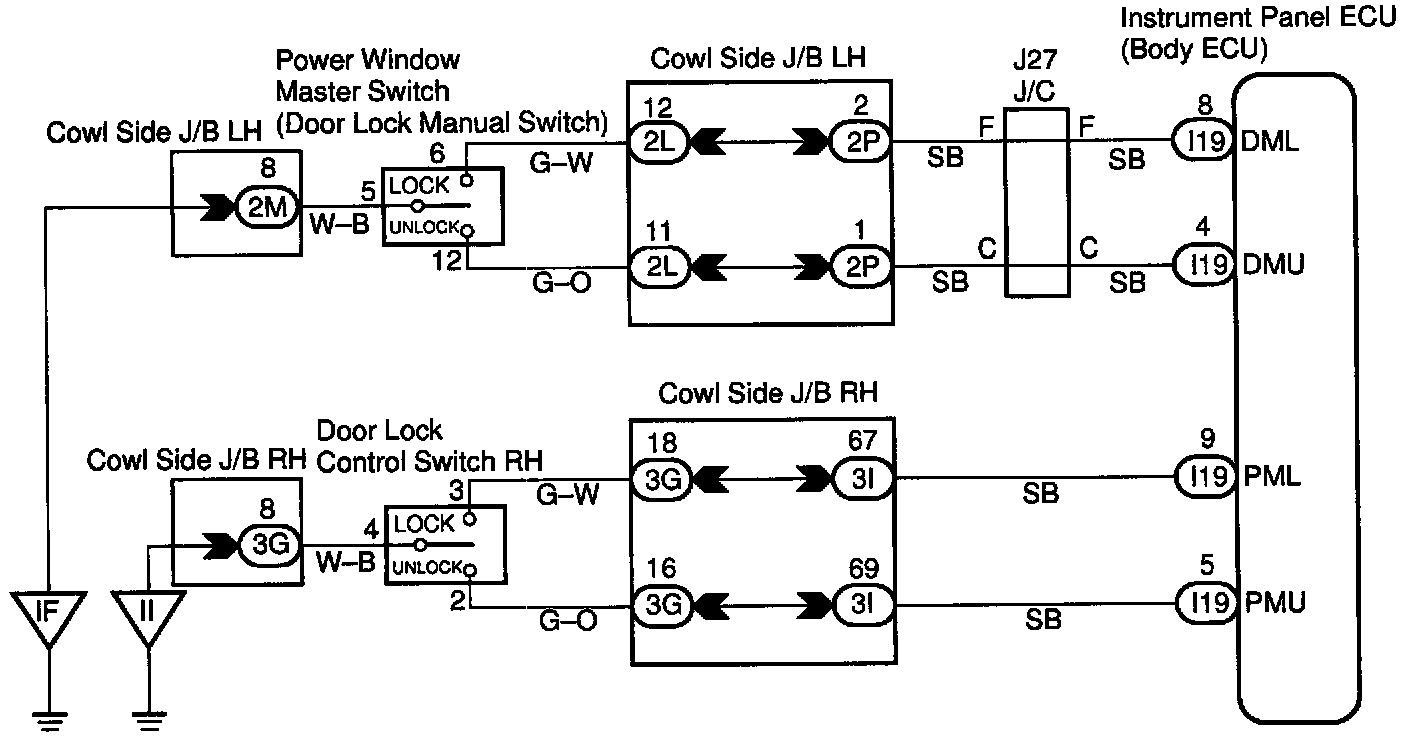

WIRING DIAGRAM

Step 1:

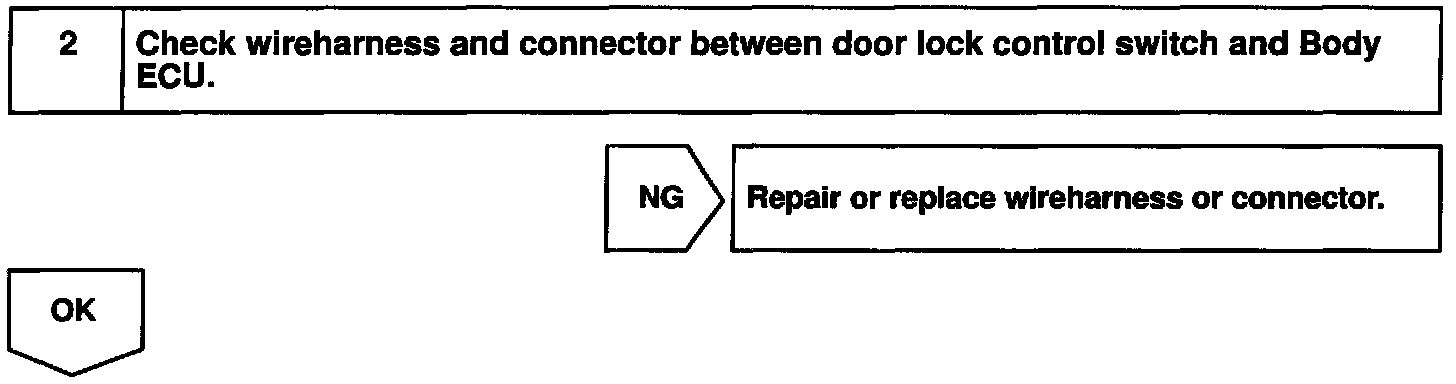

Step 2:

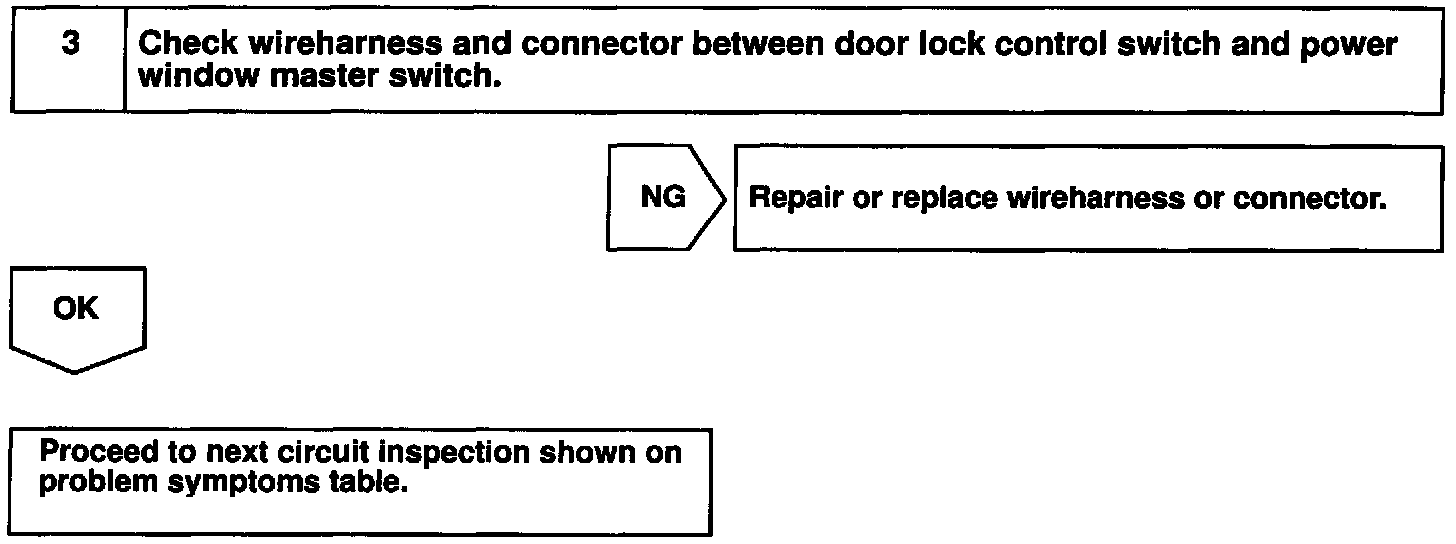

Step 3:





INSPECTION PROCEDURE
