General Service Specifications

2UZ-FE Engine Mechanical Data:

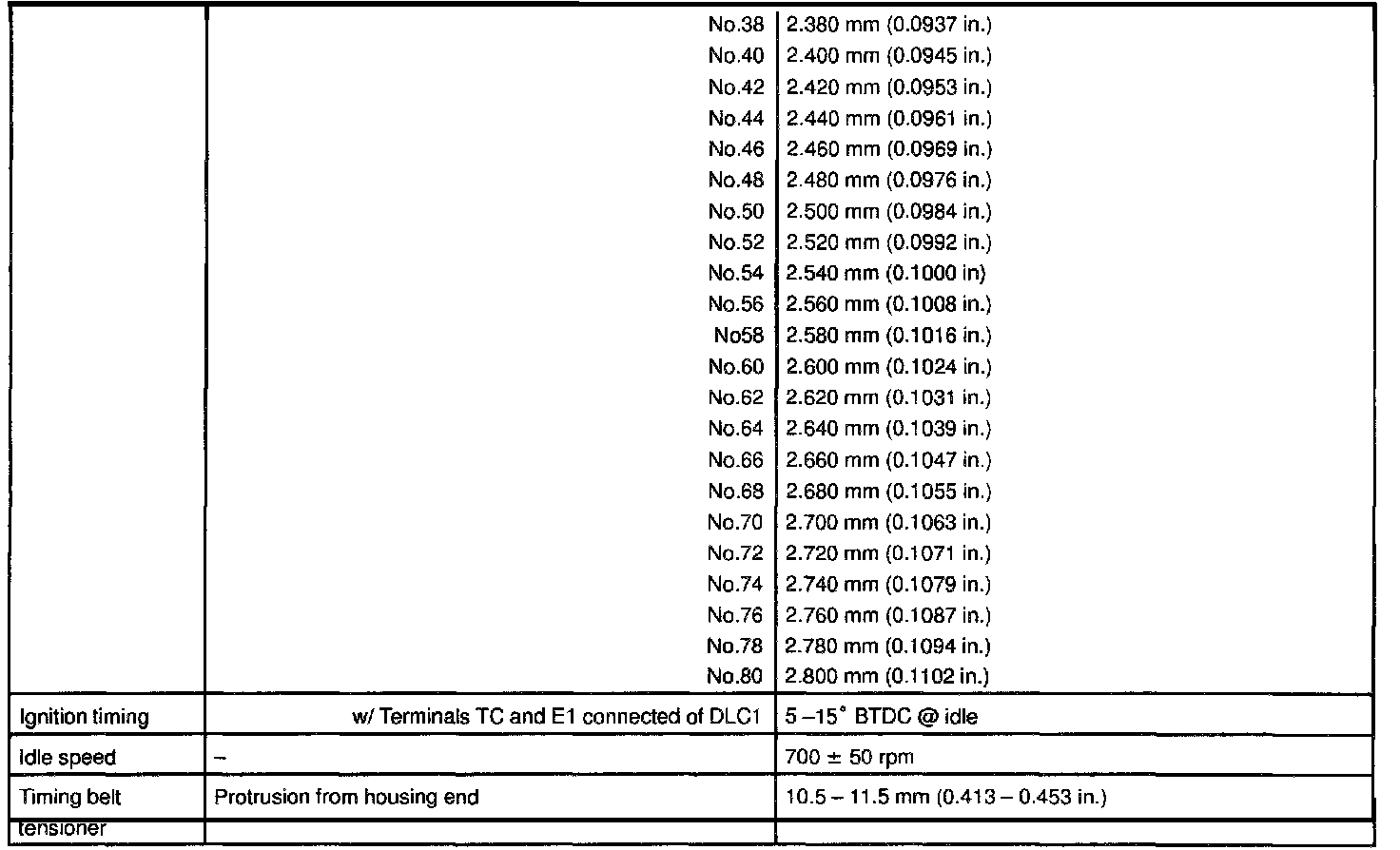

2UZ-FE Engine Mechanical Cont.:

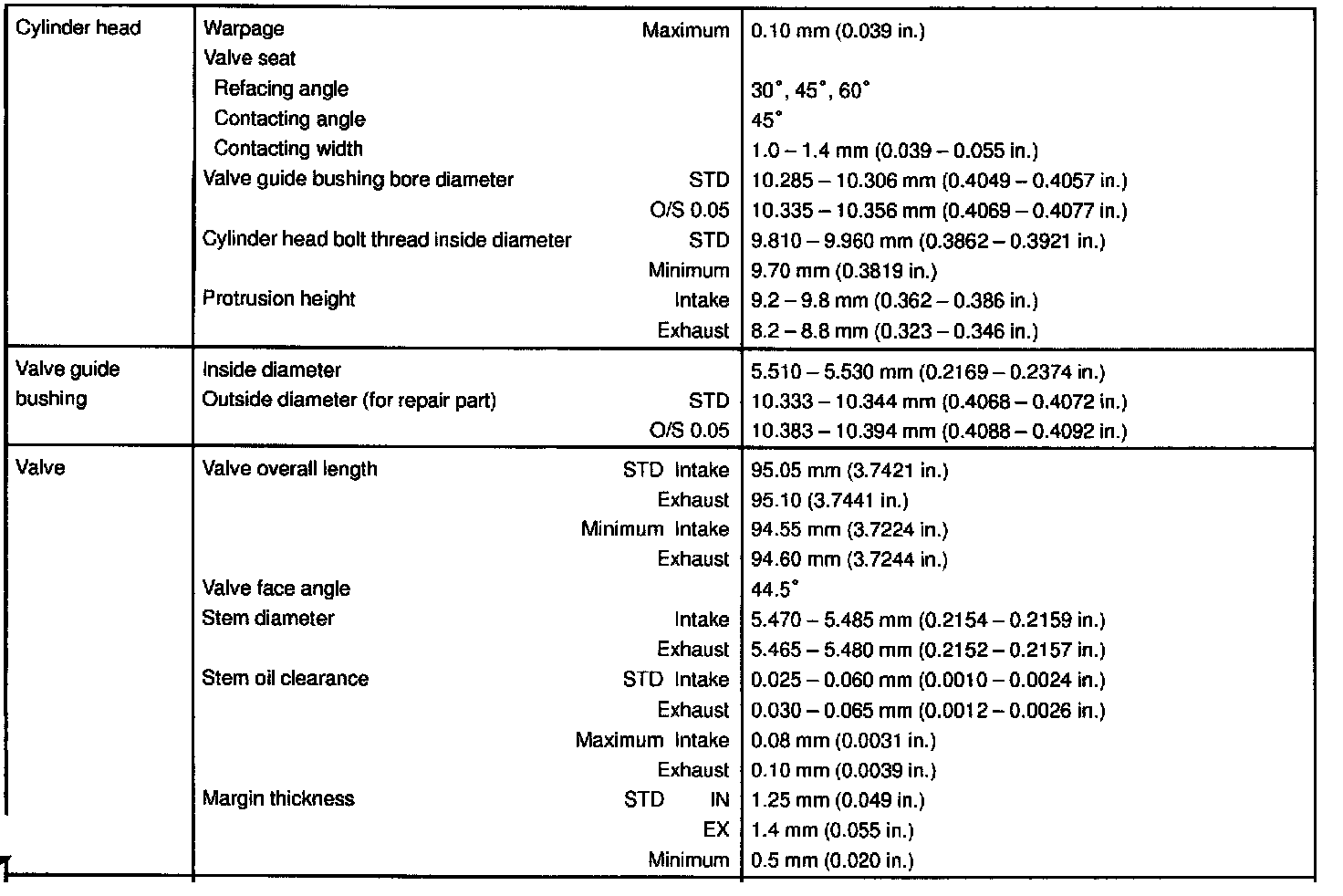

2UZ-FE Engine Mechanical Cont.:

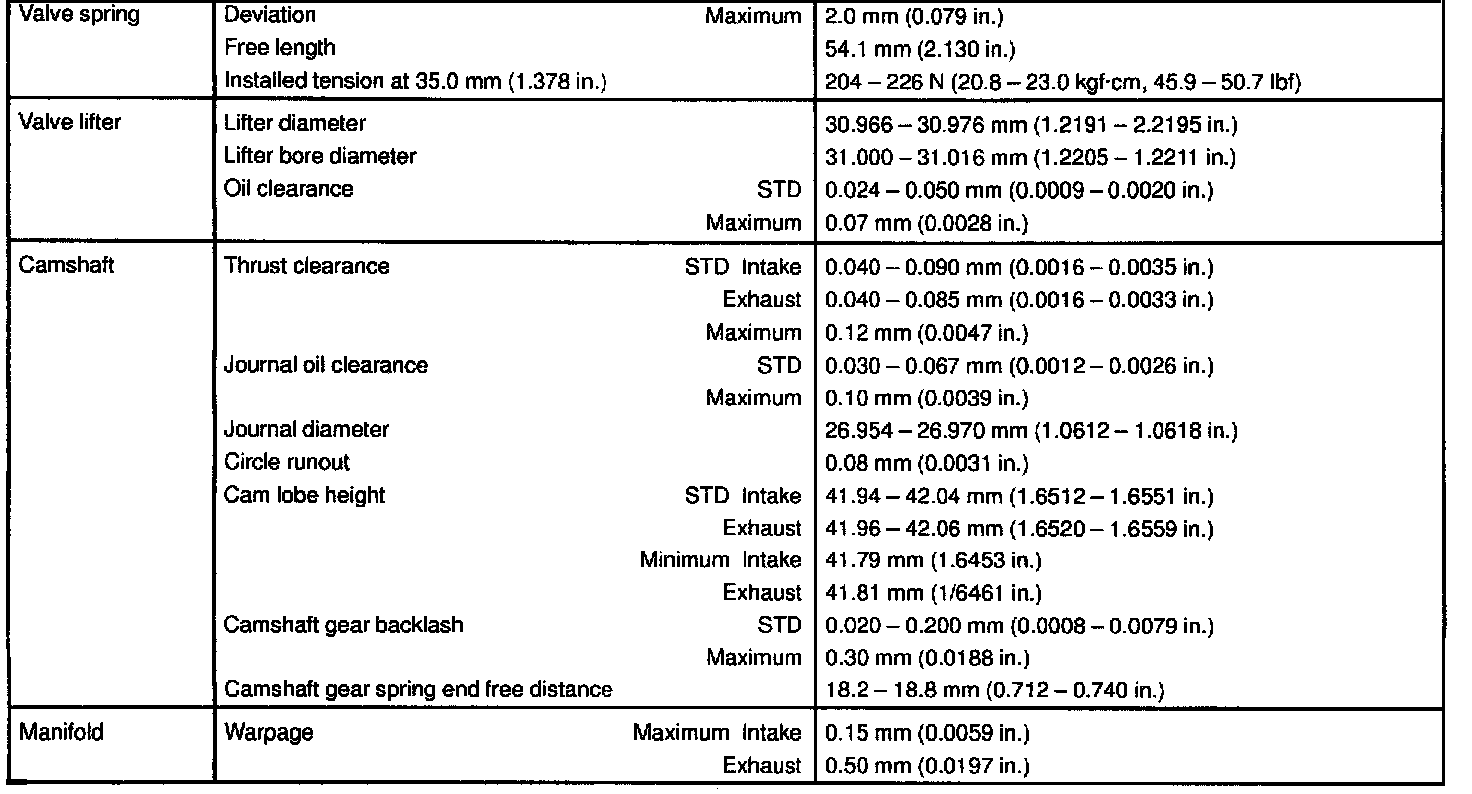

2UZ-FE Engine Mechanical Cont.:

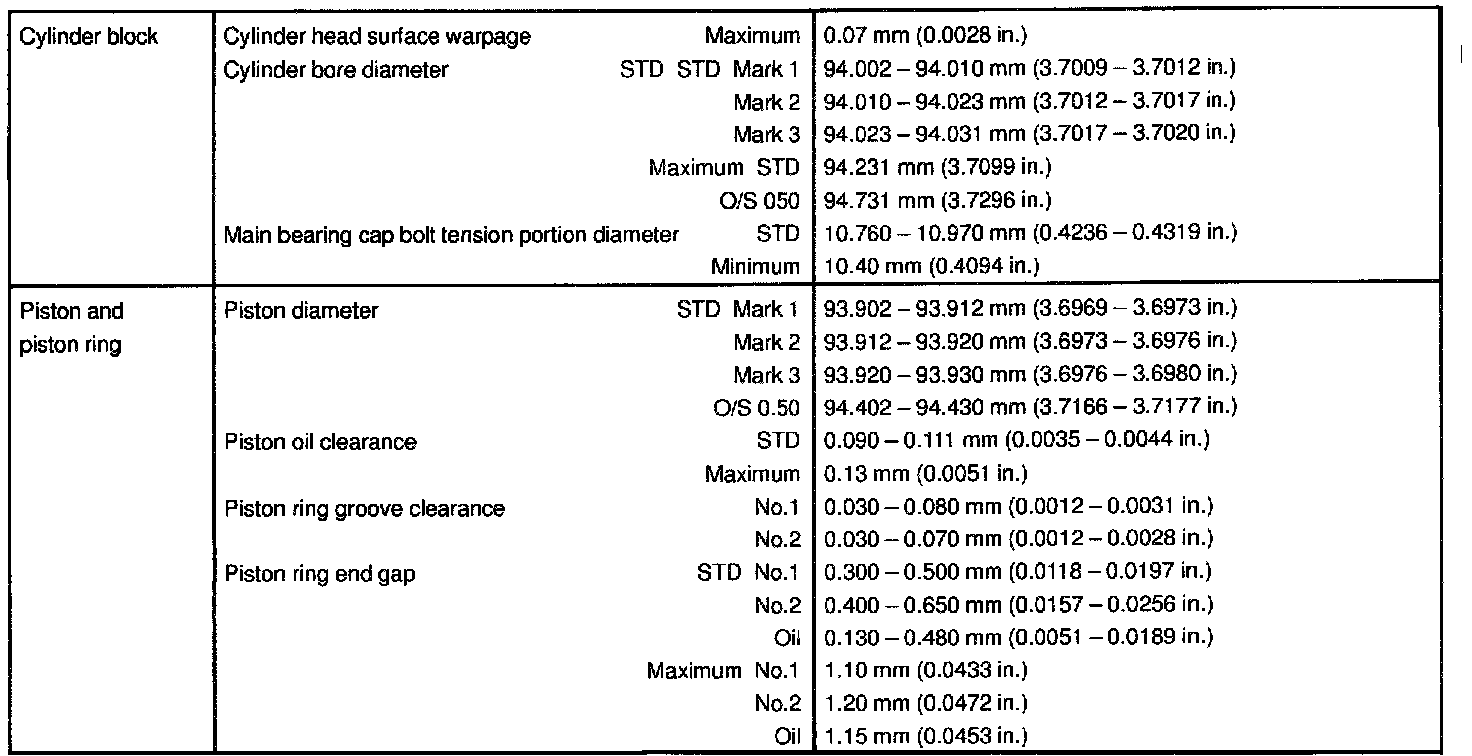

2UZ-FE Engine Mechanical Cont.:

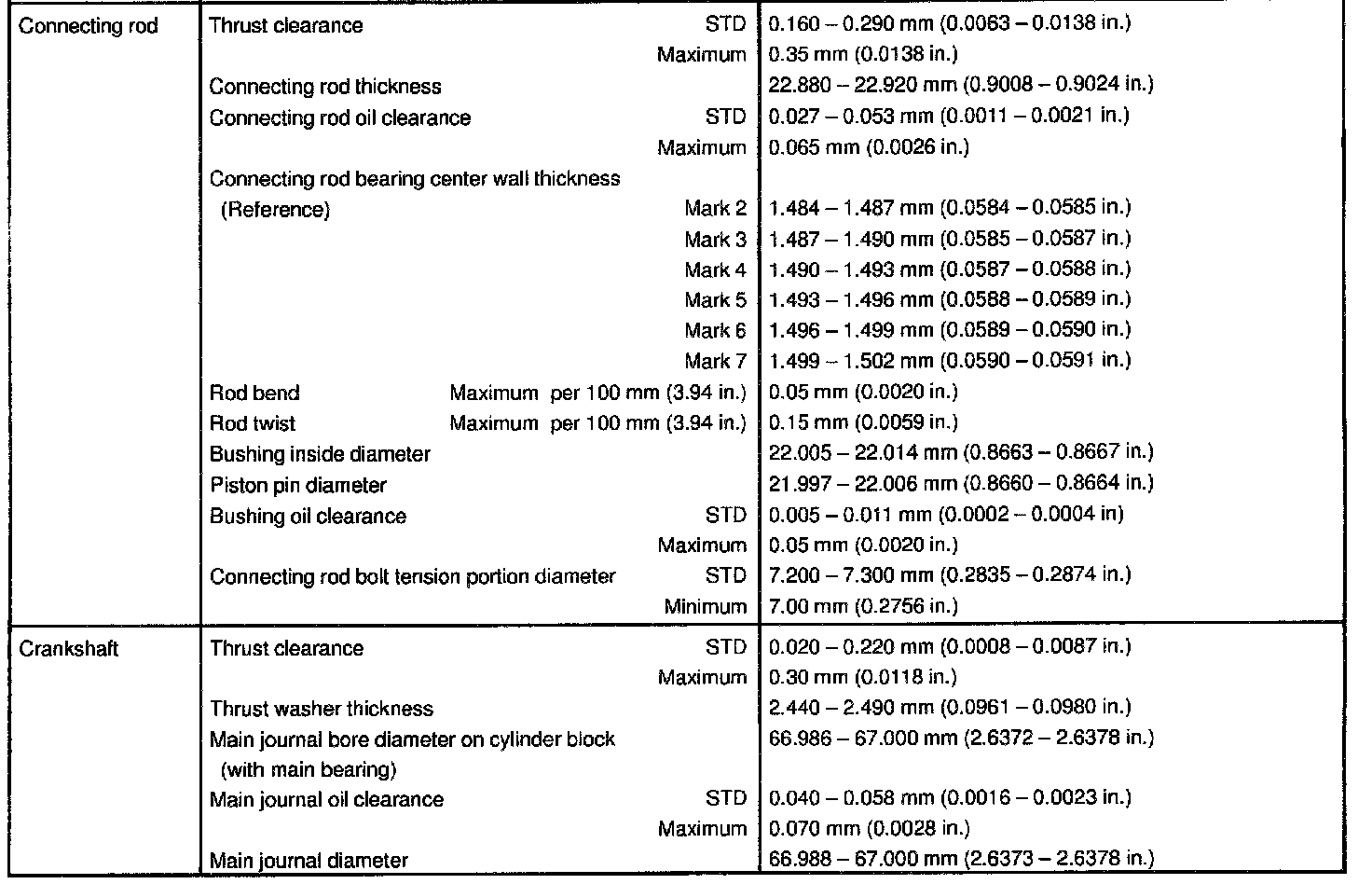

2UZ-FE Engine Mechanical Cont.:

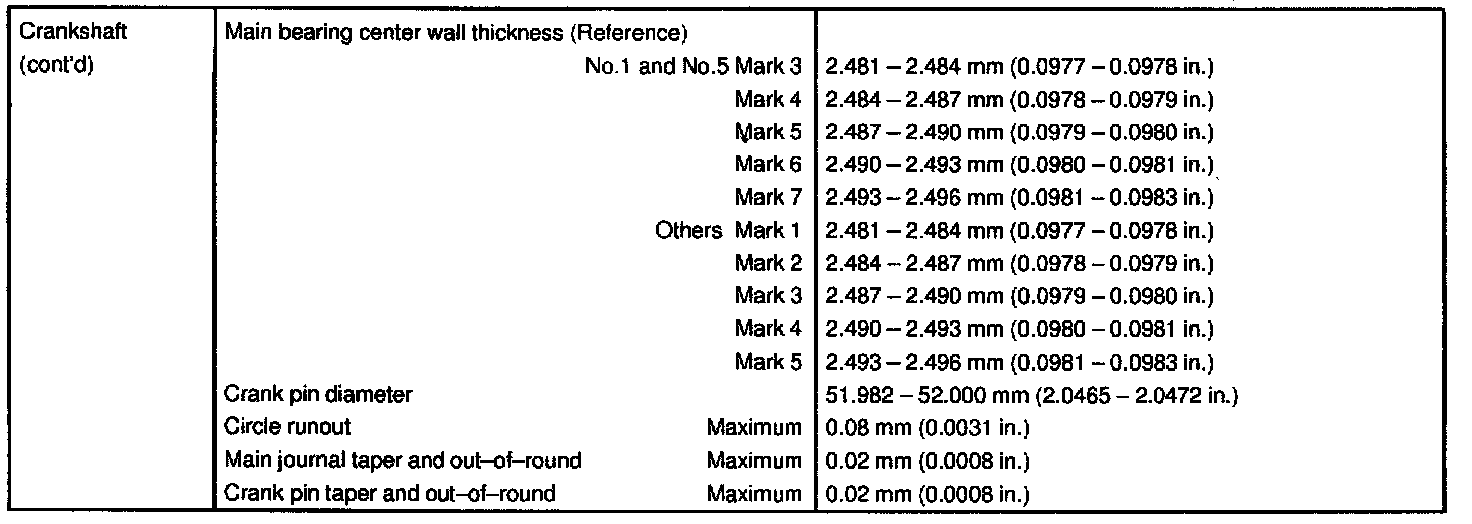

2UZ-FE Engine Mechanical Cont.:
