Steering Column Control Module: Testing and Inspection

ECU Power Source Circuit

CIRCUIT DESCRIPTION

The ECU power source supplies power to the CPU and sensors etc.power is supplied to the ECU even when the ignition switch is lock position.

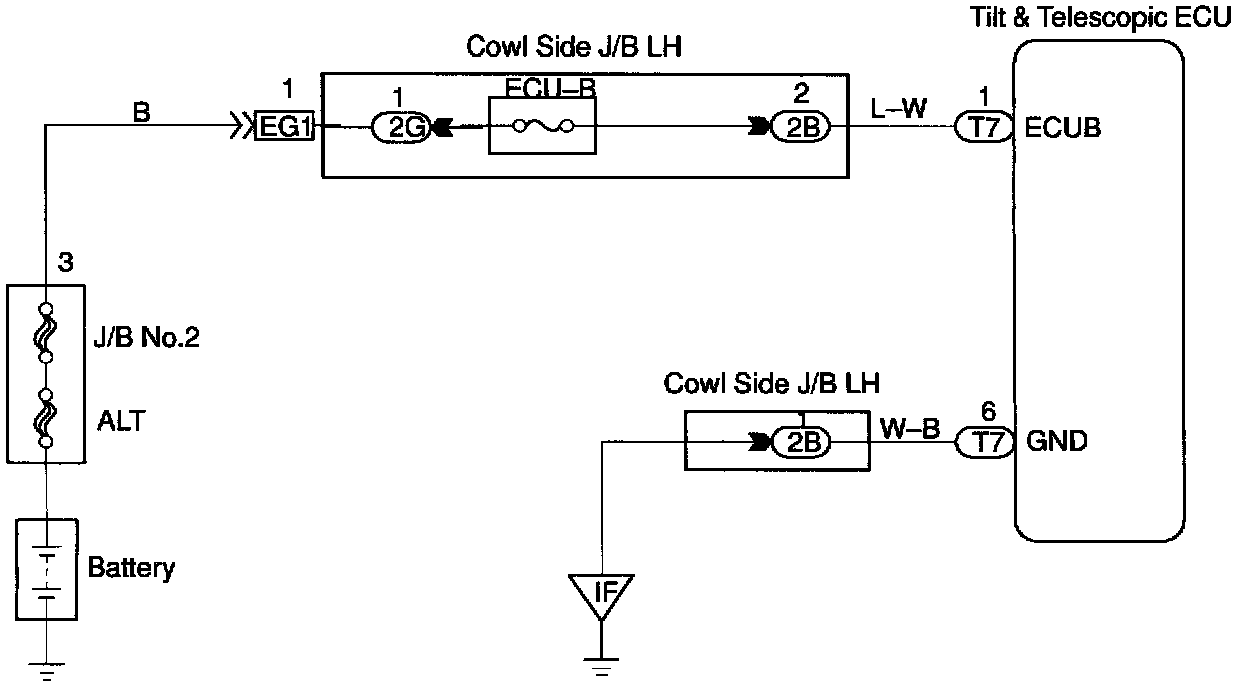

WIRING DIAGRAM

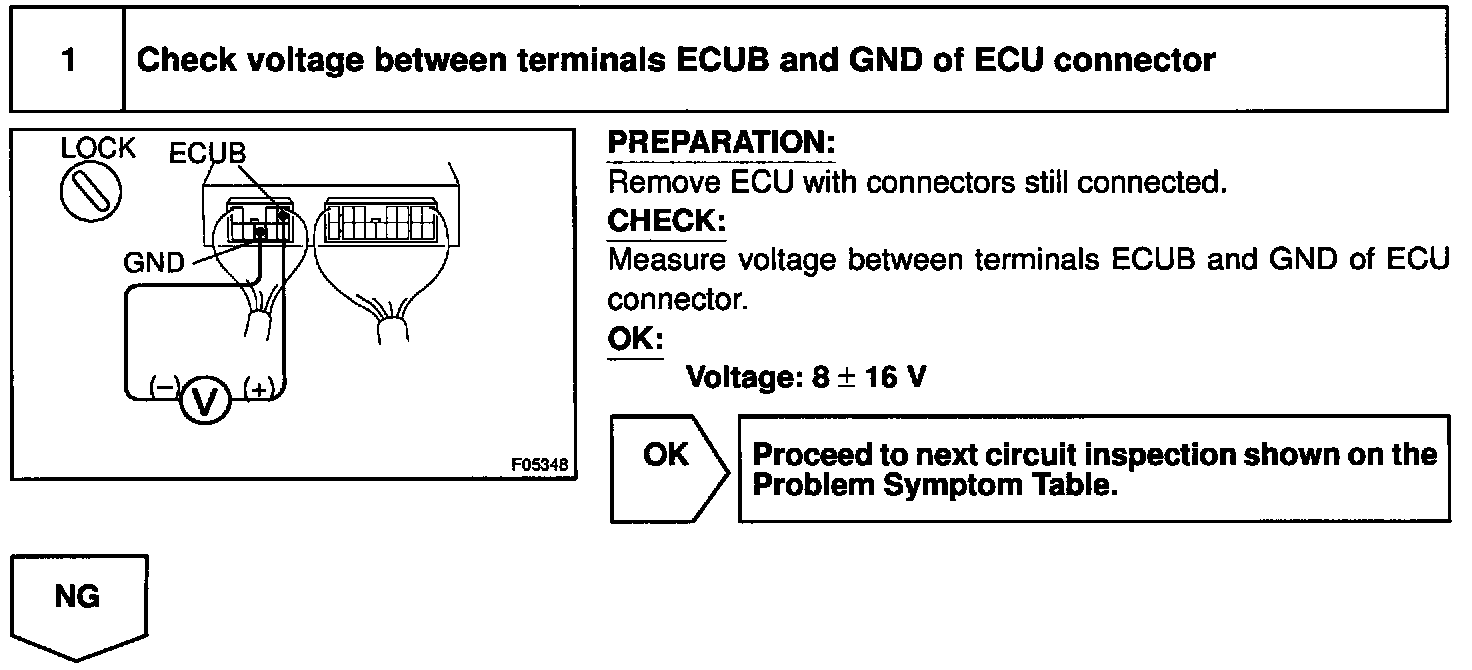

Step 1:

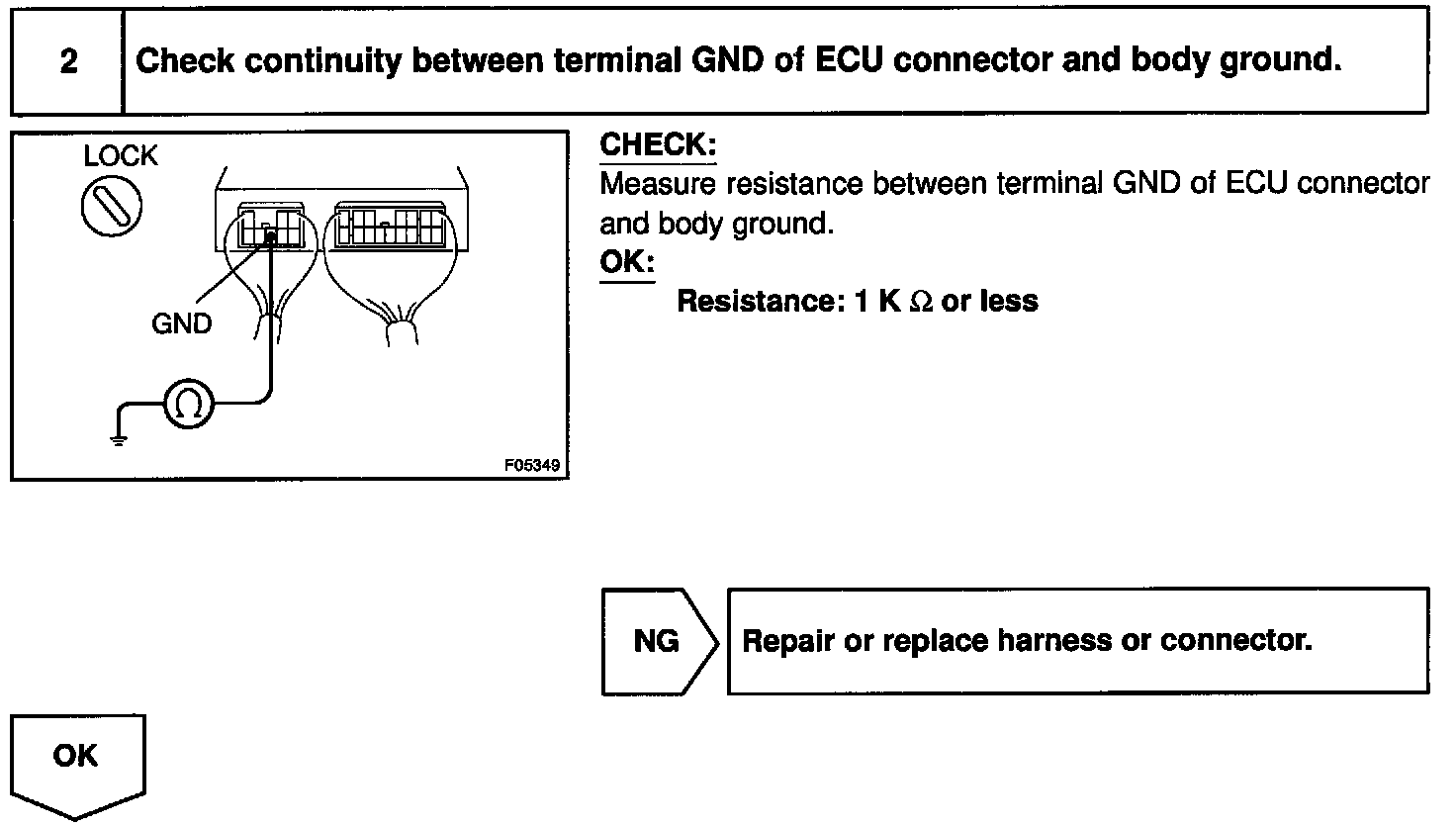

Step 2:

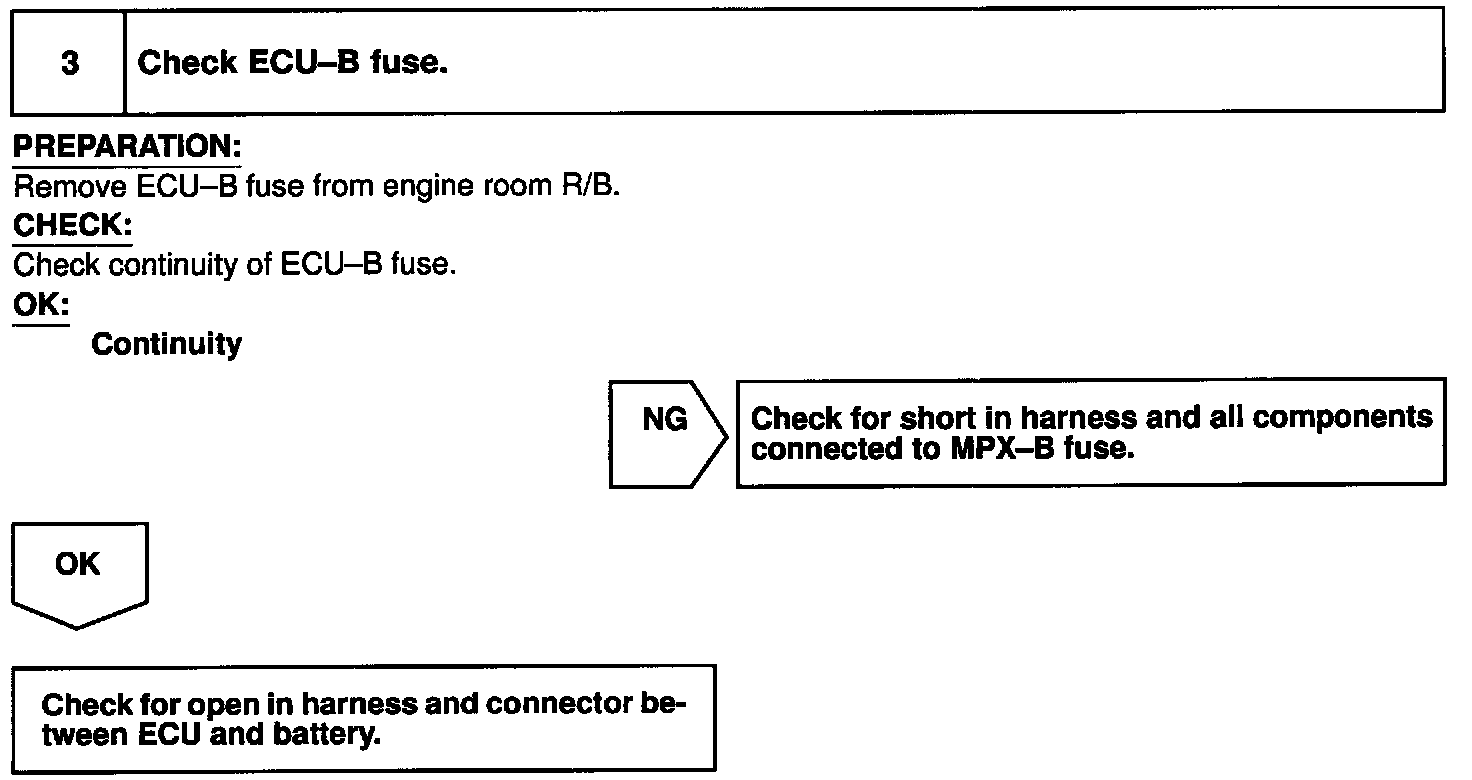

Step 3:

INSPECTION PROCEDURE
