Diagrams
>>
Exploded Views
>>
Axle Shaft
>>
Automatic Transaxle
Automatic Transaxle

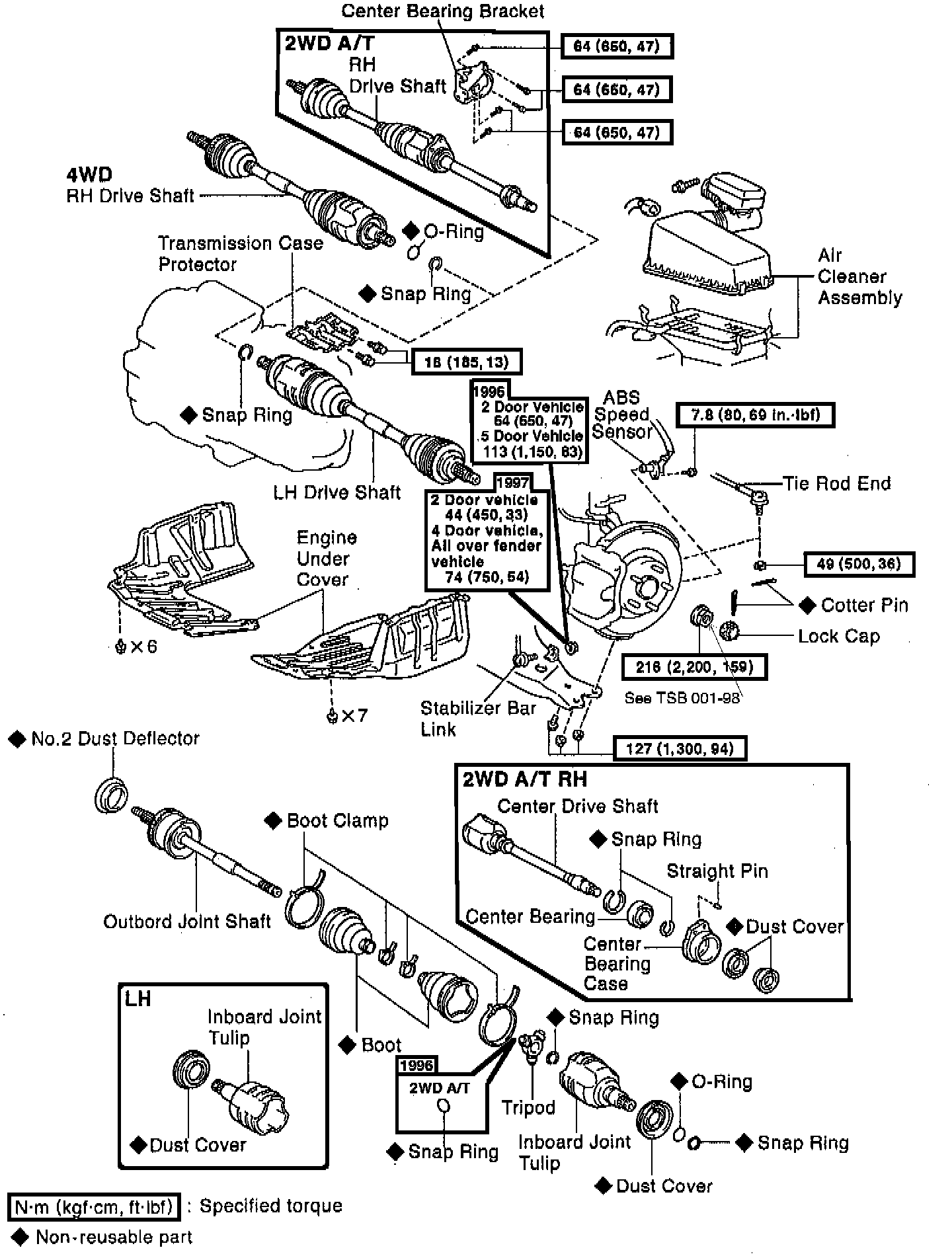

Front Drive Shaft Components - 2WD A/T & 4WD:
