Crankshaft Position Sensor: Testing and Inspection

CRANKSHAFT POSITION SENSOR INSPECTION

INSPECT CRANKSHAFT POSITION SENSOR
(a) Disconnect the crankshaft position sensor connector.

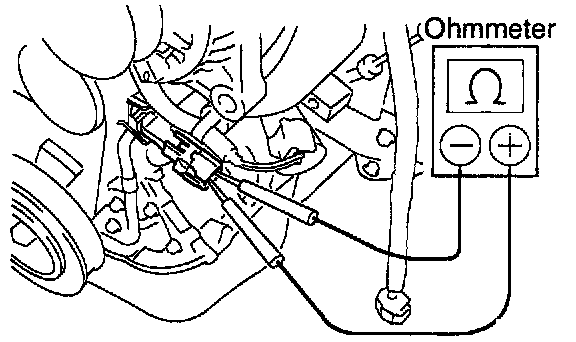

(b) Using an ohmmeter, measure the resistance between terminals.





Resistance:

If the resistance is not as specified, replace the sensor
(c) Reconnect the crankshaft position sensor connector.
