Main Relay (Computer/Fuel System): Locations

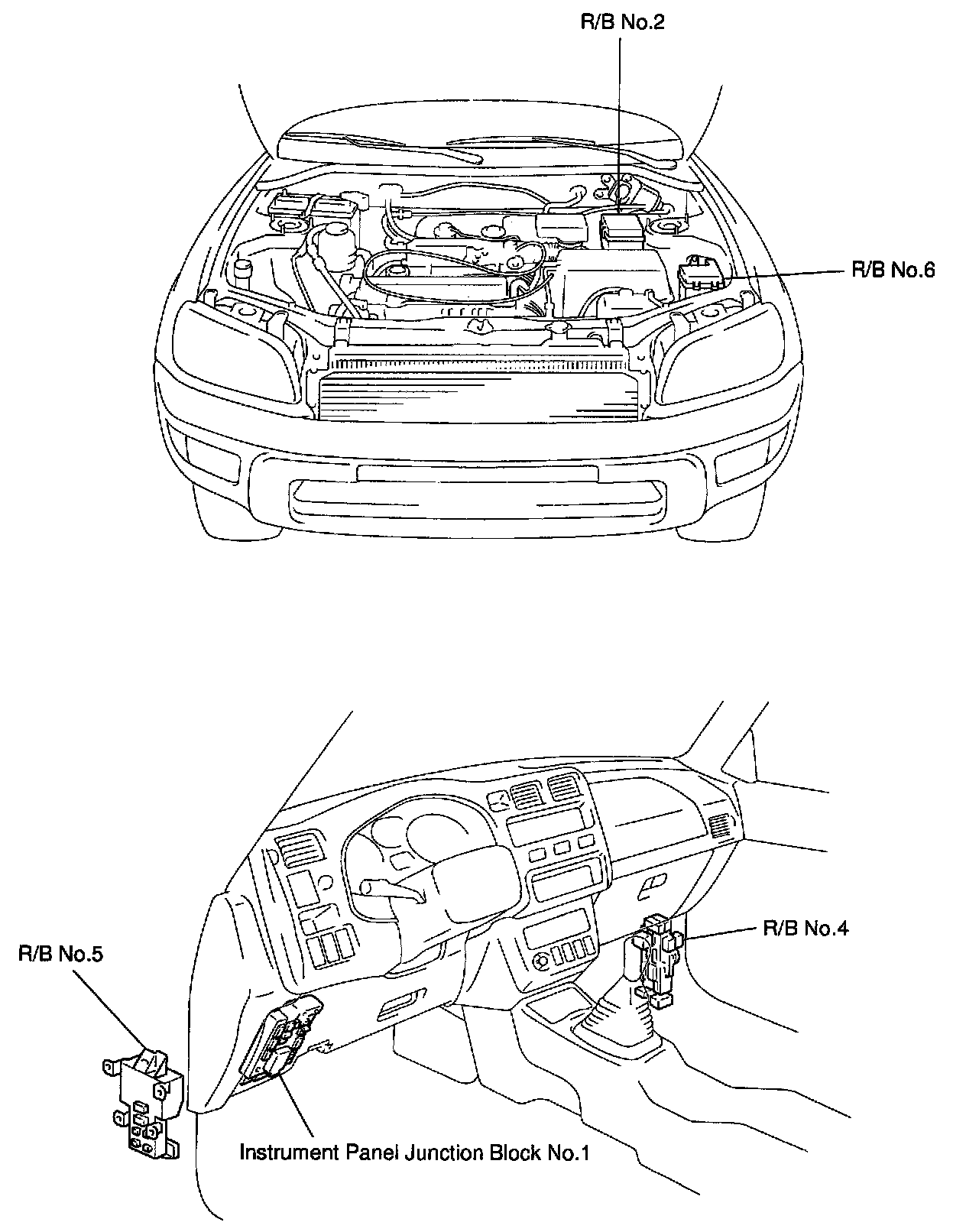

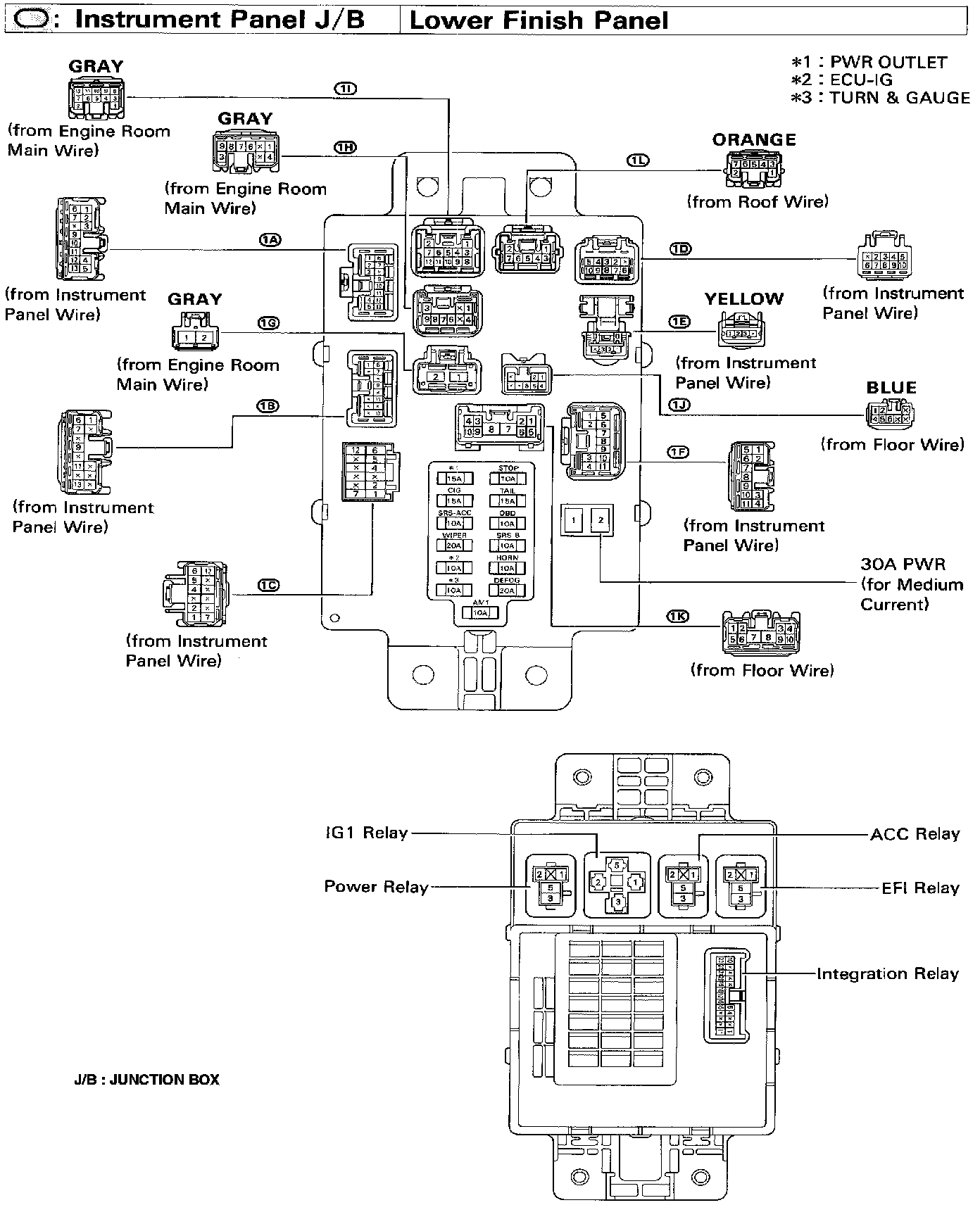

Locations-Instrument Panel J/B, Lower Finish Panel (Fig 20):

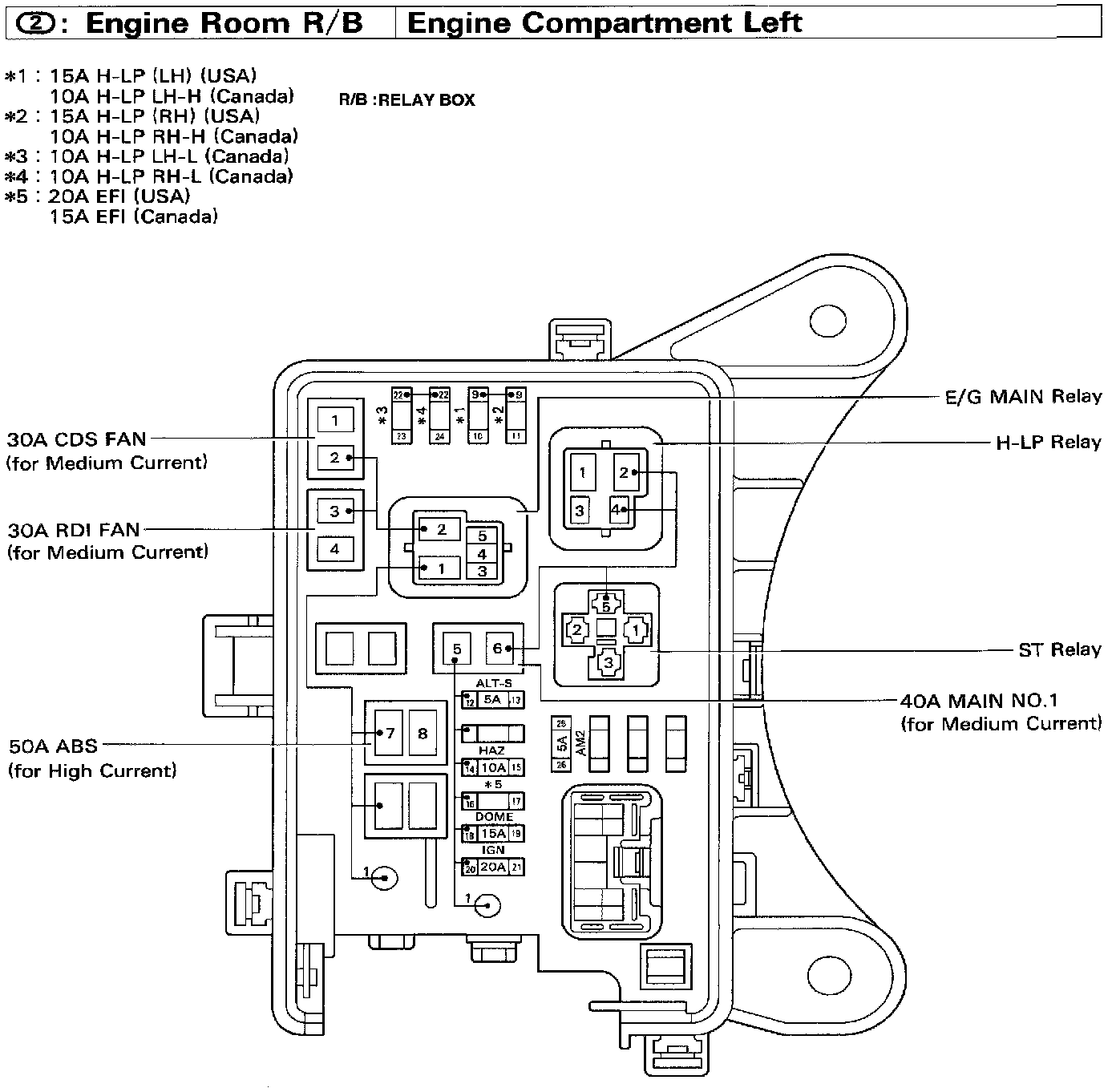

Locations-Engine Room R/B, Engine Compartment Left (Fig 24):

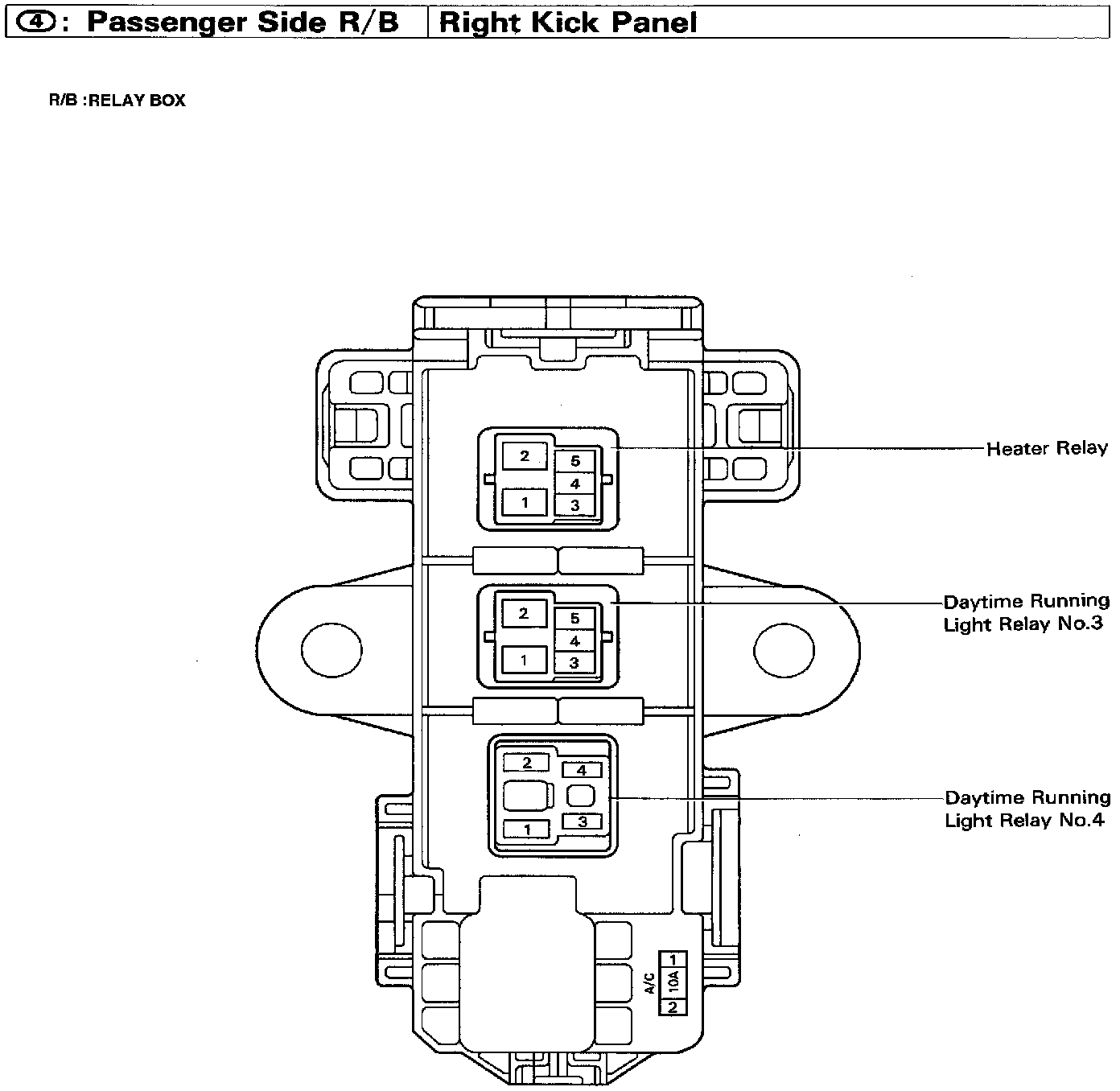

Locations-Passenger Side R/B, Right Kick Panel (Fig 25):

Locations-Driver Side R/B, Left Kick Panel (Fig 26):

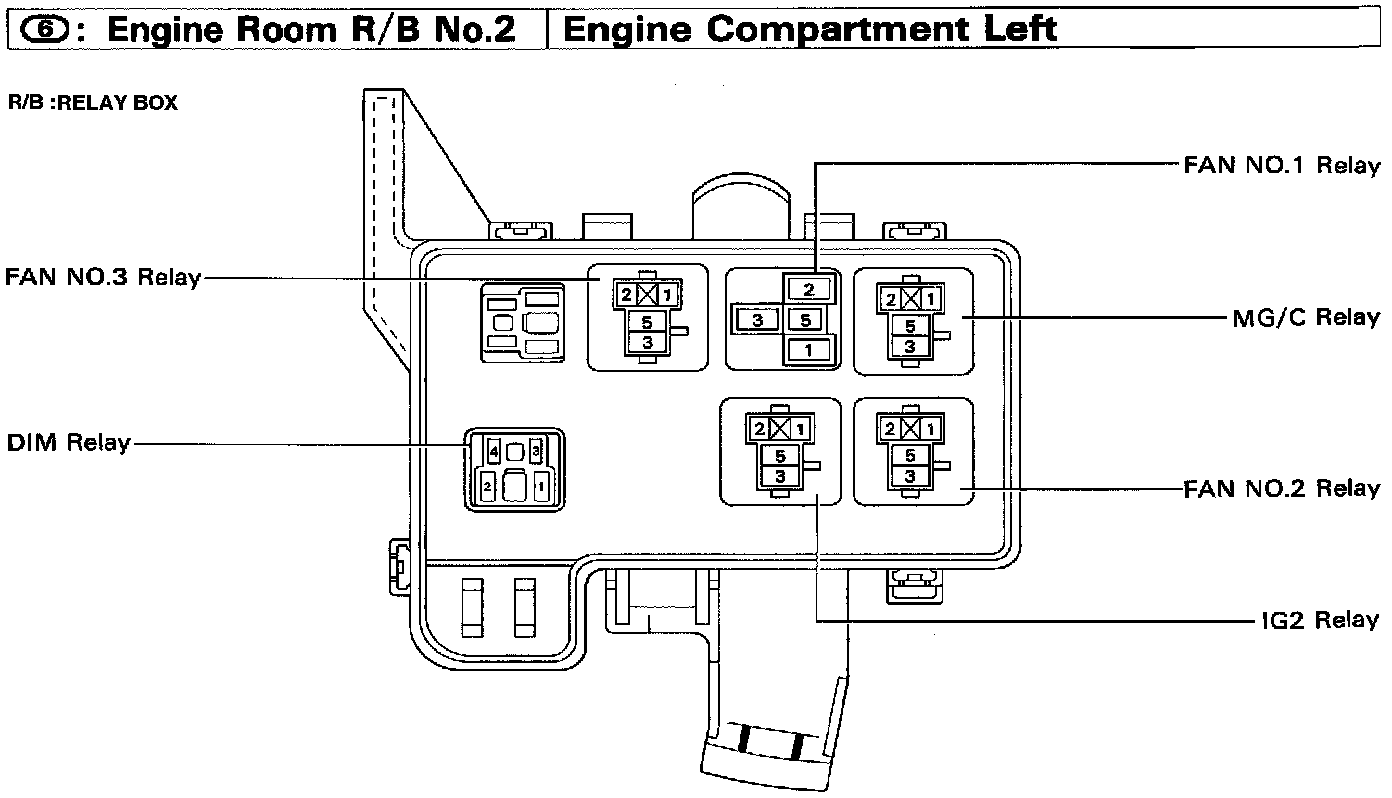

Locations-Engine Room R/B No.2, Engine Room Compartment Left (Fig 27):

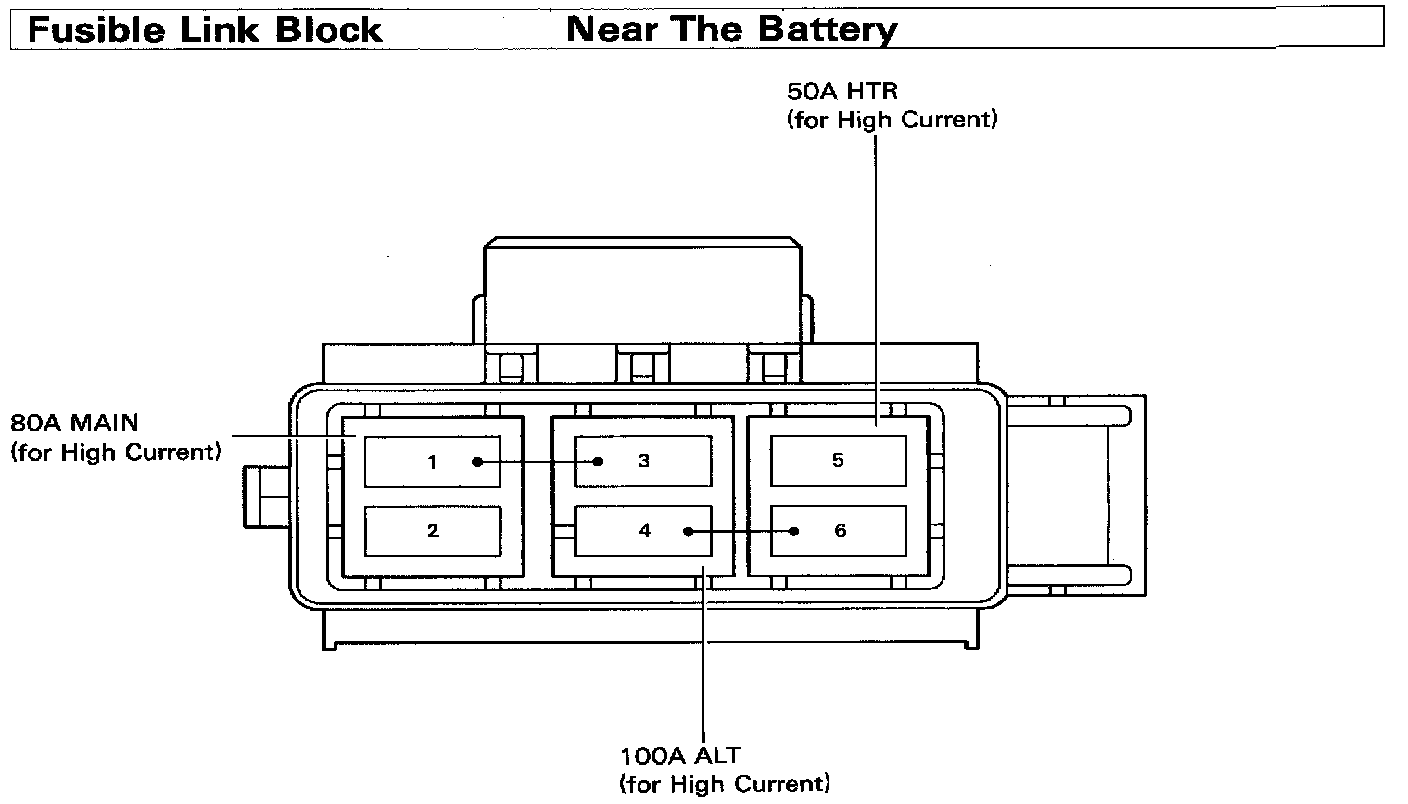

Fusible Link Block Near The Battery (Fig 27):

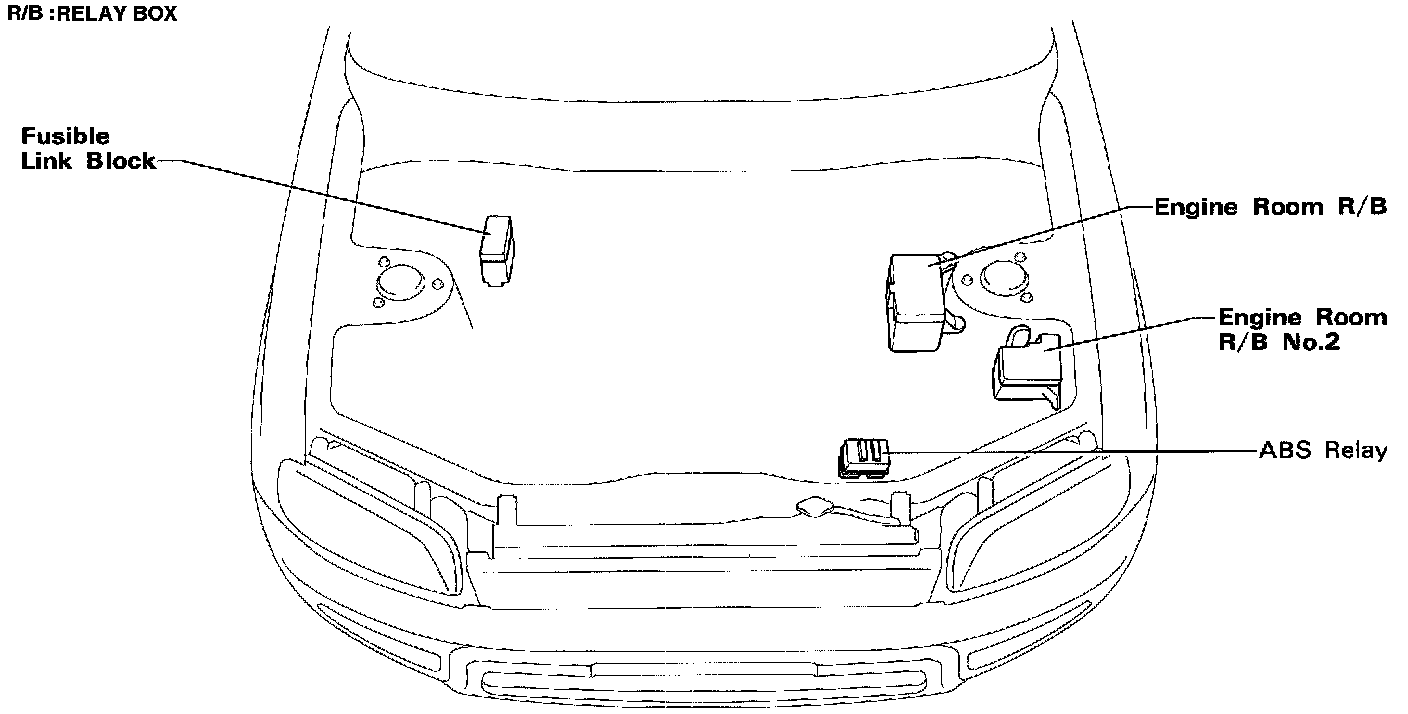

Locations-Engine Compartment (Fig 18):

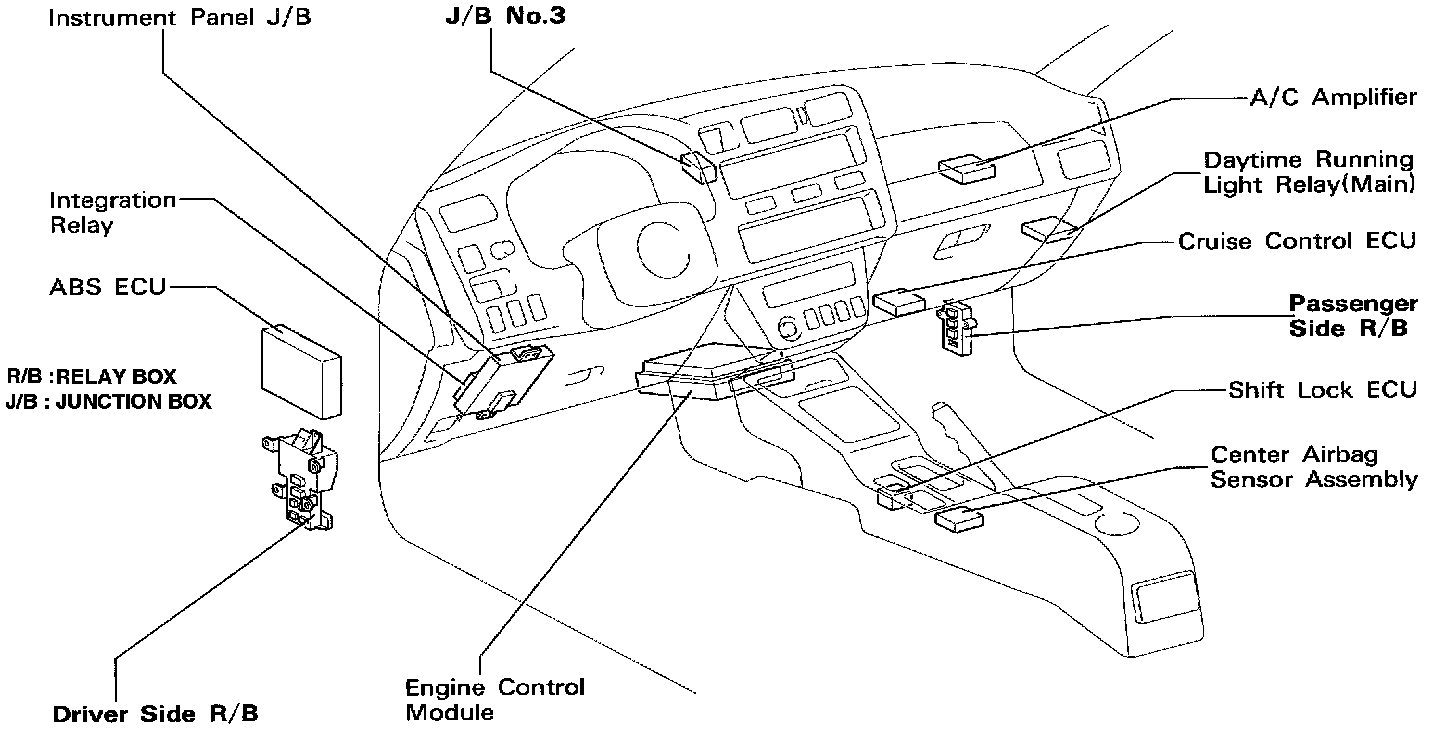

Locations-Instrument Panel (Fig 18):

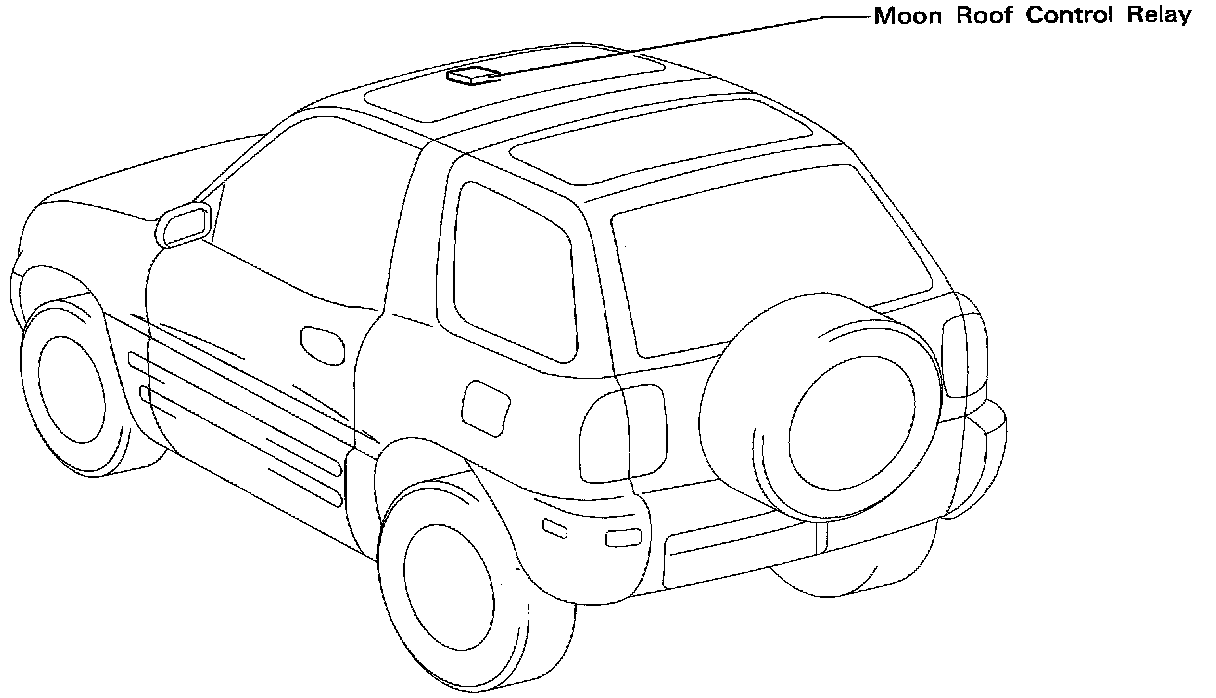

Locations-Body (Fig 19):

Locations-Body (Fig 19):
