Engine Control - MAP Sensor, Vacuum Line Shortened

ENGINE
EG009-98

July 17, 1998

Title:
VACUUM HOSE PRODUCTION CHANGE

Models:
'98 RAV4

Introduction

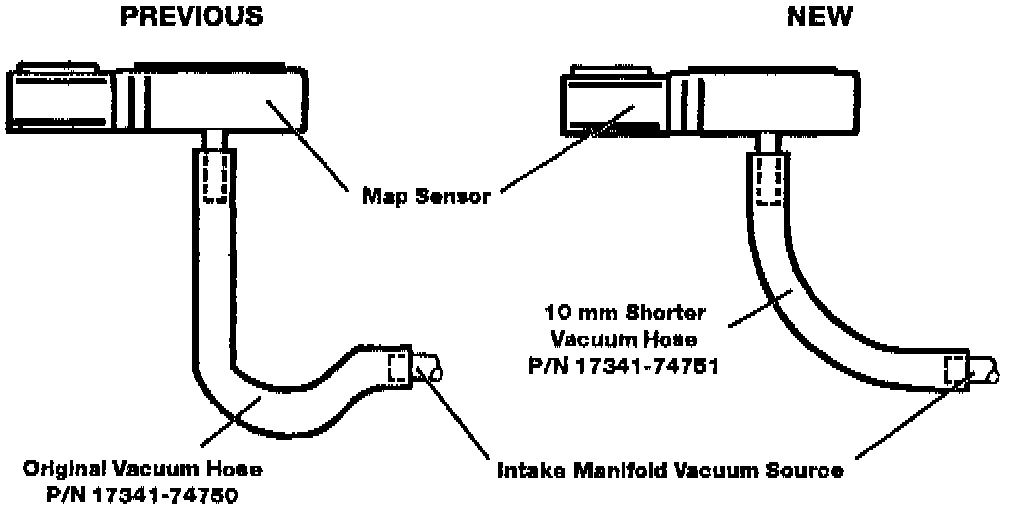

To minimize moisture retention and improve MAP Sensor operation, the length of the connecting vacuum line has been shortened 10 mm.

Affected Vehicles

^ 1998 model year RAV4s built after the following VINs have the new style hose installed:

JT3YP10V*W0170362
JT3HP10V*W0154688
JT3HP10V*W7074617
JT3XP10V*W0008479
JT3GP10V*W0018617
JT3GP10V*W7024861

Parts Information

OLD PART NUMBER NEW PART NUMBER PART NAME

17341-74750 17341-74751 Hose, Vacuum

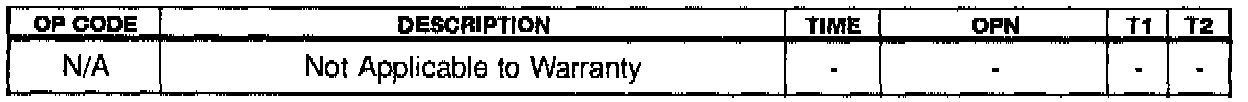

Warranty Information
