Engine: Diagrams

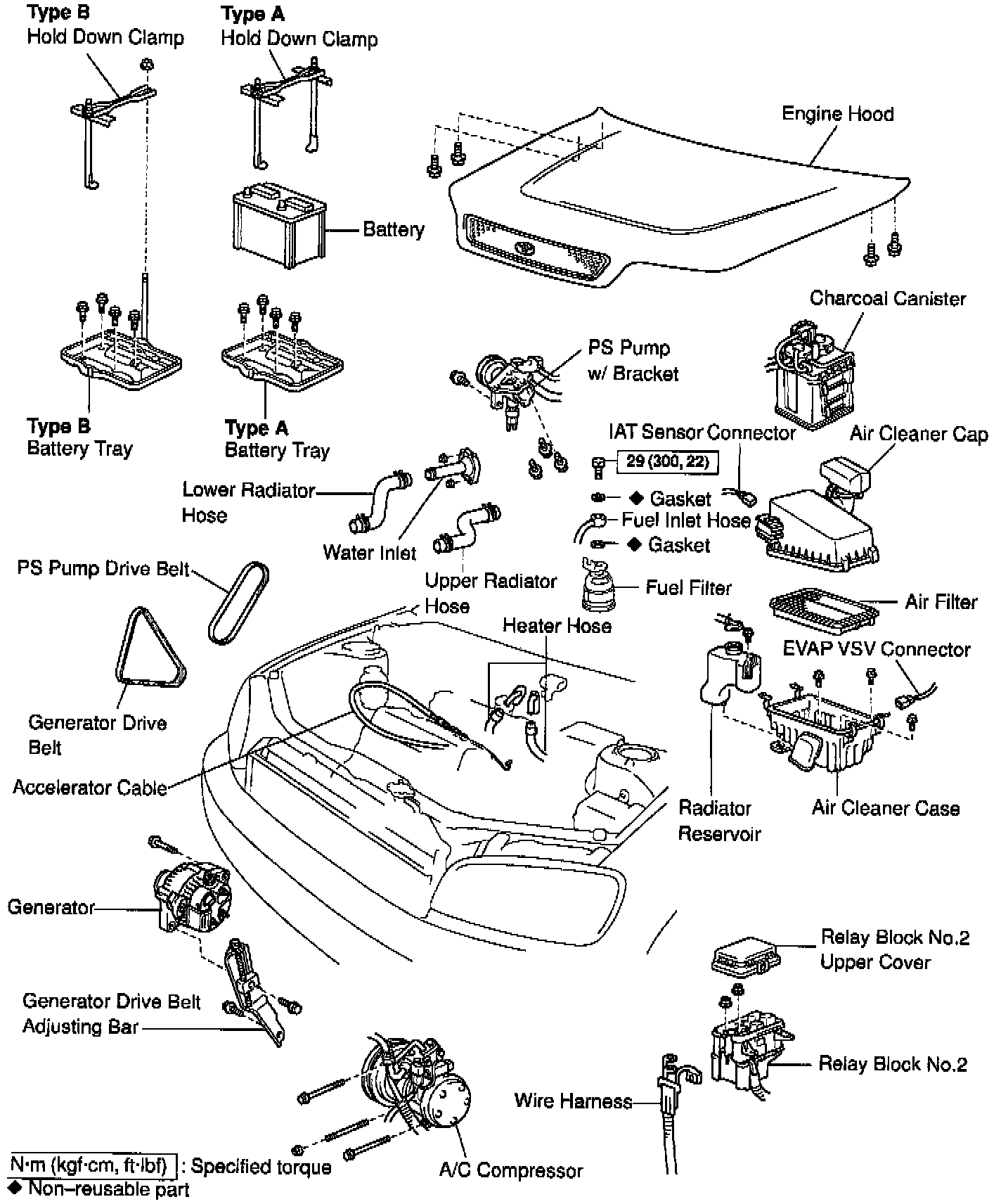

UNDER HOOD COMPONENTS

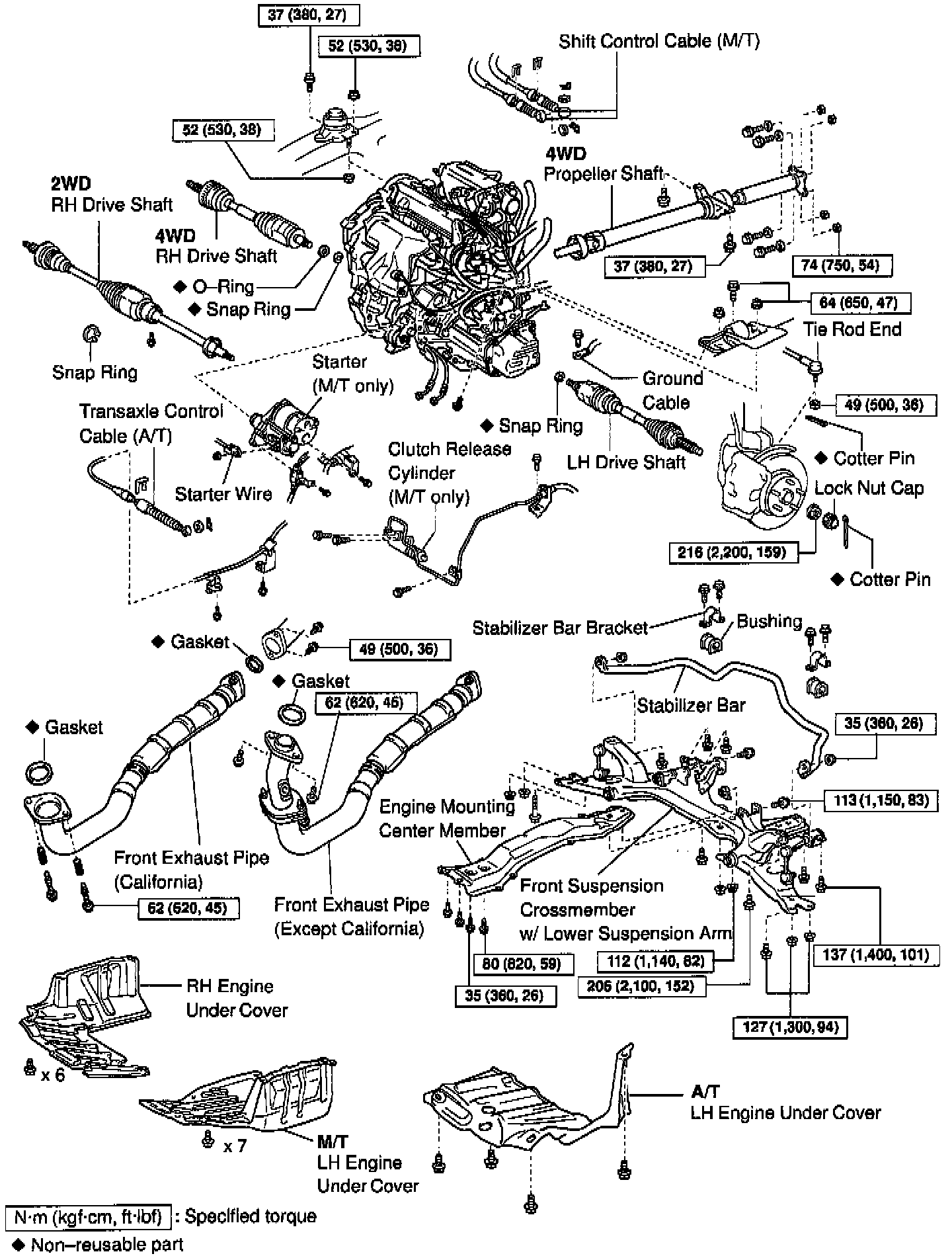

ENGINE AND TRANSAXLE ASSEMBLY

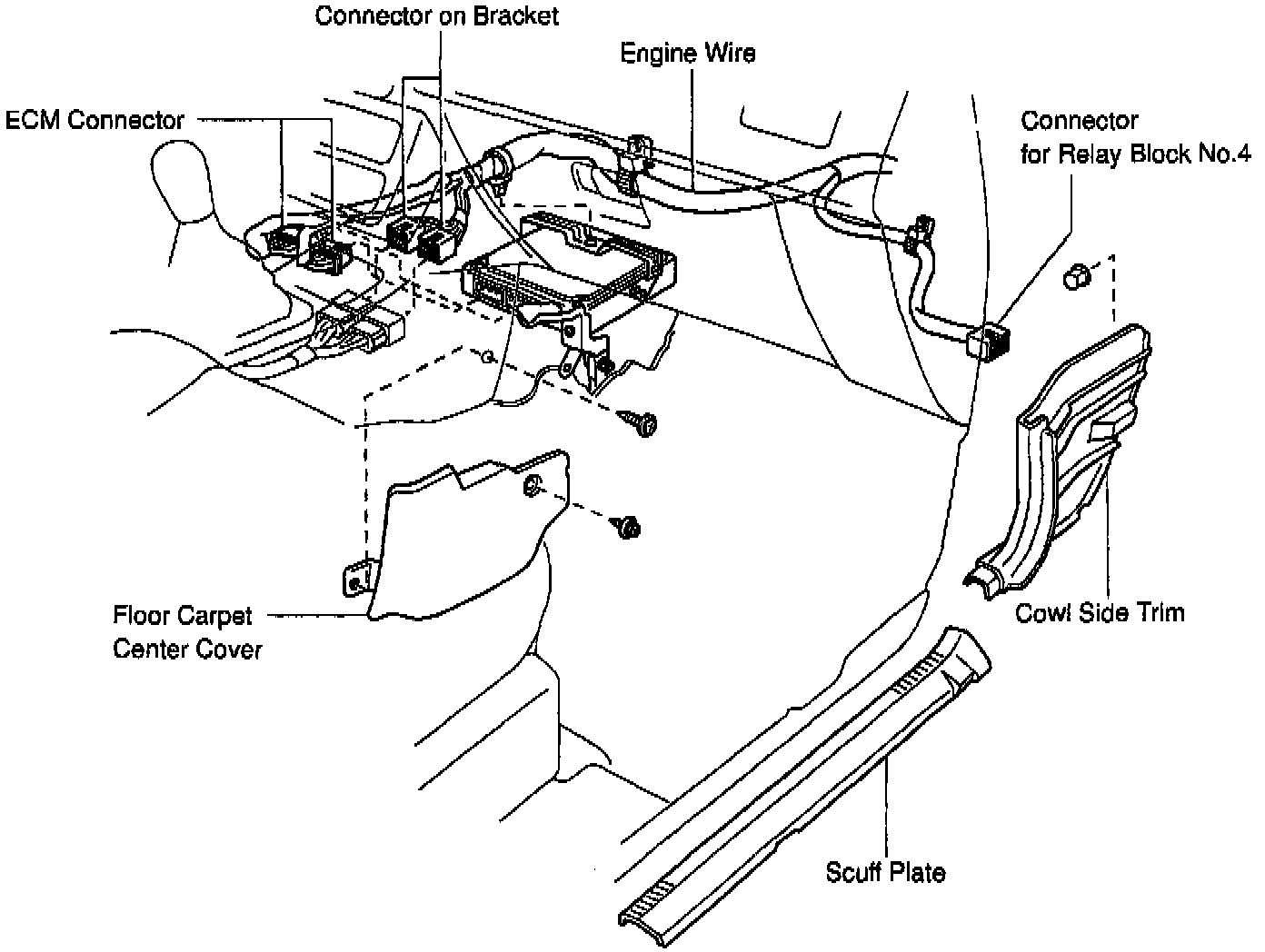

SCUFF PLATE, ECM CONNECTOR AND COWL SIDE TRIM
