D/F Technical Data

Conventional Differential, Clearances/Tolerances:

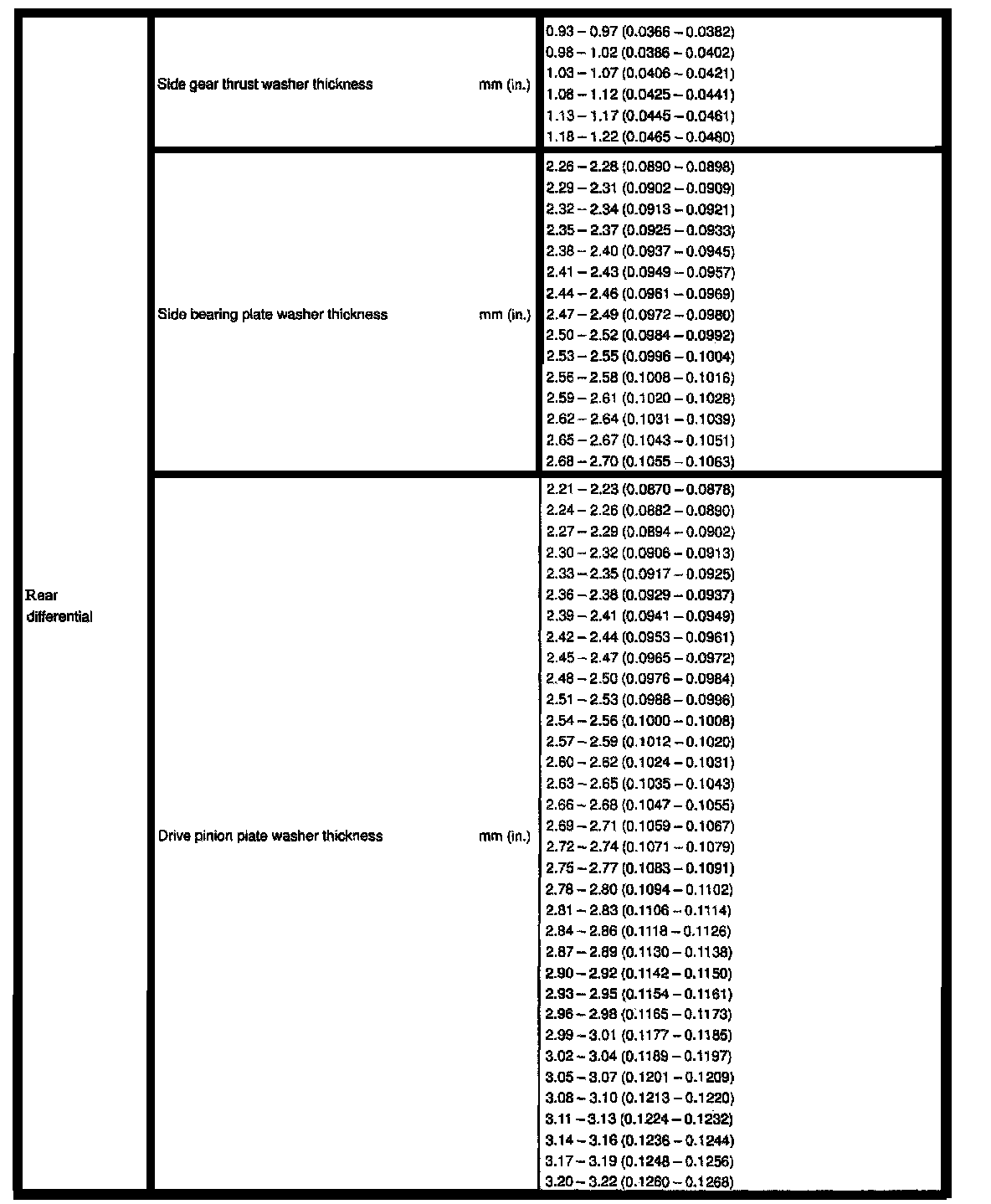

Conventional Differential, Bearing/Pinion Thickness:
