Water Pump
Water Pump

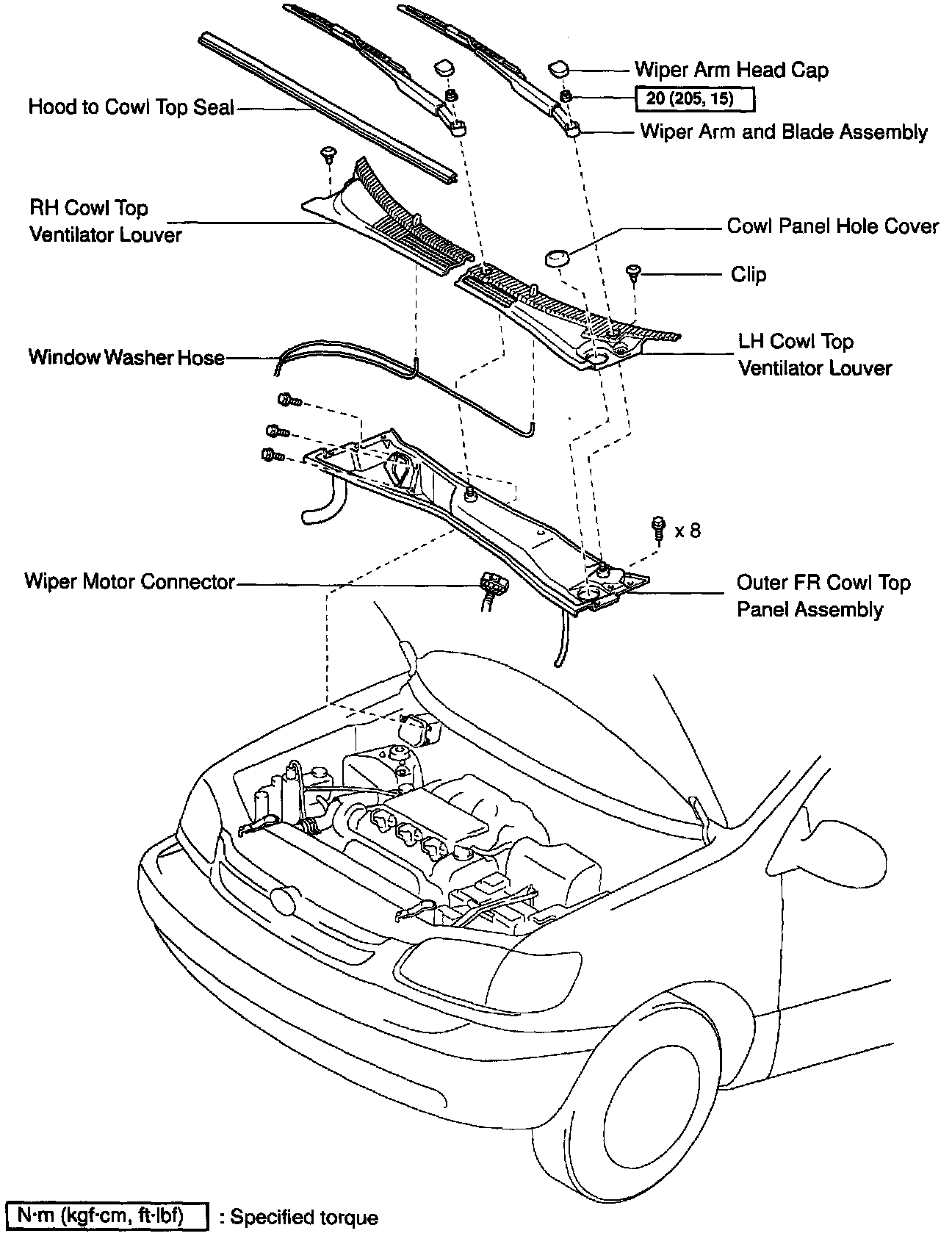

VENTILATOR LOUVER
UNDERHOOD VIEW

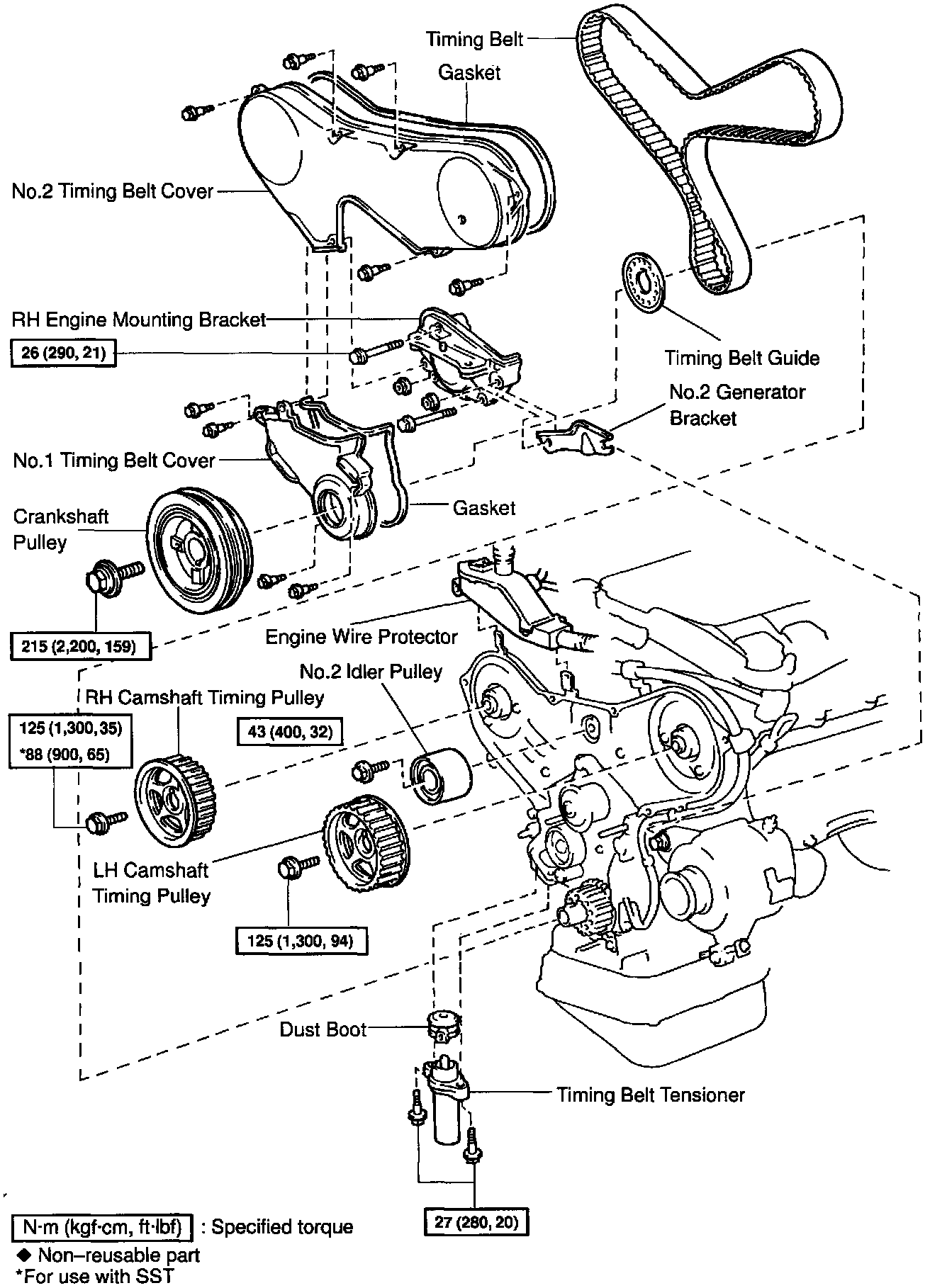

TIMING BELT
AND RELATED COMPONENTS

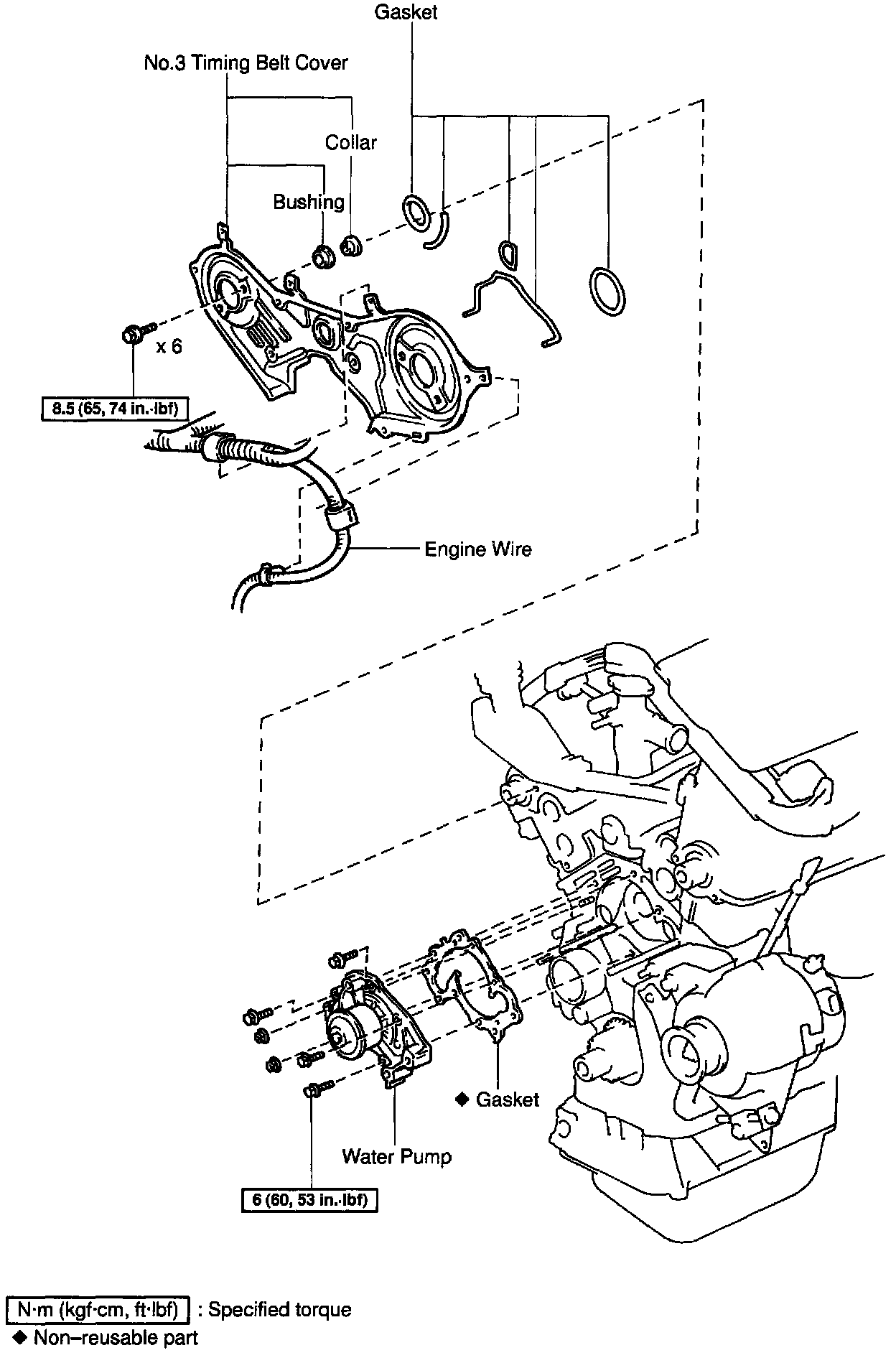

WATER PUMP ASSEMBLY AND RELATED COMPONENTS
