Sienna LE V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry
Keyless Entry

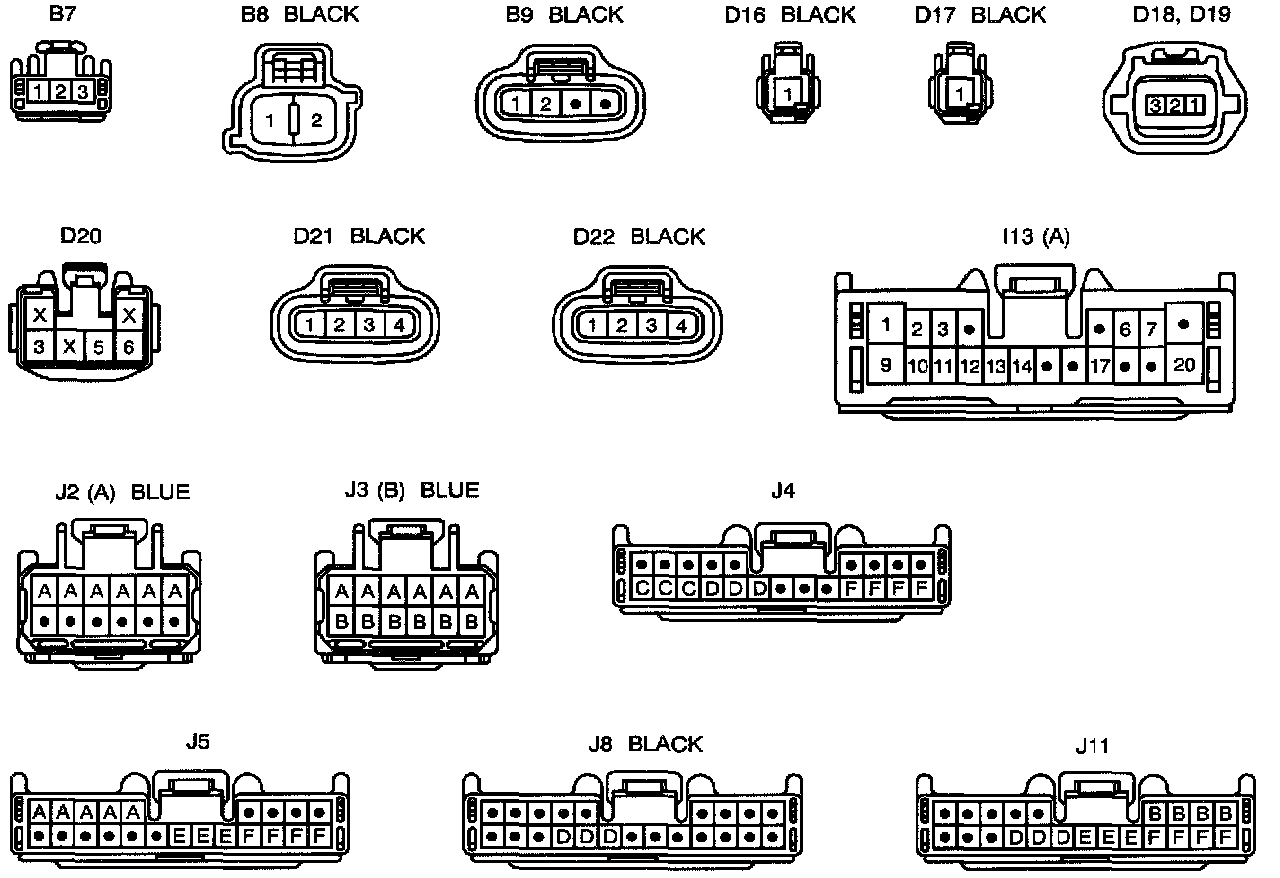

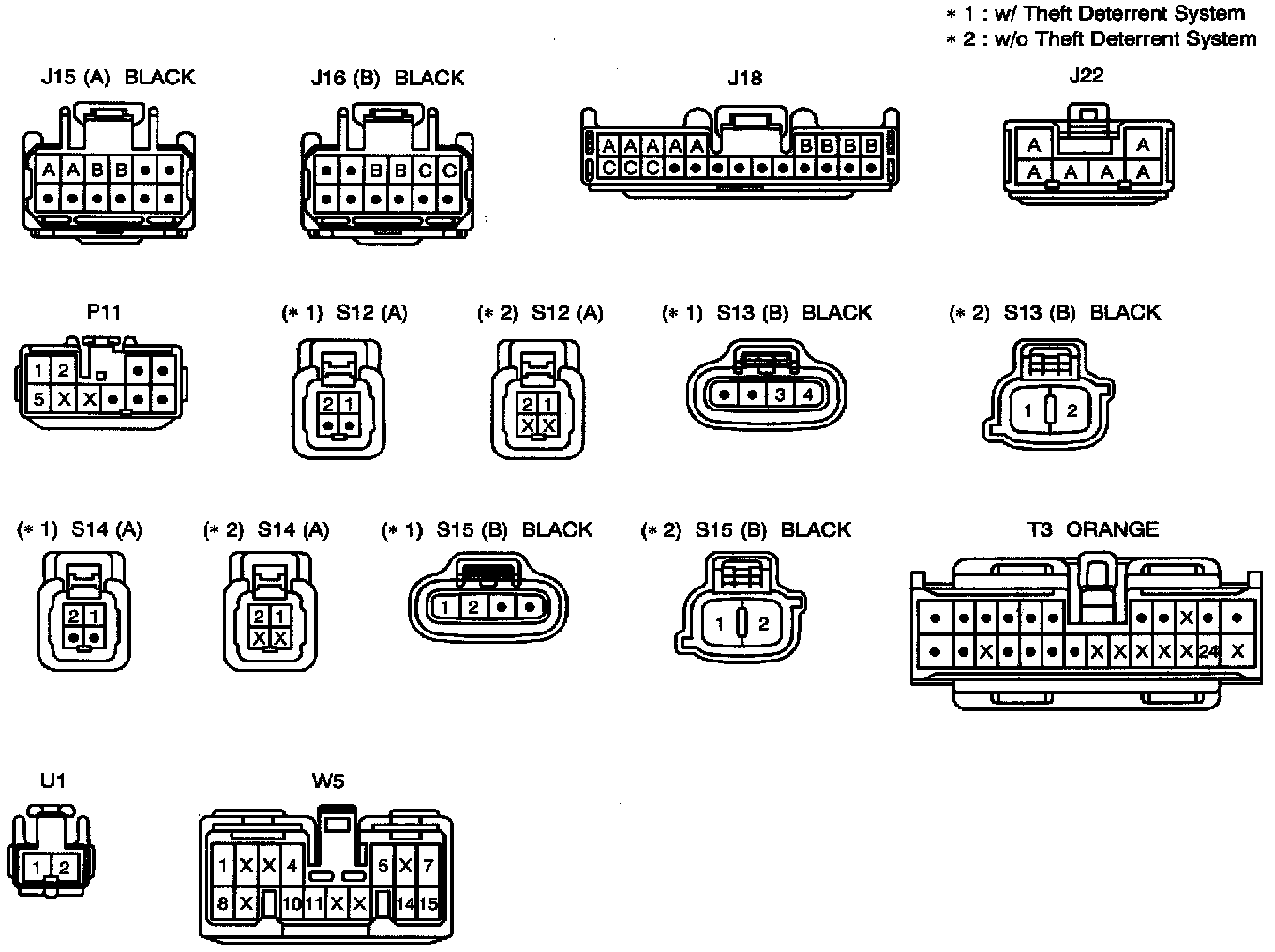

Wireless Door Lock Control-Connectors:
Wireless Door Lock Control-Connectors:
