Engine Compartment

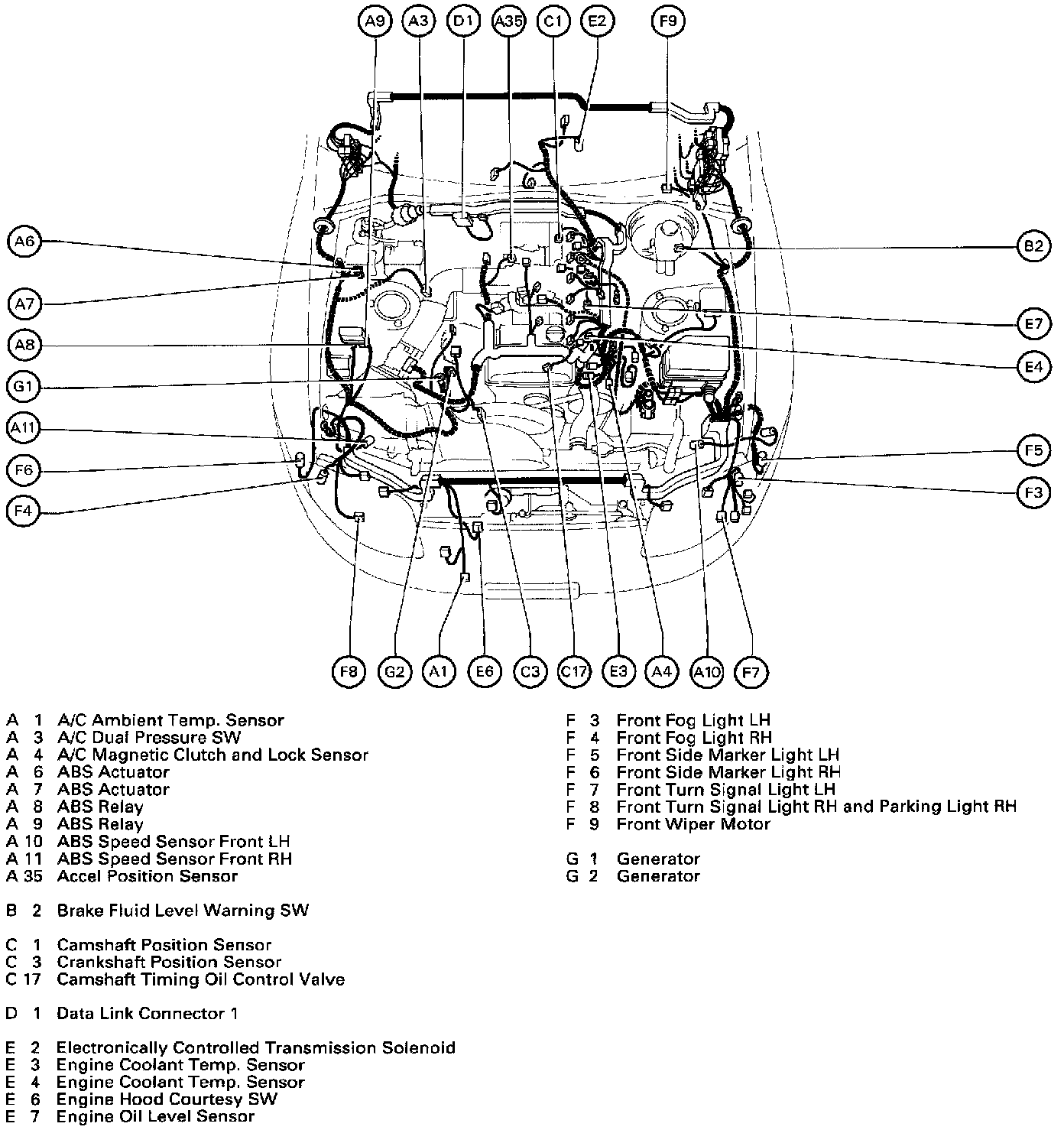

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 26):

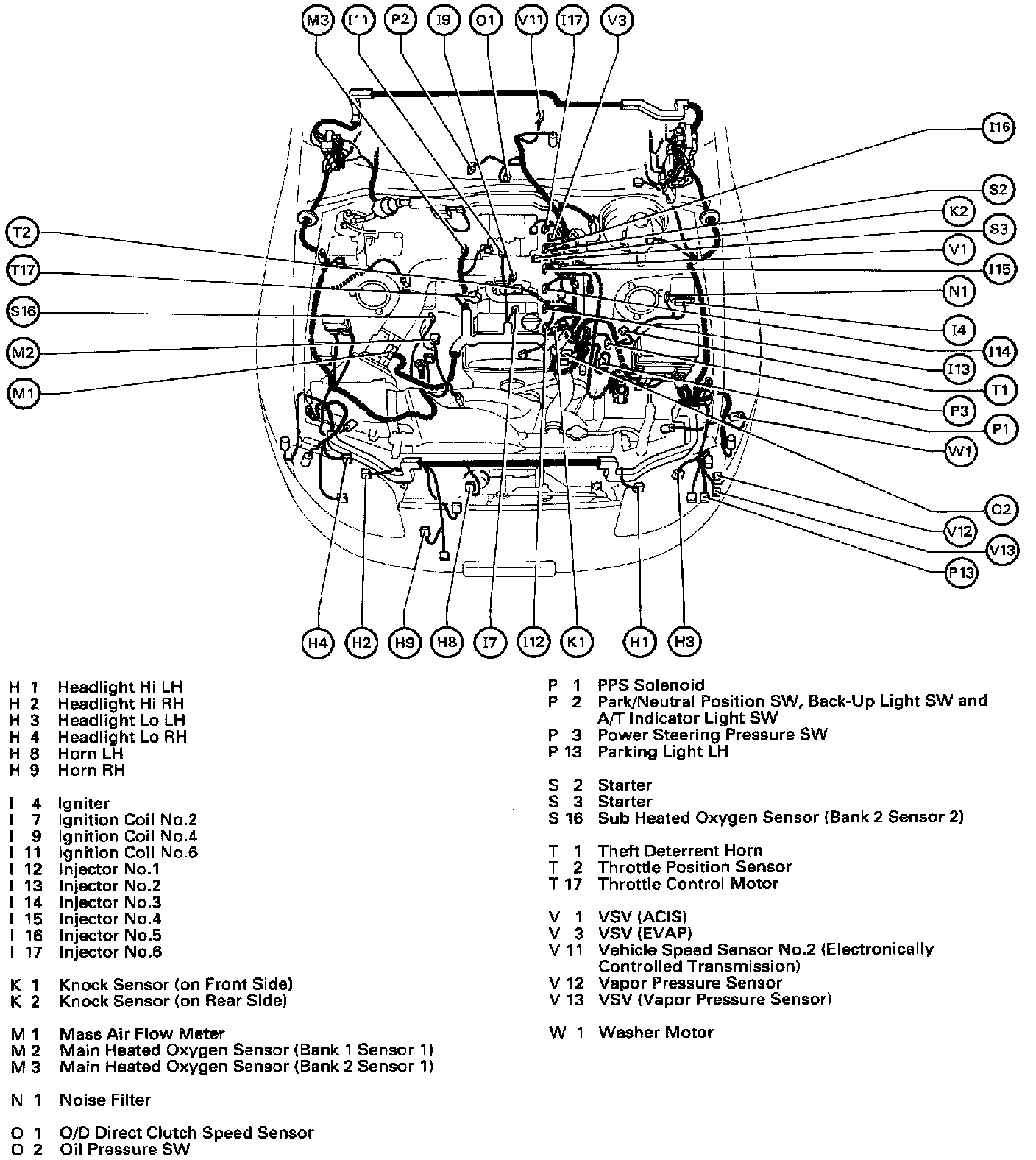

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 27):

A 1 A/C Ambient Temp. Sensor
A 3 A/C Dual Pressure SW
A 4 A/C Magnetic Clutch and Lock Sensor
A 6 ABS Actuator
A 7 ABS Actuator
A 8 ABS Relay
A 9 ABS Relay
A10 ABS Speed Sensor Front LH
A11 ABS Speed Sensor Front RH
A35 Accel Position Sensor

B 2 Brake Fluid Level Warning SW

C 1 Camshaft Position Sensor
C 3 Crankshaft Position Sensor
C 17 Camshaft Timing Oil Control Valve

D 1 Data Link Connector 1

E 2 Electronically Controlled Transmission Solenoid
E 3 Engine Coolant Temp. Sensor
E 4 Engine Coolant Temp. Sensor
E 6 Engine Hood Courtesy 5W
E 7 Engine Oil Level Sensor

F 3 Front Fog Light LH
F 4 Front Fog Light RH
F 5 Front Side Marker Light LH
F 6 Front Side Marker Light RH
F 7 Front Turn Signal Light LH
F 8 Front Turn Signal Light RH and Parking Light RH
F 9 Front Wiper Motor

G 1 Generator
G 2 Generator

H 1 Headlight Hi LH
H 2 Headlight Hi RH
H 3 Headlight Lo LH
H 4 Headlight Lo RH
H 8 Horn LH
H 9 Horn RH

I 4 Igniter
I 7 Ignition Coil No.2
I 9 Ignition Coil No.4
I11 Ignition Coil No.6
I12 Injector No.1
I13 Injector No.2
I14 Injector No.3
I15 Injector No.4
I16 Injector No.5
I17 Injector No.6

K 1 Knock Sensor (on Front Side)
K 2 Knock Sensor (on Rear Side)

M 1 Mass Air Flow Meter
M 2 Main Heated Oxygen Sensor (Bank 1 Sensor 1)
M 3 Main Heated Oxygen Sensor (Bank 2 Sensor 1)

N 1 Noise Filter

O 1 O/D Direct Clutch Speed Sensor
O 2 Oil Pressure SW

P 1 PPS Solenoid
P 2 Park/Neutral Position SW, Back-Up Light SW and A/T Indicator Light SW
P 3 Power Steering Pressure SW
P13 Parking Light LH

S 2 Starter
S 3 Starter
S16 Sub Heated Oxygen Sensor (Bank 2 Sensor 2)

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor
T17 Throttle Control Motor

V 1 VSV (ACIS)
V 3 VSV(EVAP)
V11 Vehicle Speed Sensor No.2 (Electronically Controlled Transmission)
V12 Vapor Pressure Sensor
V13 VSV (Vapor Pressure Sensor)

W 1 Washer Motor
