System Diagram

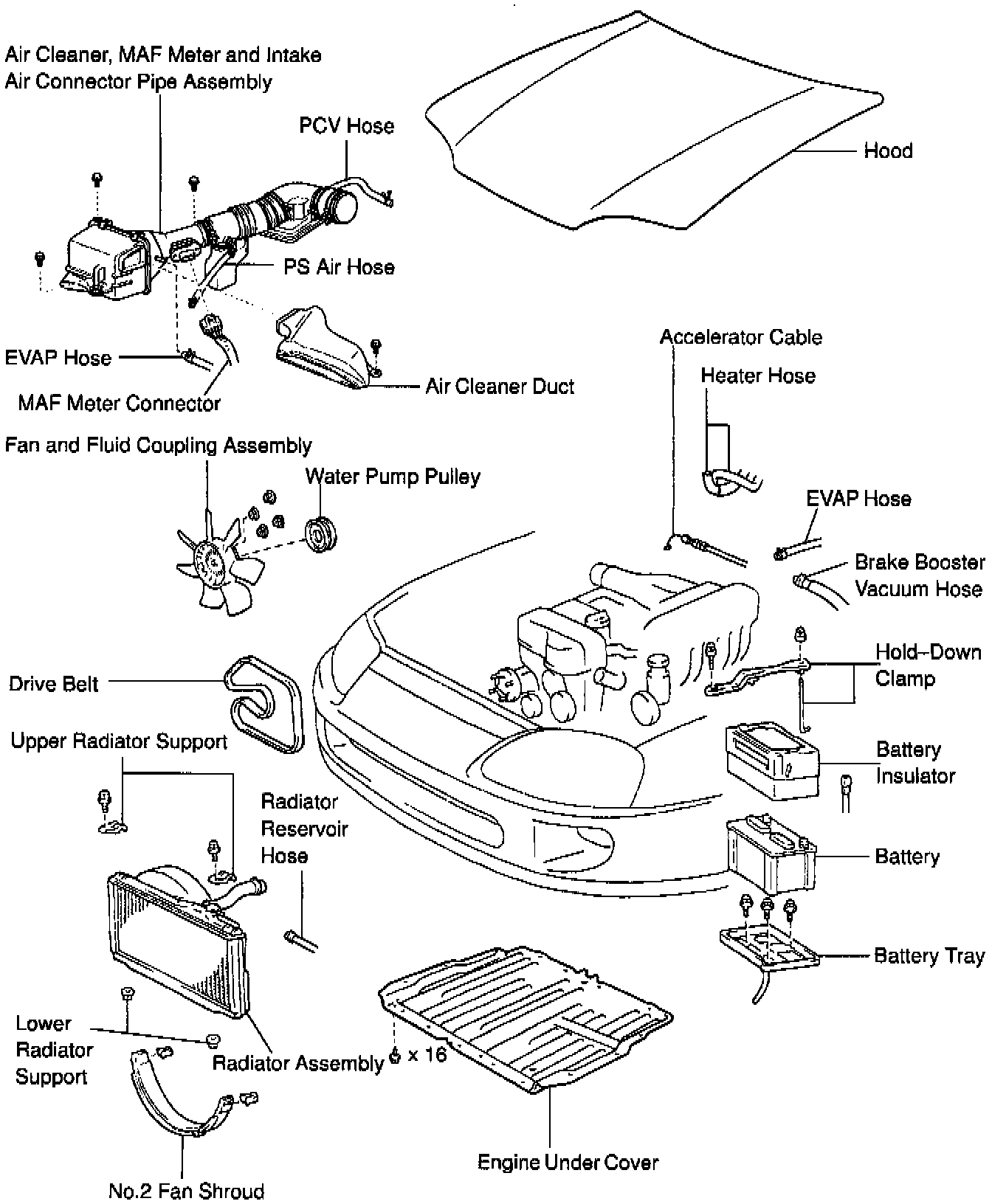

UNDERHOOD VIEW

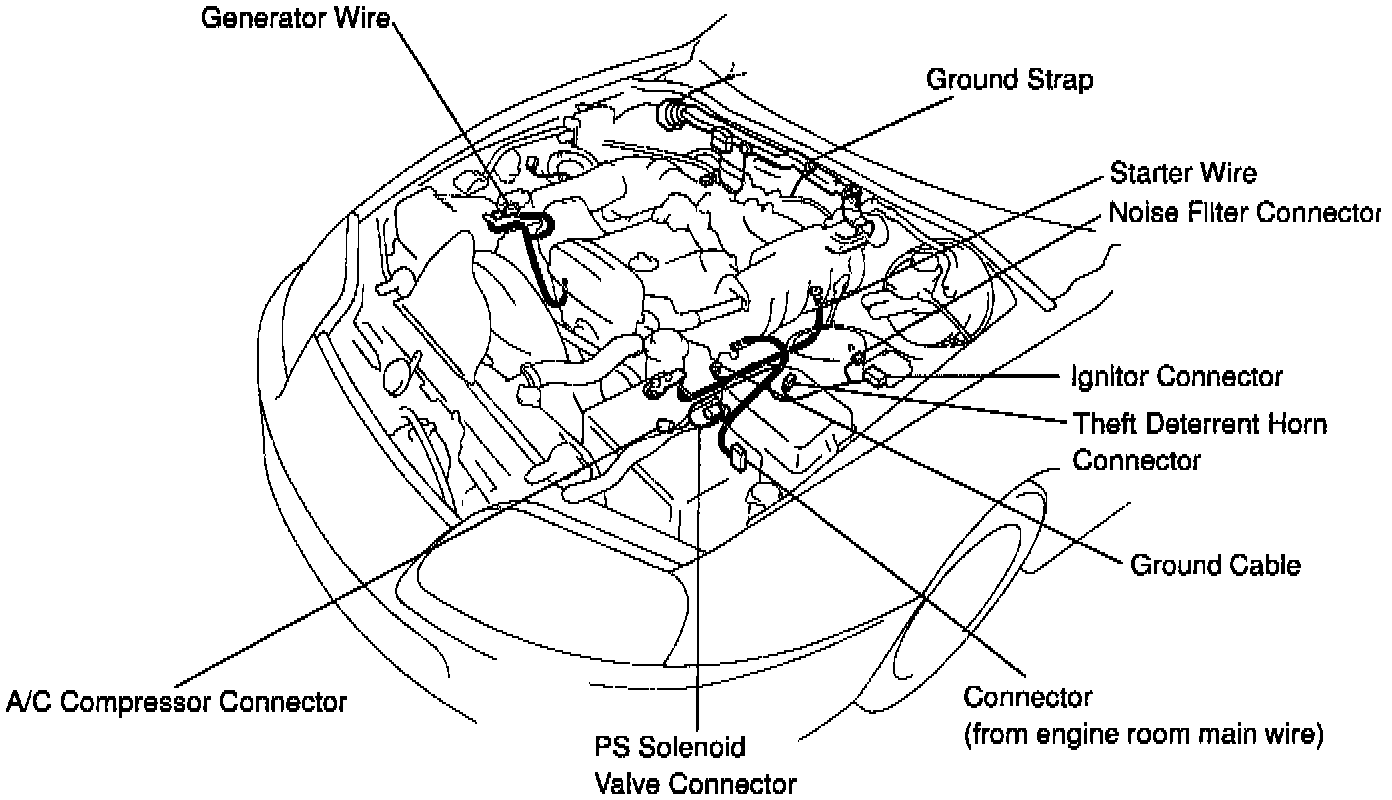

UNDERHOOD CONNECTOR LOCATIONS

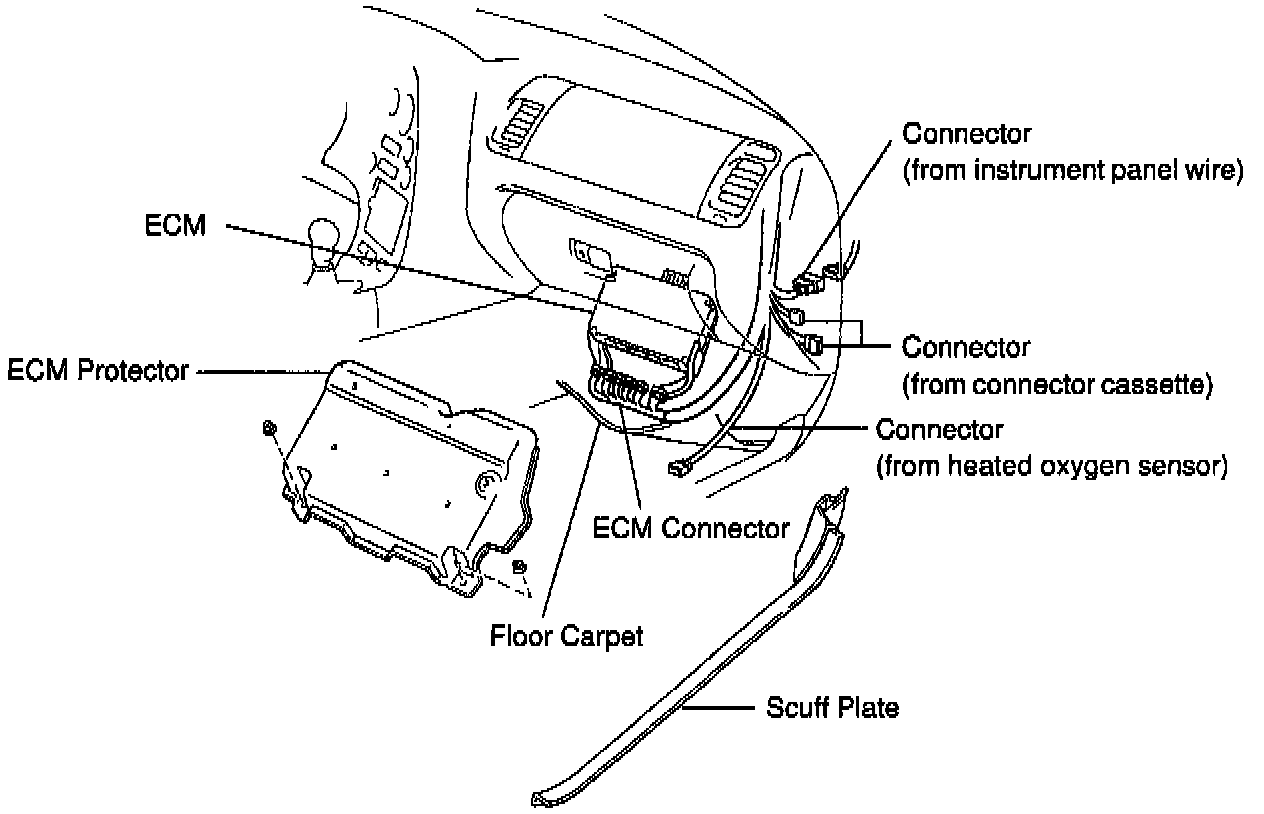

ECM CONNECTOR LOCATION

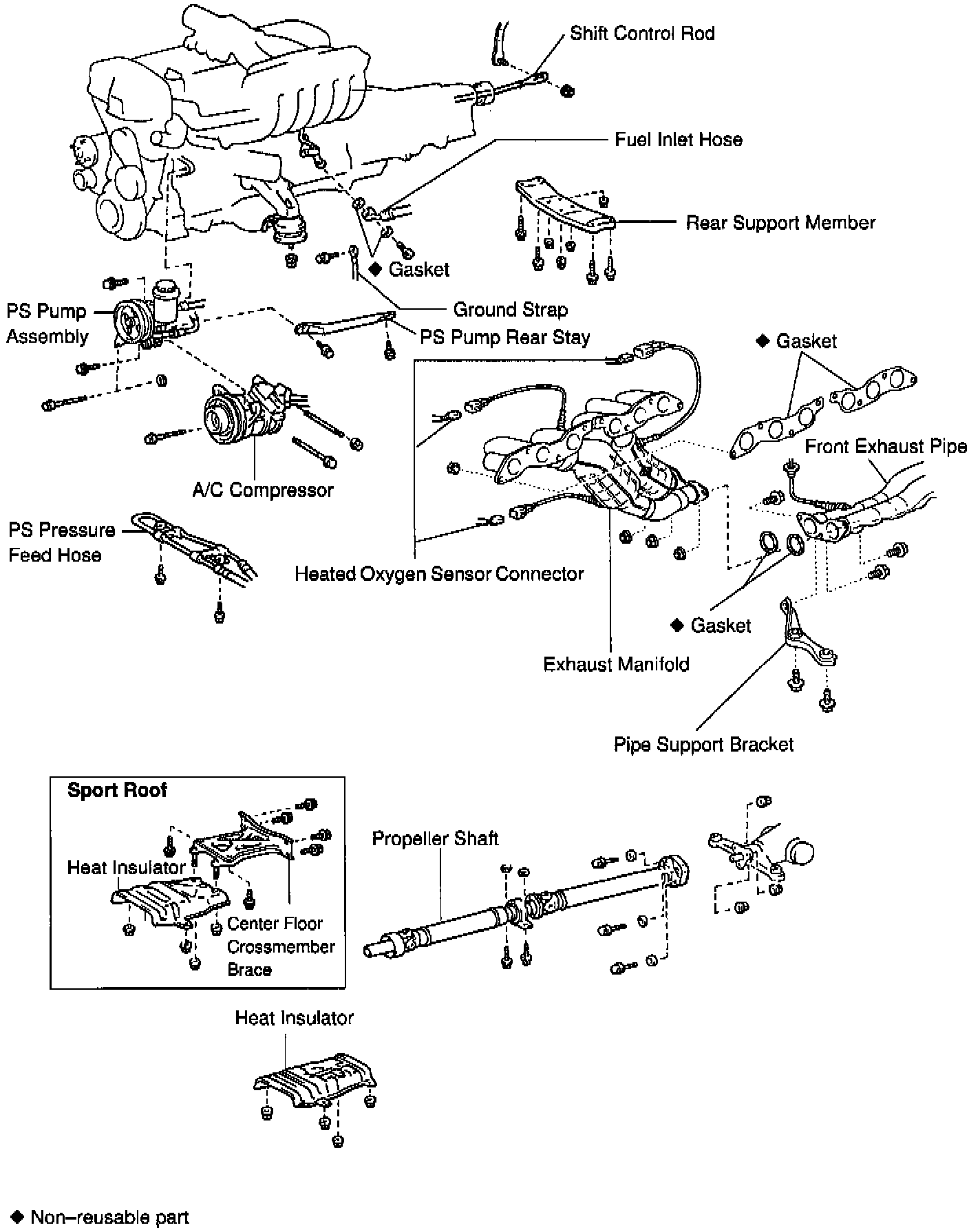

ENGINE ASSEMBLY AND EXHAUST MANIFOLD
