Control Assembly: Service and Repair

REMOVAL
1. REMOVE CENTER CLUSTER PANEL

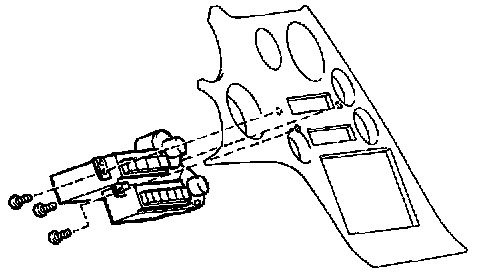

2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
a. Disconnect the connector.
b. Remove the 3 screws and air conditioning control assembly.

INSTALLATION
Installation is in the reverse order of removal.
