D/F Technical Data

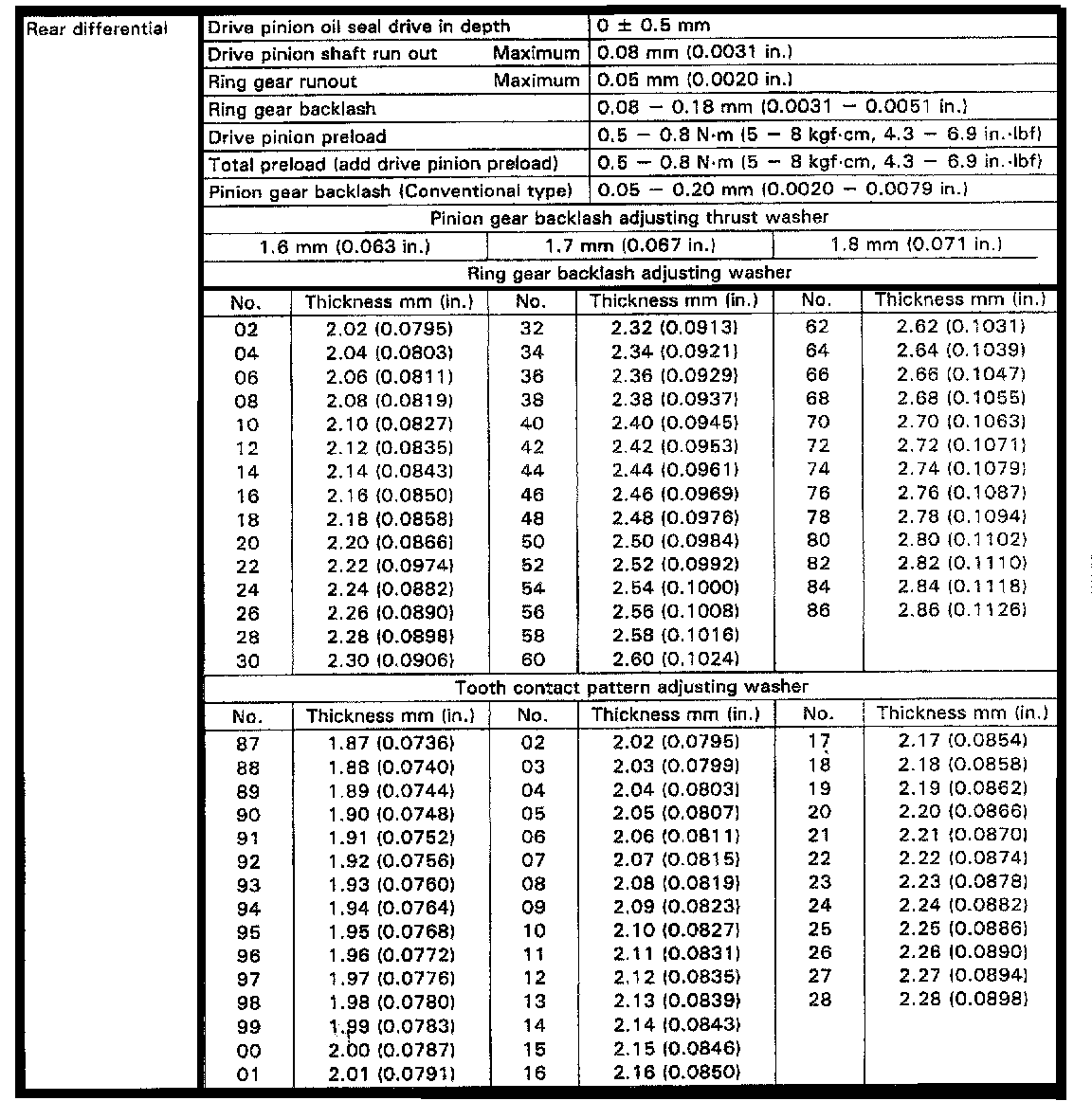

Rear Differential, Carrier (except 2JZ-GTE M/T):

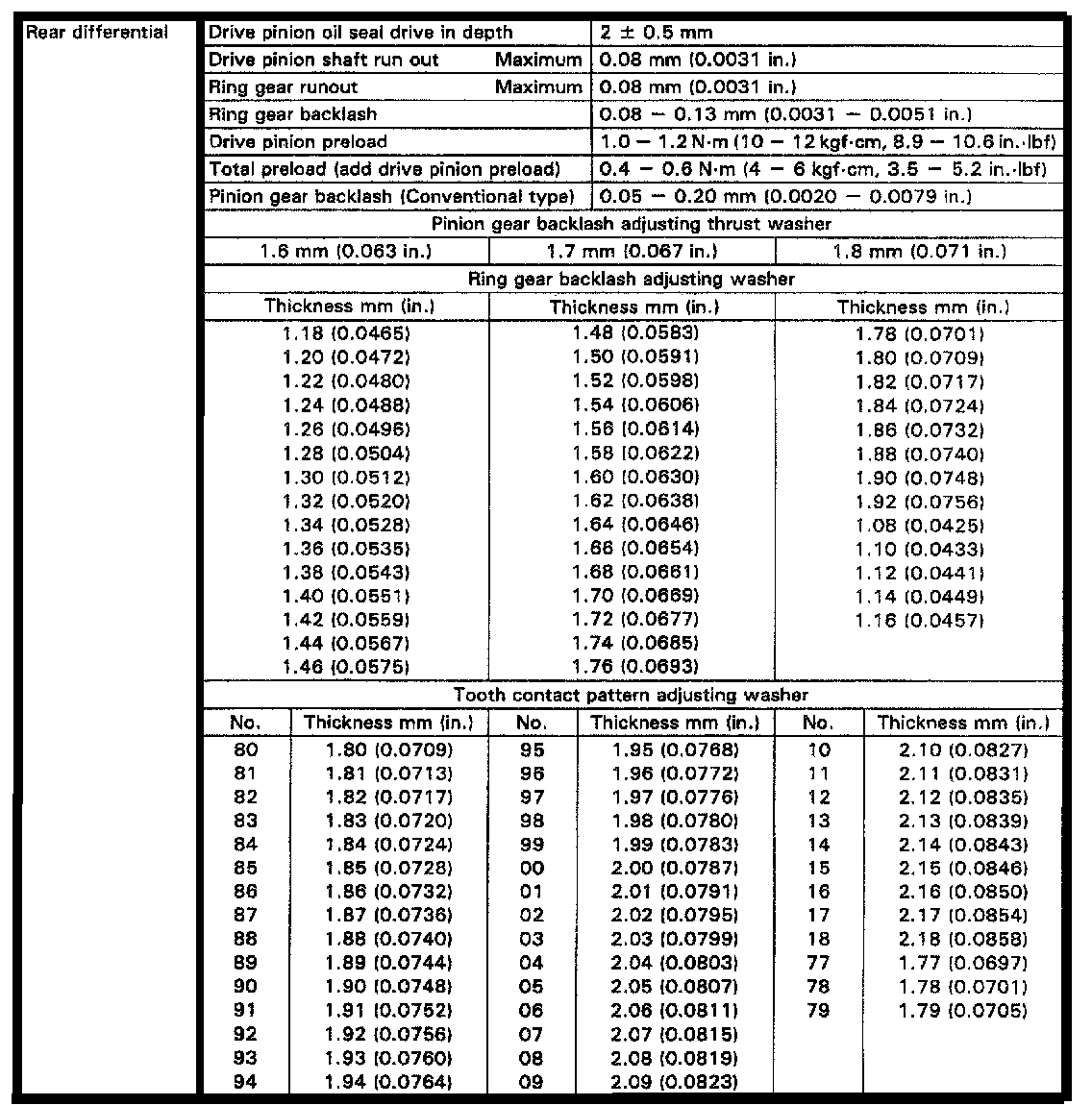

Rear Differential, Carrier (2JZ-GTE M/T):
