Clearing Trouble Codes

CLEARING THE DTC

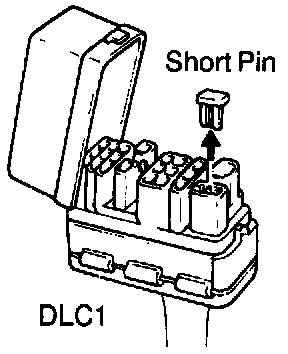

(1) Using SST connect terminals Tc and E1 of DLC1 and remove the short pin from DLC1.
SST 9843-18020
(2) IG switch ON.





(3) Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
(4) Check that the warning light shows the normal code.
(5) Remove the SST from the terminals of DLC1.
SST 09843-18020





(6) Connect the short pin to DLC1.
