General Torque Specifications

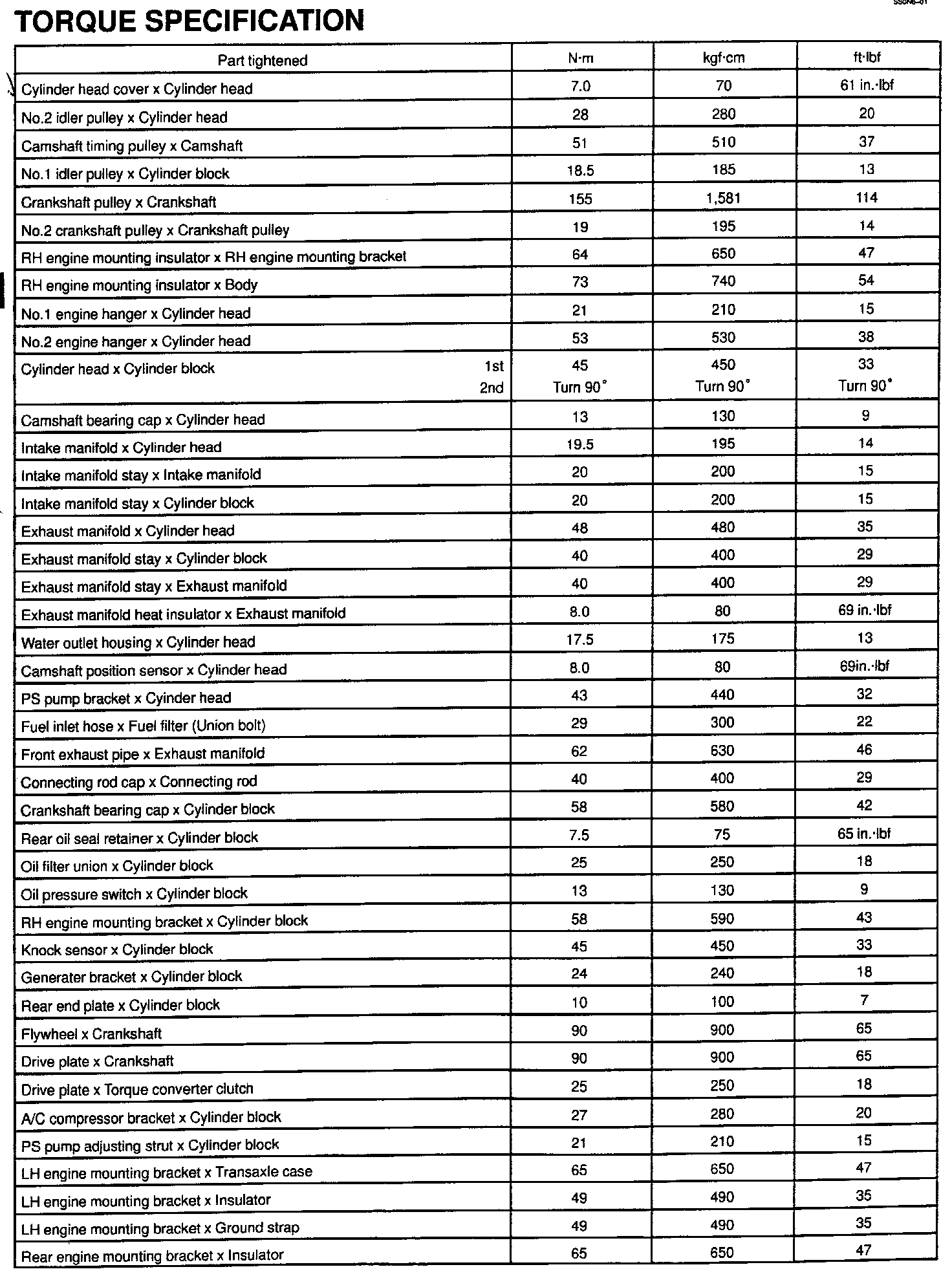

TORQUE CHART








TORQUE SEQUENCES

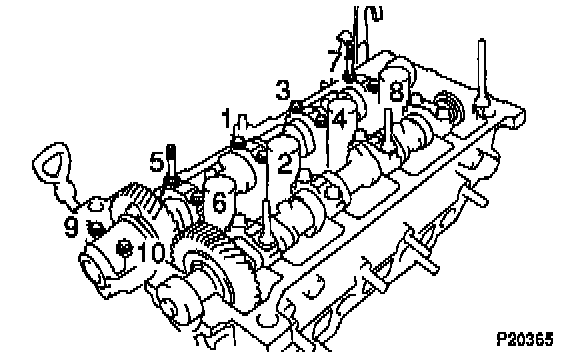

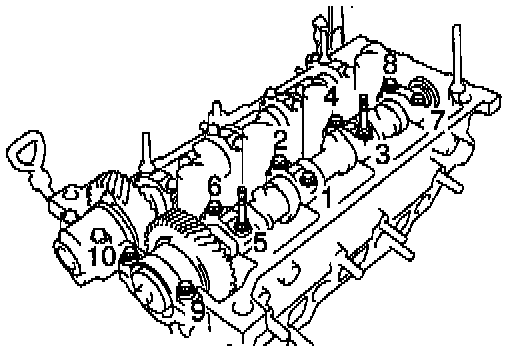

Exhaust Camshaft Bearing Cap Removal Sequence:

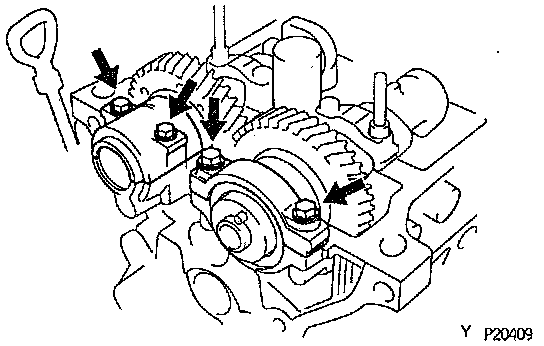

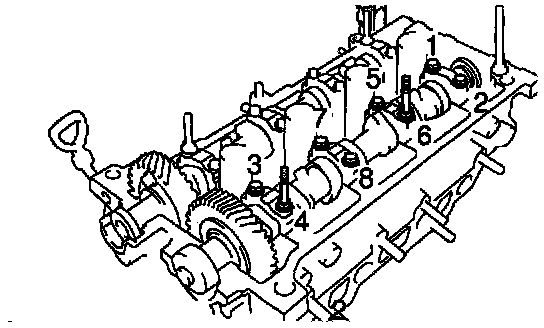

Intake Camshaft Bearing Cap Removal Sequence:

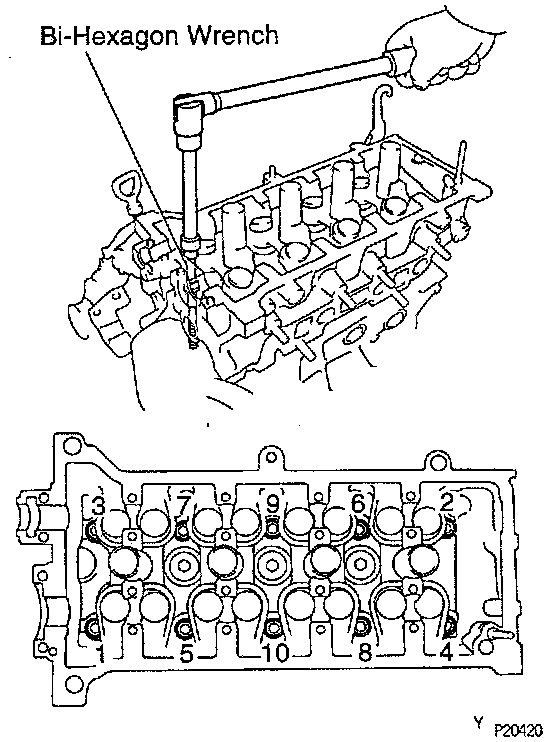

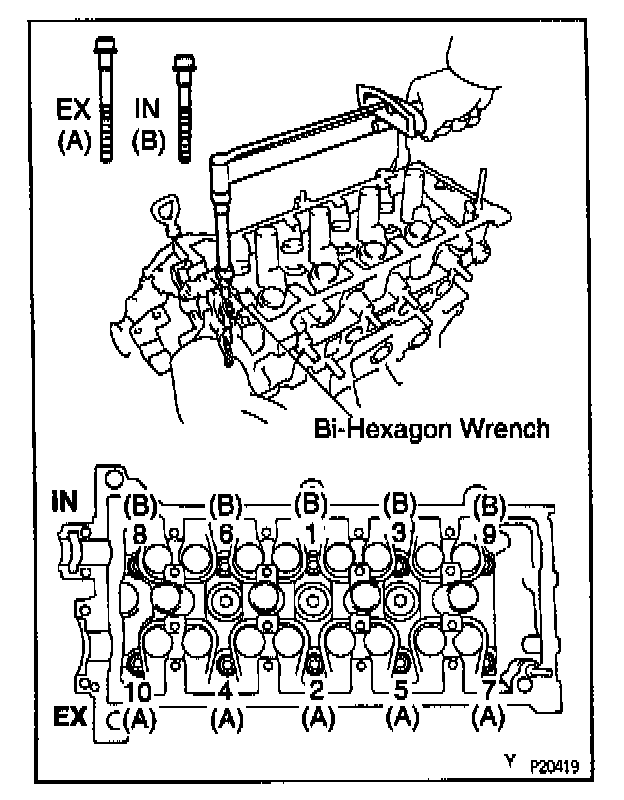

Cylinder Head Bolts Torque Sequence:

Intake Camshaft Bearing Cap Tightening Sequence:

Exhaust Camshaft Bearing Cap Tightening Sequence:

Note: Refer to Cylinder Head; Service and Repair for details of camshaft installation procedures.













See also: Refer to Diagrams/Exploded Views at component level.
