Headlight Relay Circuit

CIRCUIT DESCRIPTION
When the panic signal is received, the control of the headlight relay is performed.

WIRING DIAGRAM

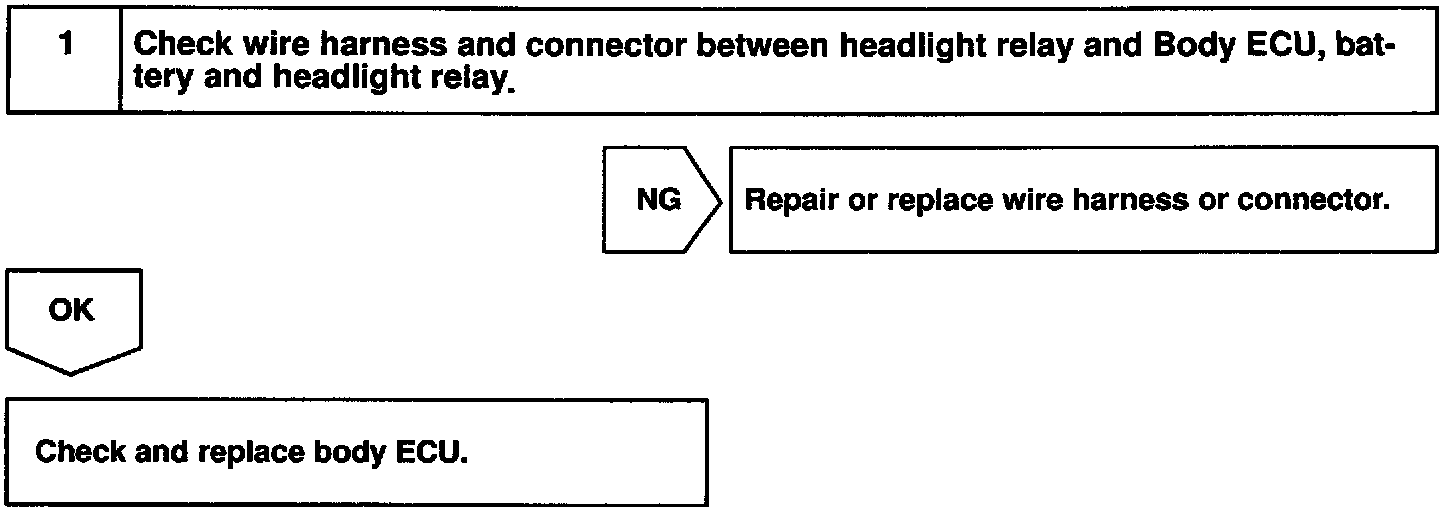

Step 1:

INSPECTION PROCEDURE
