Home >> Toyota >> 1999 >> 4 Runner 2WD L4-2.7L (3RZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Gear

Steering Gear





POWER STEERING GEAR ASSEMBLY AND RELATED COMPONENTS

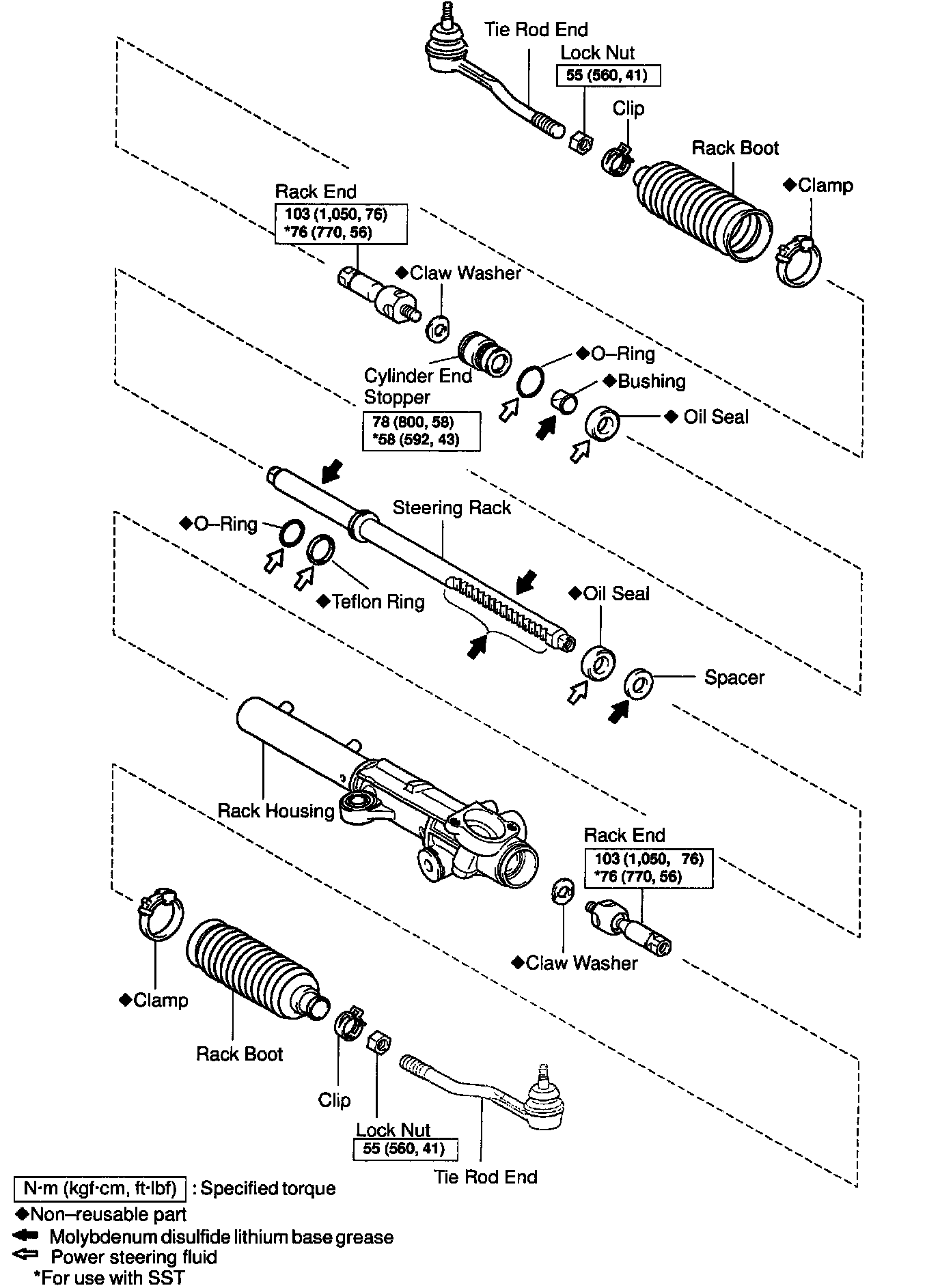

RACK HOUSING, STEERING RACK AND RACK ENDS





CONTROL VALVE ASSEMBLY AND RELATED COMPONENTS
