Blower Motor Linear Controller (Auto A/C)

REMOVAL

REMOVE GLOVE COMPARTMENT PARTS

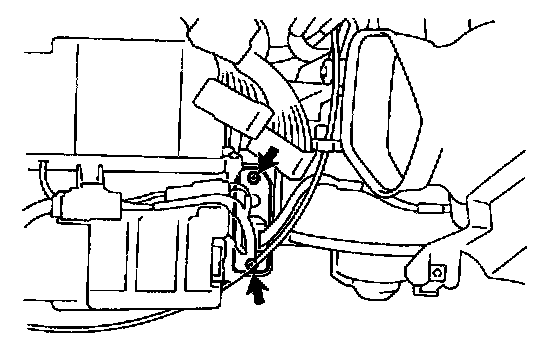

REMOVE BLOWER MOTOR LINEAR CONTROLLER
a. Disconnect the connector.
b. Remove the 2 screws and blower motor linear controller.

INSTALLATION

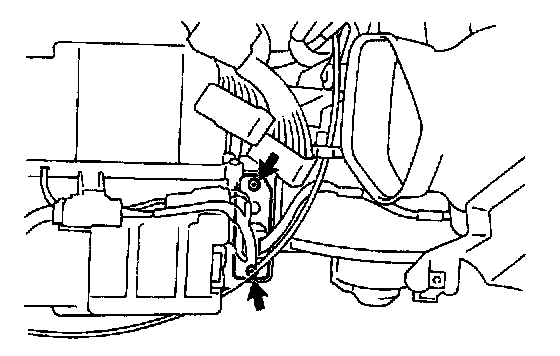

INSTALL BLOWER MOTOR LINEAR CONTROLLER
a. Install the blower motor linear controller with the 2 screws.
b. Connect the connector.

INSTALL GLOVE COMPARTMENT PARTS
