Camshaft Position Sensor: Service and Repair

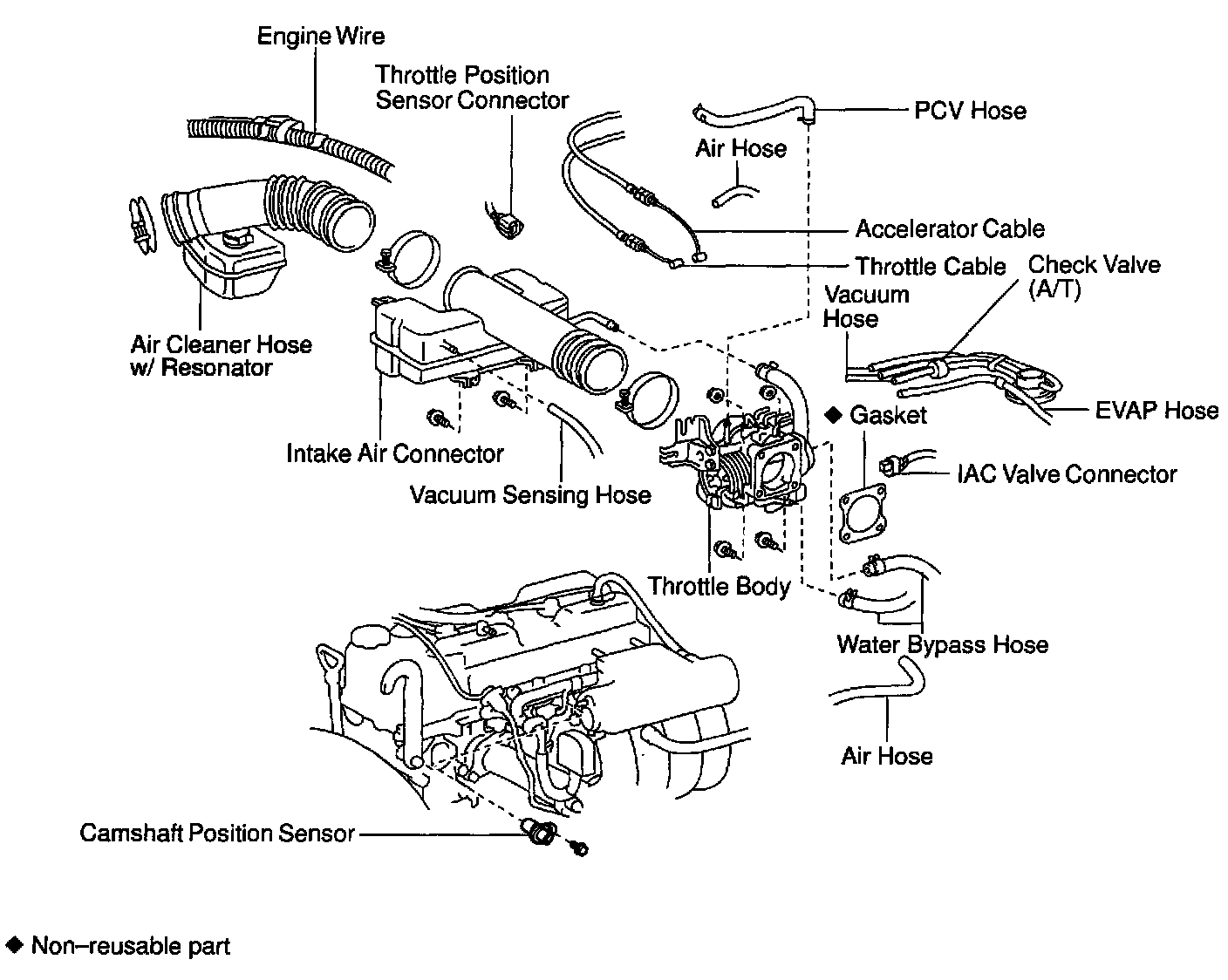

COMPONENTS





REMOVAL
1. REMOVE THROTTLE BODY
2. REMOVE CAMSHAFT POSITION SENSOR

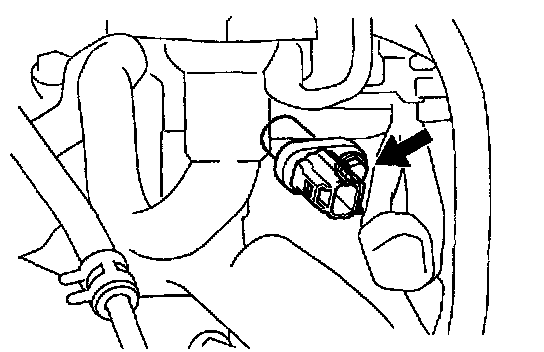

a. Disconnect the camshaft position sensor connector.
b. Remove the bolts and camshaft position sensor.

Torque: 5.4 Nm (55 kgf.cm, 48 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
