Key Unlock Warning Switch Circuit
CIRCUIT DESCRIPTIONThe key unlock warning switch goes on when the ignition key is inserted in the key cylinder and goes off when the ignition key is removed.

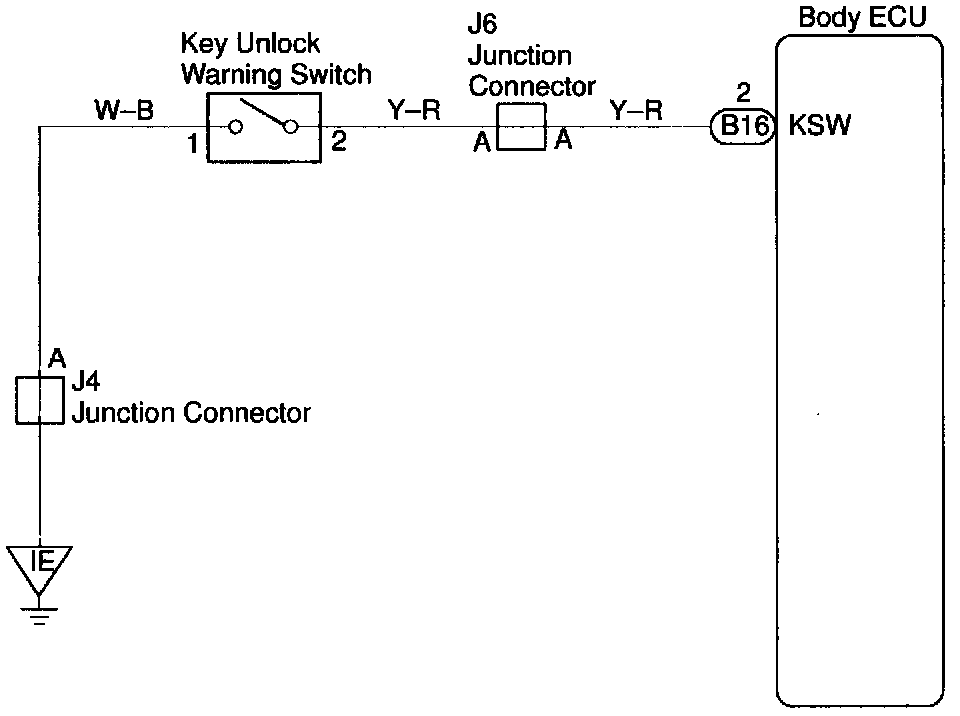

WIRING DIAGRAM

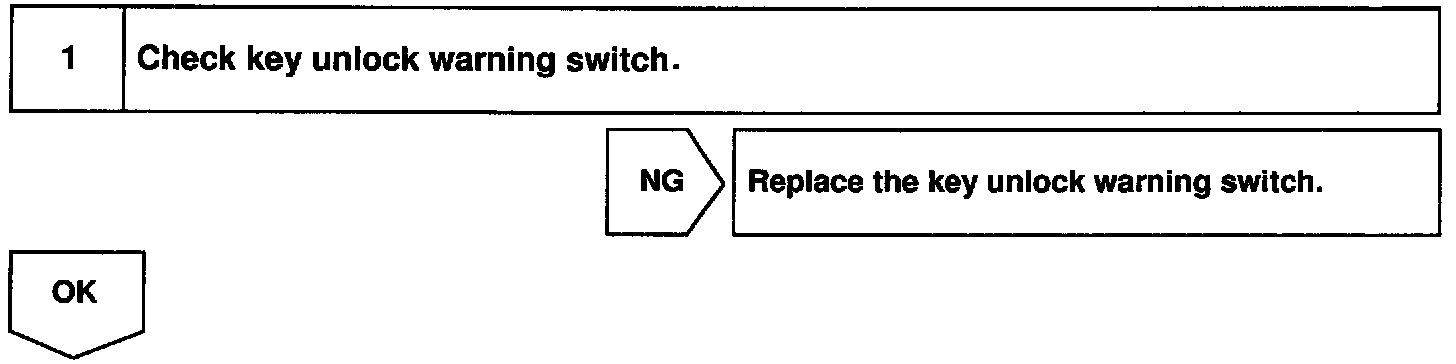

Step 1:

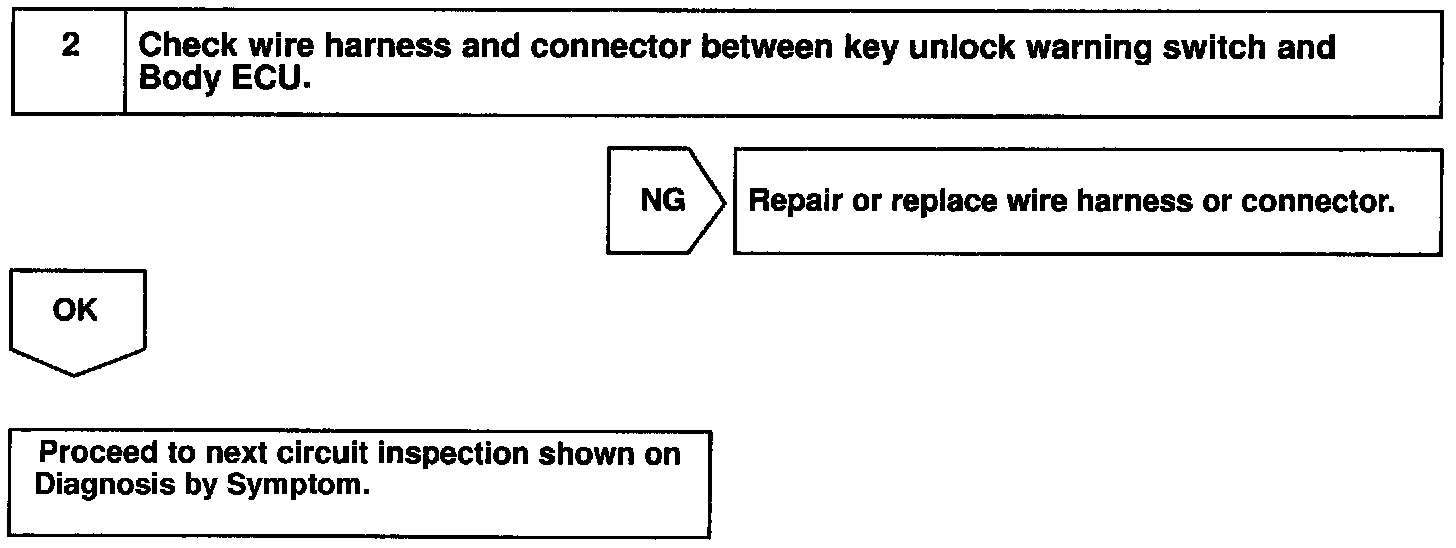

Step 2:
INSPECTION PROCEDURE
The key unlock warning switch goes on when the ignition key is inserted in the key cylinder and goes off when the ignition key is removed.
WIRING DIAGRAM
INSPECTION PROCEDURE
